Hikvision 2 Mpx 2.8 Mm Ahd Dome Video Surveillance Camera

Hikvision Hiwatch series dome camera sku. HWT-T220-M 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), 2 Megapixel FULL HD 1080p resolution, 2.8mm fixed lens (103° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, DWDR digital, 2D-DNR, brightness, sharpness, mirror. During transmission there is no delay and the original high quality image is maintained. The change of the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for about 5 s.

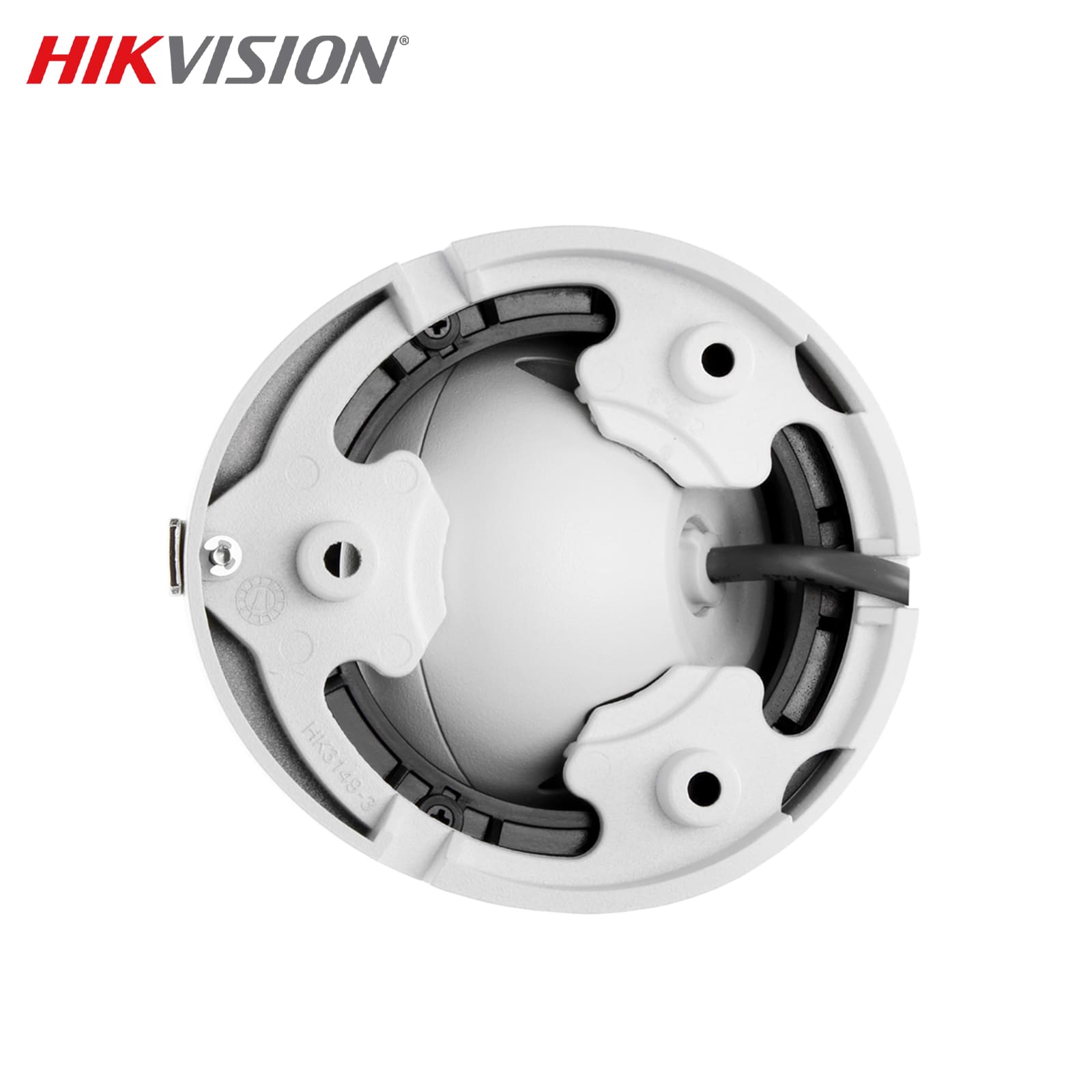

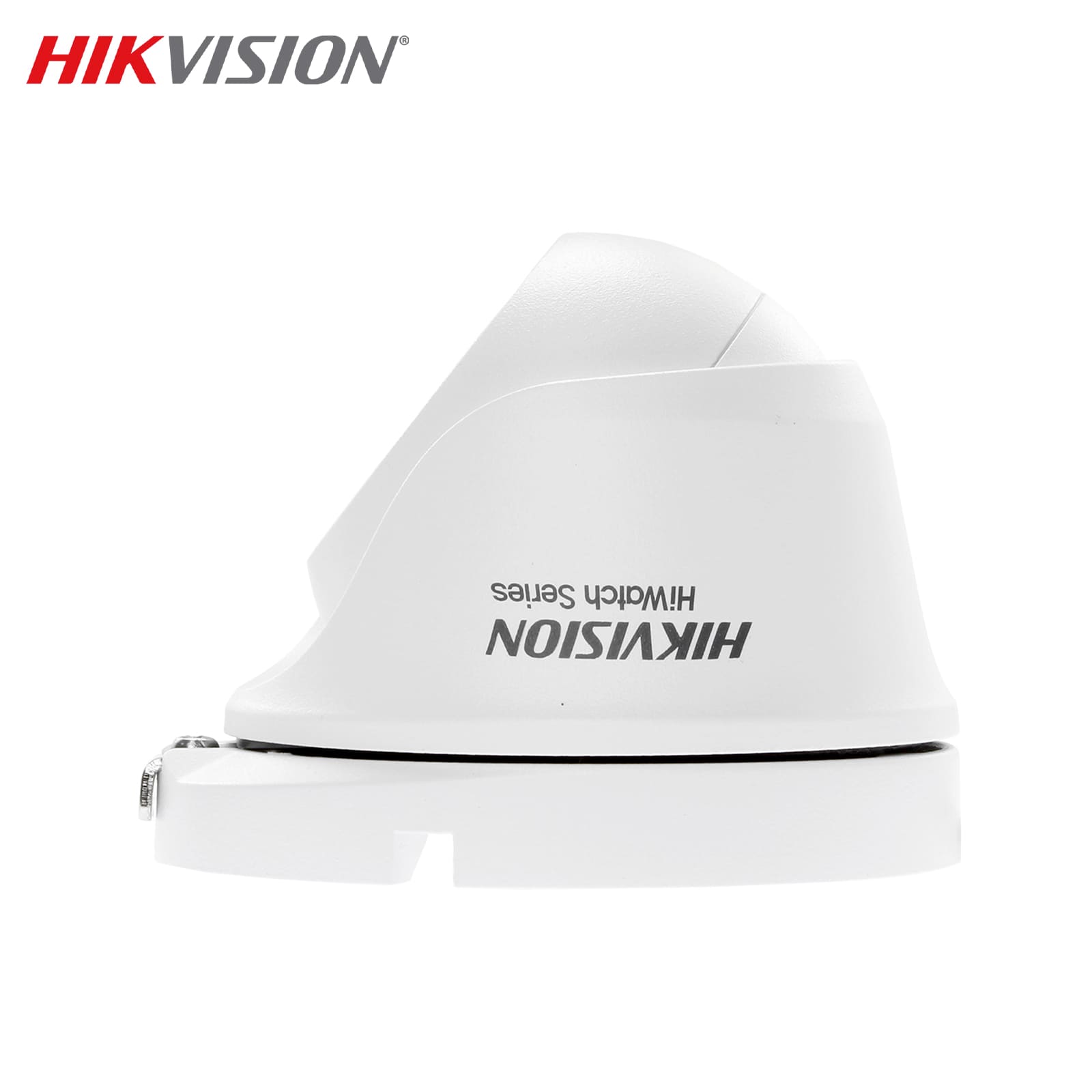

Dome camera with a white metal structure, installable indoors or outdoors (Waterproof IP66) with infrared illuminator with REAL range up to 40M of night vision. The dome shape makes the product installable on the ceiling or wall.

Main features:

• 2 Mpx high-performance CMOS
• FULL HD 1080p resolution (1920x1080p).
• 2.8mm fixed optics - EXIR 2.0, smart IR, up to 40m IR distance
• OSD menu,ATW, AWB, AGC, BLC, WDR digital, 2D-DNR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP66 resistance grade.
• DC12V power supply.
• IMAGE SENSOR 2 Mpx high-performance CMOS
• RESOLUTION 1920 (H) × 1080 (V)
• MIN. ILLUMINATION Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
• SHUTTER TIME PAL: 1/25 s to 1/50, 000 s
• NTSC: 1/30 s to 1/50,000 s
• OPTIC 2.8 mm
• HORIZONTAL FIELD OF VIEW 103°
• M12 OBJECTIVE
• DAY & NIGHT IR cut filter
• SYNCHRONIZATION Internal synchronization
• PAL FRAME RATE: 1080p@25fps
• NTSC: 1080p@30fps
• AGC Support
• D/N MODE Auto/Color/BW (Black and White)
• WHITE BALANCE ATW/AWB
• BLC Support
• DWDR (DIGITAL WIDE DYNAMIC RANGE) Support
• LANGUAGE English
• FUNCTIONS Brightness, Sharpness, DNR, Mirror, Smart IR
• VIDEO OUTPUT 1 HD analog output
• SWITCH BUTTON TVI/AHD/CVI/CVBS
• OPERATING CONDITIONS -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• POWER SUPPLY 12 VDC ±15%
• POWER CONSUMPTION Max. 4W
• IP66 PROTECTION RATING
• MATERIAL Metal
• IR RANGE up to 40M
• COMMUNICATION Up the coax, Protocol: HIKVISION-C (TVI output)
• DIMENSIONS Ø 127.92 mm × 102.26 mm (Ø 5.04" × 4.03")
• WEIGHT 450g
• NAME Hikvision HWT-T220-M Hiwatch series dome camera 4in1 TVI/AHD/CVI/CVBS hd 1080p 2Mpx 2.8mm osd IP66
• SKU HWT-T220-M
• EAN 6954273663391
• SHIPPING Shipping 24/48H
• WARRANTY 2 year warranty
• CAMERA RESOLUTION 2 mpx
• Fixed OPTICS
• CAMERA TYPE dome
• HYBRID TECHNOLOGY
• POC No
• STARLIGHT TECHNOLOGY No
