Hikvision Ip Poe 2 Mpx Motorized Varifocal Camera

Hikvision Hiwatch series digital dome IP camera sku. HWI-T621H-Z , 2.0 Megapixel FULL HD 1080p resolution, 2.8~12mm varifocal motozoom (motorized) lens (98°~34° viewing angle) with autofocus and PoE power supply technology. The motorized lens allows you to remotely adjust the focal length of the lens of 2.8~12mm with automatic management of the focus (autofocus) of the video recording images.

OSD menu with adjustable functions: ATW, AWB, AGC, BLC, D-WDR digital, 3D-DNR, brightness, sharpness, mirror. It is very easy to use through the Internet Explorer browser and allows convenient remote control and management of the camera. The software provided with the camera is designed for integrated management and surveillance of multiple network cameras.

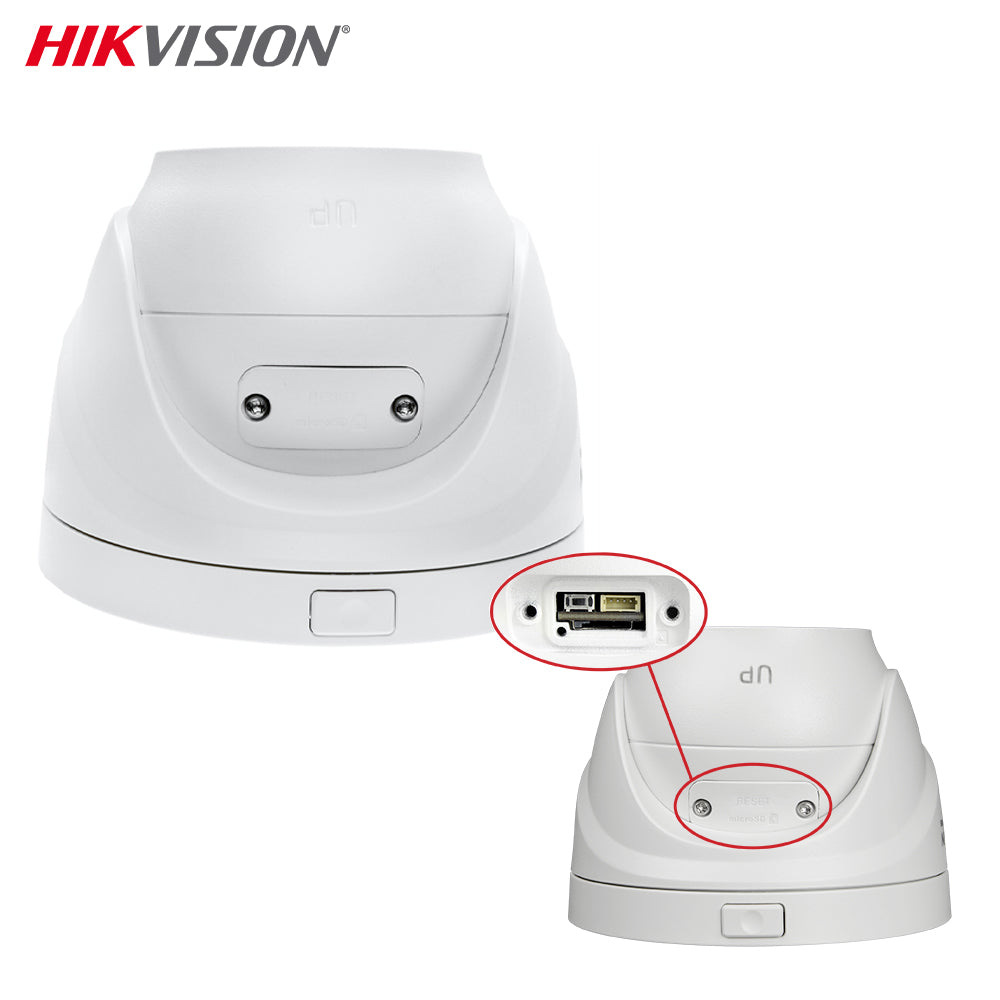

Dome camera with a white metal structure, installable indoors or outdoors (Waterproof IP67) with infrared illuminator with a real range of up to 30 meters of night vision. The dome shape makes the product installable on the ceiling or wall.

Main features

• 1/2.7” CMOS progressive scan 2 Megapixel sensor
• H.265+/H.265/H.264+/H.264 video compression
• Max. 25/30fps@2M(1920×1080),
• D-WDR digital, Day/Night(ICR), 3D-DNR, Mirror, AWB,AGC,BLC
• PoE power technology (power and video over network cable)

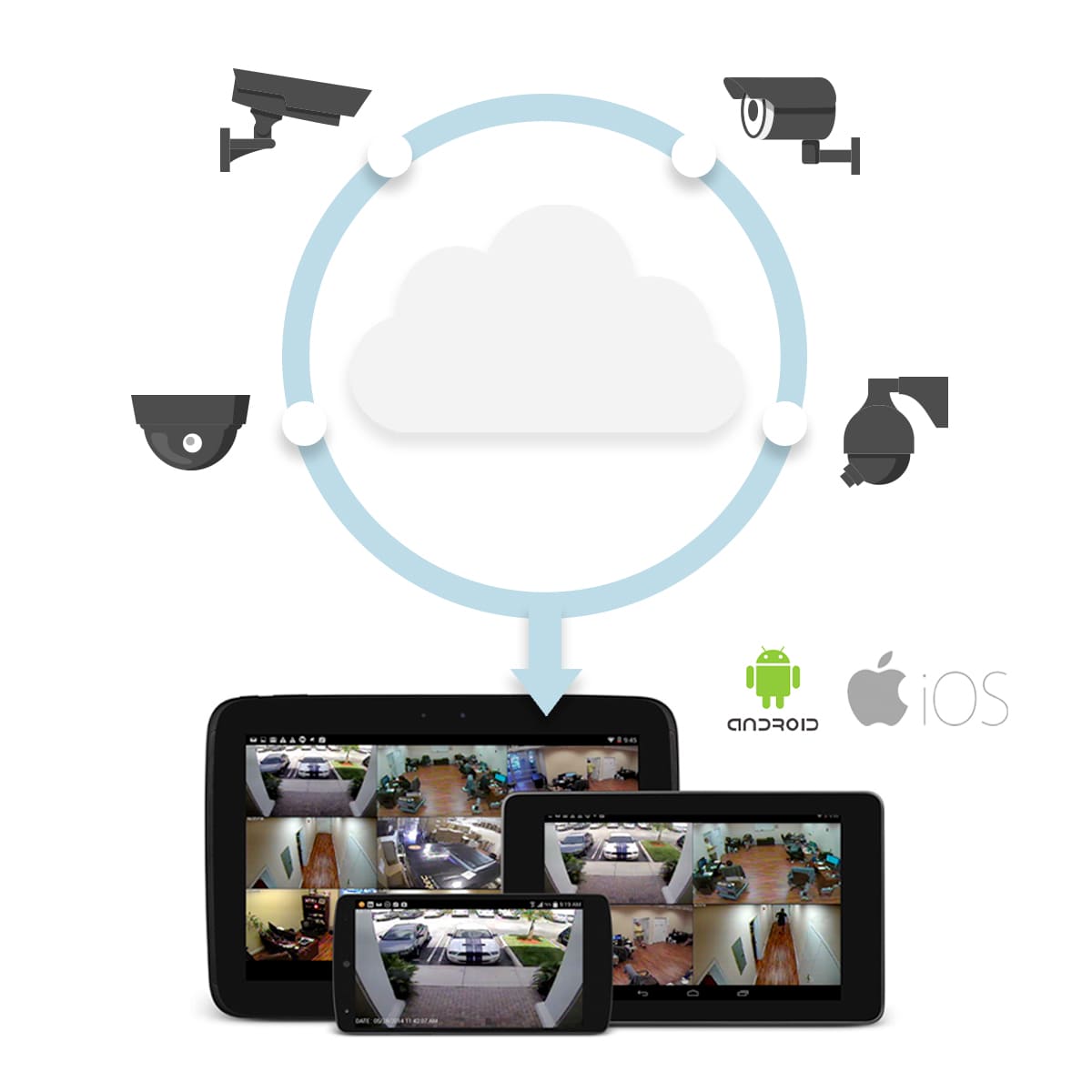

• Remote multiple access: Web viewer, IVMS-4500, HIK-Connect
• 2.8~12mm motorized varifocal lens - EXIR IR LEDs, distance: 30m
• Micro SD memory slot - Support for Micro SD cards up to 128GB (local recording possible).
• ONVIF Compatibility Protocol
• Protections: Waterproof IP67
• Reset button

Technical specifications

Room

• Image Sensor: 1/2.7" progressive scan CMOS
• Minimum Illumination: Color: 0.01 Lux @ (F1.2, AGC ON), 0.02 Lux @ (F1.6, AGC ON)
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Yes
• Auto Iris: No
• Day & Night: IR cut filter
• Noise Reduction: 3D DNR
• WDR: DWDR
• Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

• Varifocal Lens: 2.8~12mm
• Aperture: F1.6
• Field of View (FOV): Horizontal 107.5° to 33.2°, Vertical 57.5° to 18.8°, Diagonal 130° to 38°

IR

• IR Range: Up to 30m
• Wavelength: 850nm

Compression

• Video compression: Main stream: H.265/H.264; Sub Stream: H.265/H.264/MJPEG
• H264: Baseline Profile/Main Profile/High Profile
• H.264+: Support Main Stream
• H.265: Main Profile
• H.265+: Support Main Stream
• Video Bit Rate: 32Kbps to 8Mbps


• Resolution: 2MP
• Main Stream Max. Frame Rate: 50Hz: 25fps (1920×1280, 1280×960, 1280×720); 60Hz:30fps (1920×1280, 1280×960, 1280×720)
• Sub-stream Max. Frame Rate: 50Hz: 25fps (640×480, 640×360, 320×240); 60Hz: 30fps (640×480, 640×360, 320×240)
• Image enhancement: BLC, 3D DNR
• Basic functions: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable from client software or web browser
• Day/Night: Auto, Scheduled, Day, Night

Network

• Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, illegal access, HDD error, HDD full
• Network Storage: Support microSD/SDHC/SDXC card (128G), built-in local storage and NAS (NFS, SMB/CIFS), ANR
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• Main functions: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• API: ONVIF (PROFILE S, PROFILE G), ISAPI
• Simultaneous Live View: Up to 6 channels
• User / Host: Up to 32 users; 3 levels: Administrator, Operator and User
• Client: iVMS-4200, Hik-Connect
• Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51

Interface

• Communication: 1 RJ45 10M/100M self-adaptive Ethernet port
• Built-in Memory: microSD / SDHC / SDXC slot, up to 128 GB (Card not included)
• Reset button: Yes

General

• Working conditions: -30 °C to 60 °C, humidity: 95% or less (non-condensing)
• Power supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)
• Consumption: 12 VDC, 0.9 A, Max: 10.5 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12 W
• Protection index: IP67
• Materials: Metal body; Plastic base
• Dimensions: Ø 129.4 mm × 116.4 mm
• Weight: (camera only) approx. 560g
