Hikvision Ahd 2 Mpx 4 In 1 2.8 Mm Ip 66 External Camera

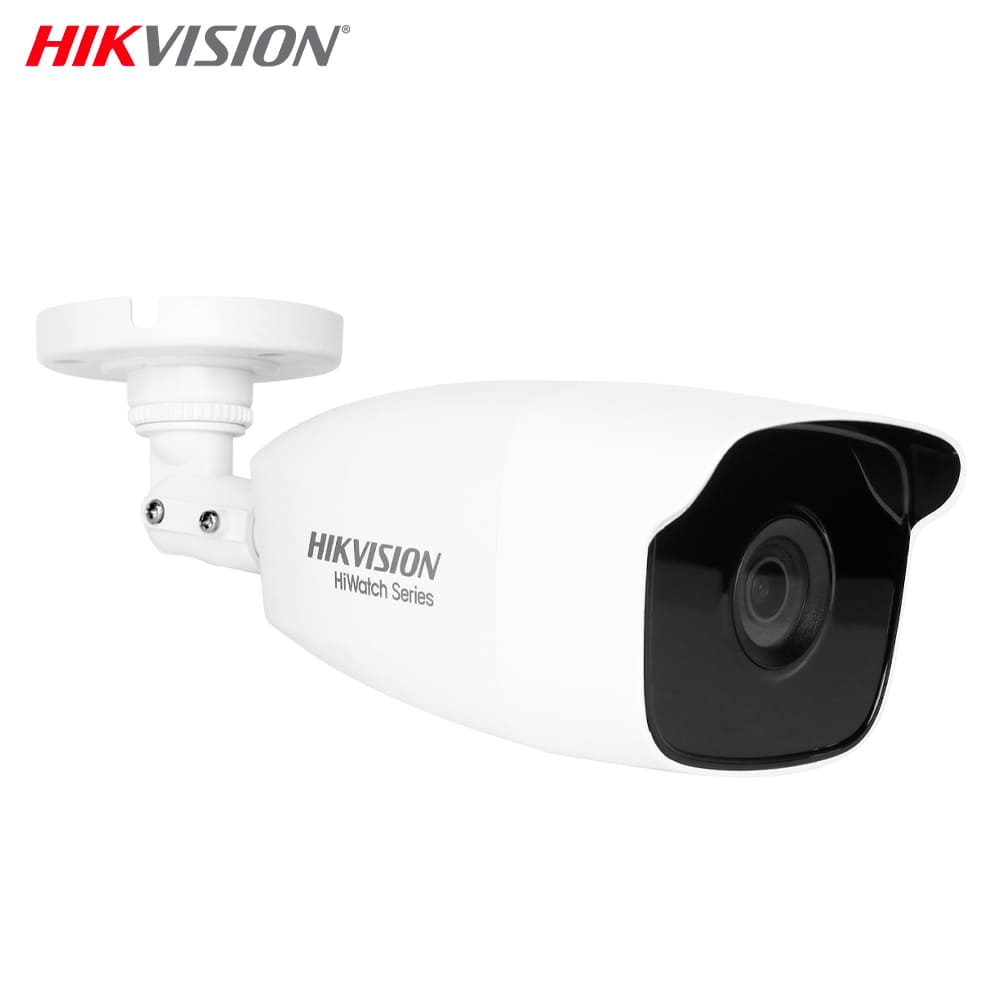

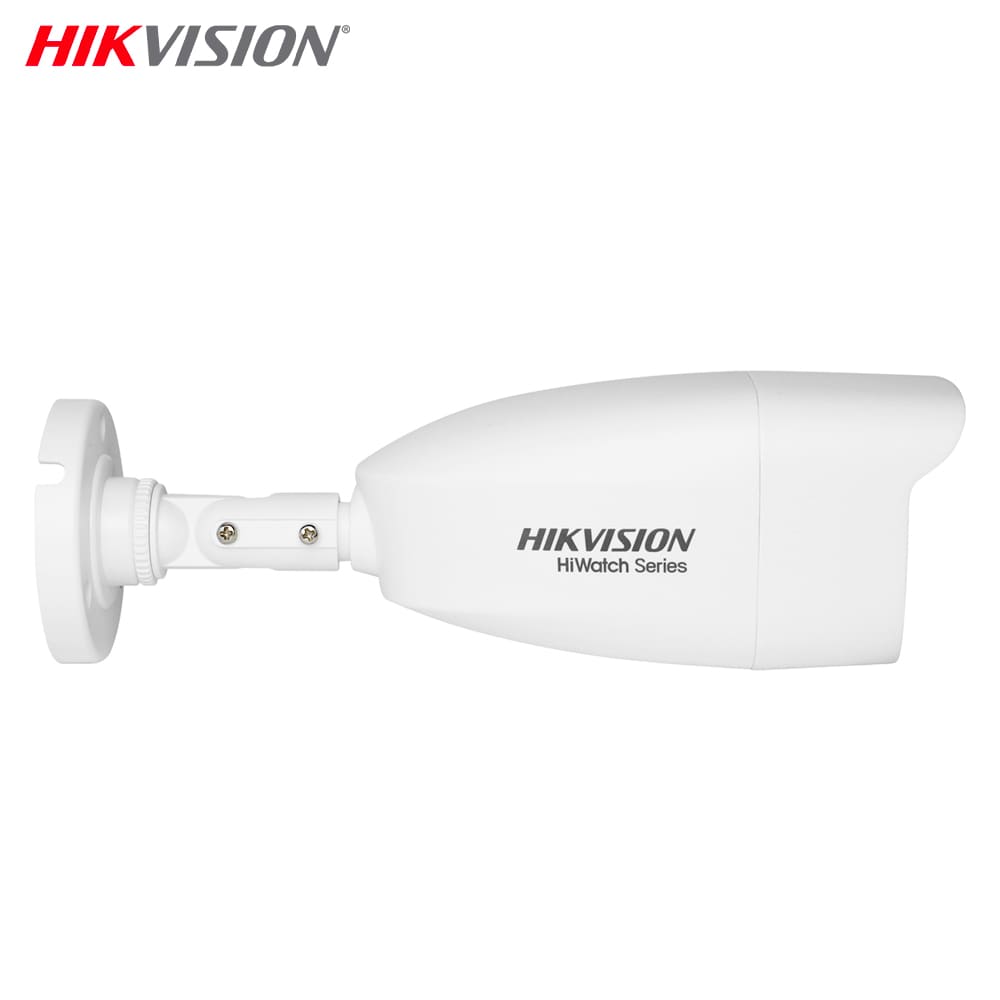

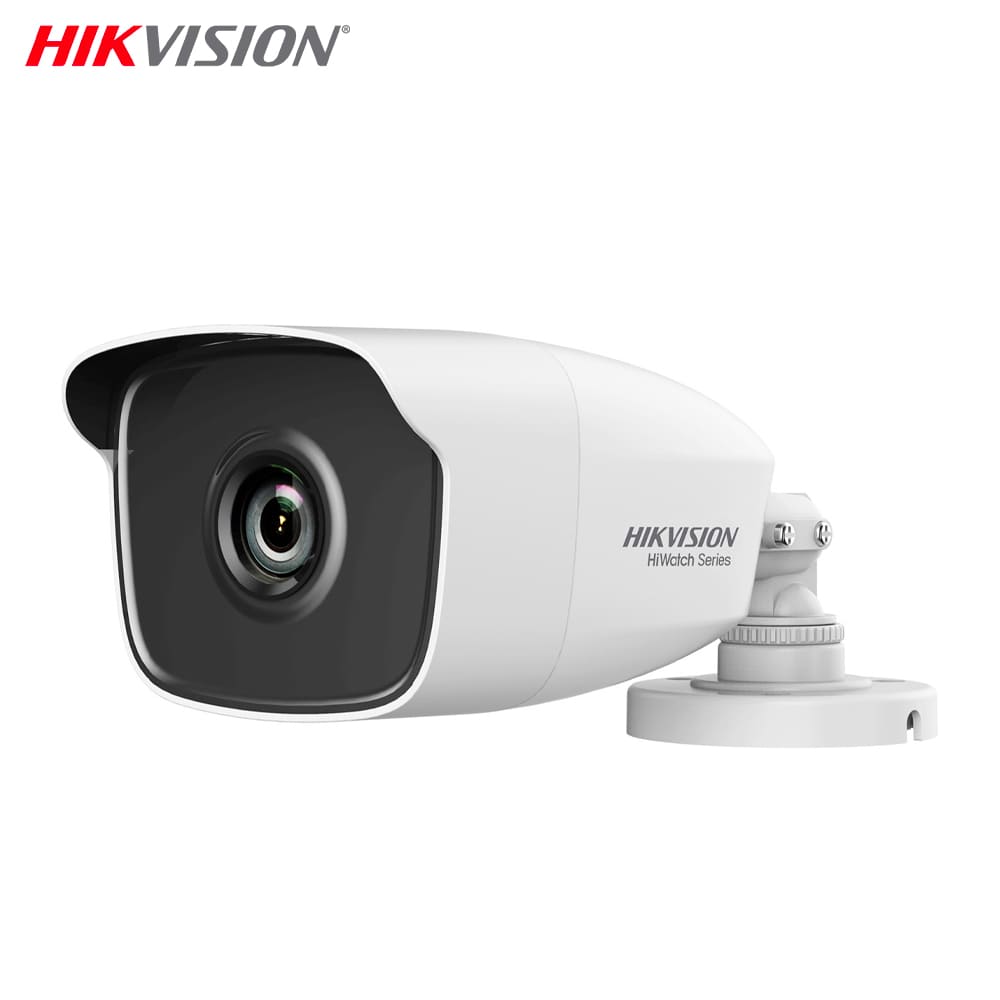

Hikvision Hiwatch series bullet camera sku. HWT-B220-M 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), 2 Megapixel Full HD 1080p resolution, 2.8mm fixed lens (100.2° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, DWDR digital, 2D-DNR (from DVR), brightness, sharpness, mirror. There is no delay during transmission and the original high quality image is maintained. Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for about 5 s.

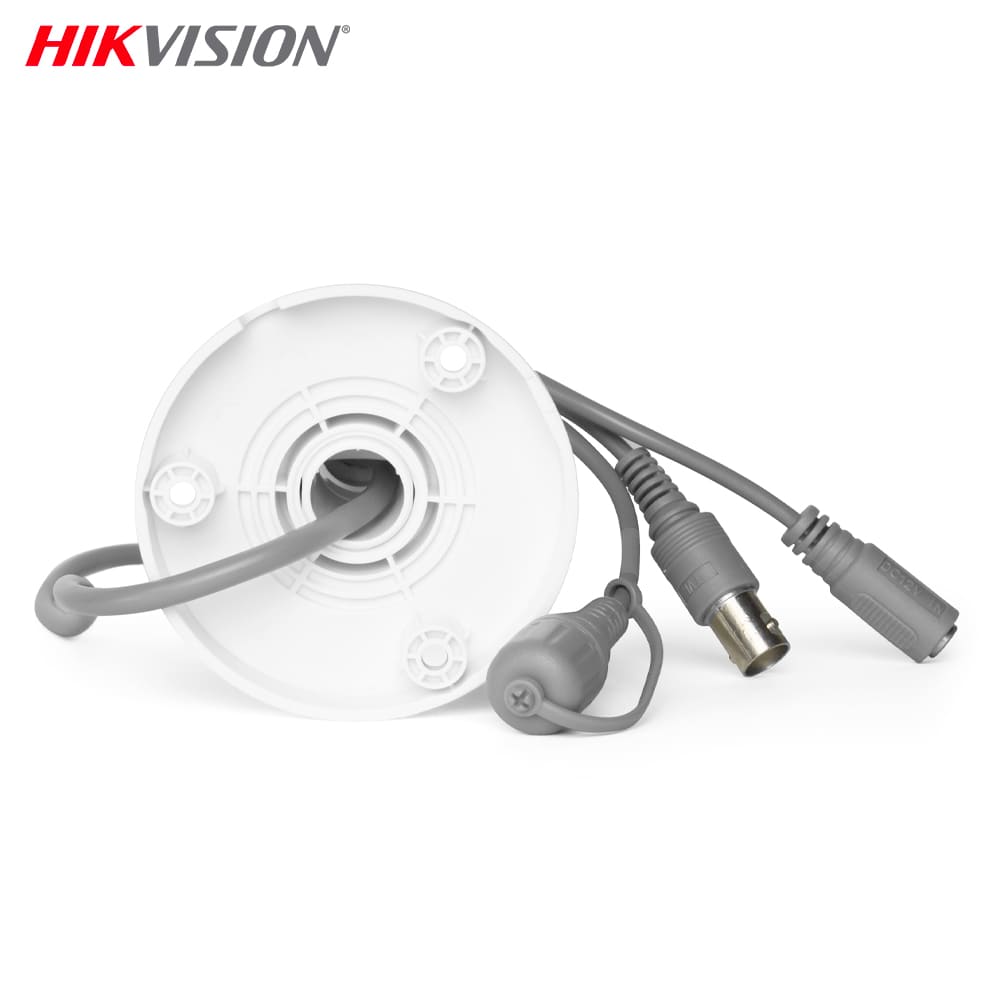

The integrated 3-Axis camera mount can be adjusted in three planes and allows the camera to be rotated in any direction. The camera meets the IP66 protection class.

Main features

• Hikvision Bullet Camera
• 2.8mm lens
• 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
• 2 Mpx High Performance CMOS
• EXIR 2.0 IR Distance 40m
• Remote OSD menu from DVR
• HD 1080P (1920x1080)
• 0 Lux
• 2DNR | IR CUT
• Suitable for outdoor IP66

Technical specifications

• Hikvision Brand
• HiWatch Series Range
• High Performance CMOS optical sensor
• 1080p HD video output (1920x1080) at 25 FPS
• Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
• Minimum illumination 0 Lux / EXIR IR (40 m)
• Basic Functions OSD Menu, Day/Night with IR-CUT (ICR)
• Configurable OSD functions DWDR, BLC, HLC, 2D-NR, AWB, AGC, Smart IR
• 2.8mm optics
• Power supply DC 12V / 4W
• Degree of protection Suitable for outdoor use IP66
• Material Plastic
• Operating temp. -40º C ~ +60º C
• Dimensions 230.8 (Fo) x 87.2 (An) x 75.4 (Al) mm
• Weight 415 g
