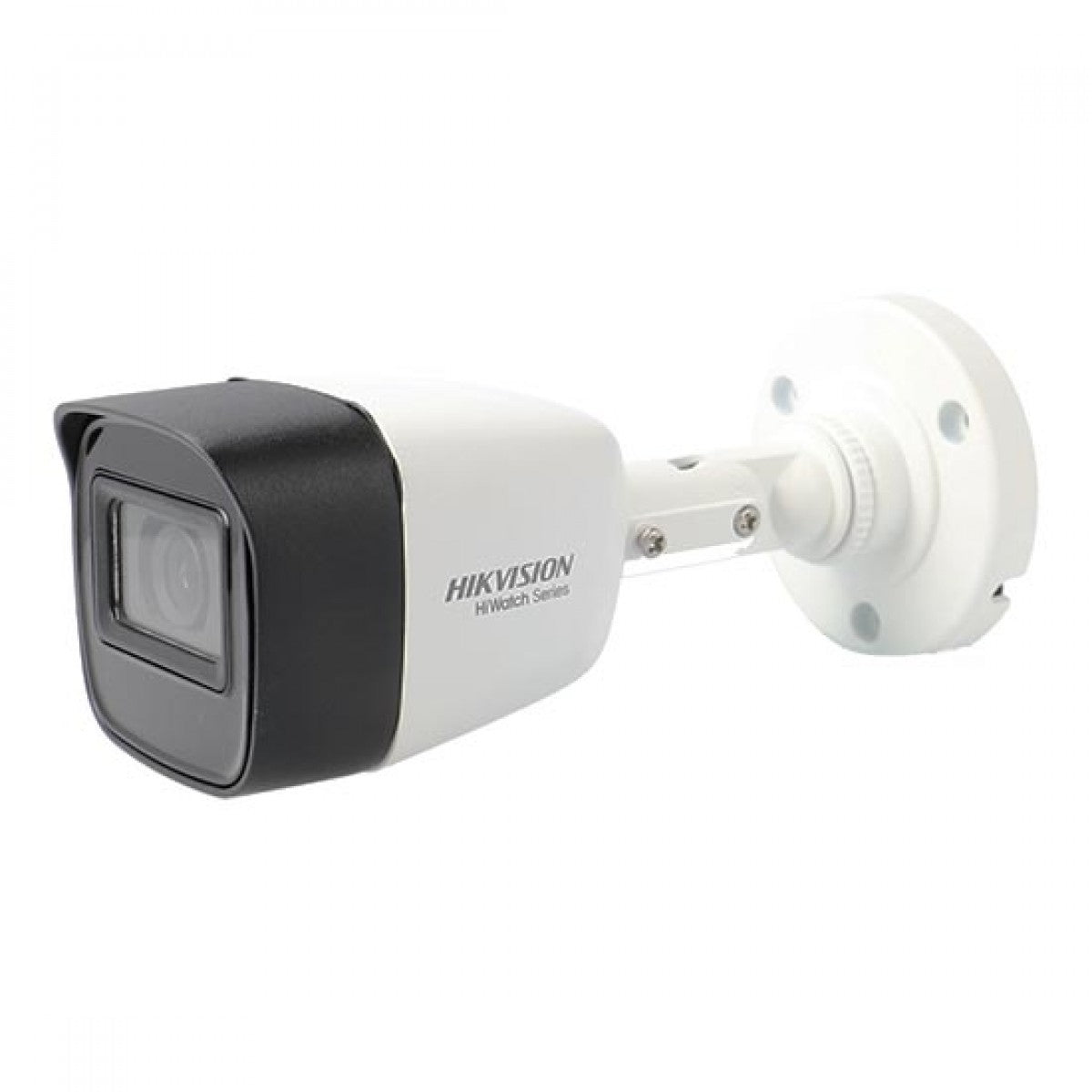

Hikvision 8 Mpx 4K 2.8 Mm Ip 66 Hwt-B181-M Ahd Camera

Hikvision Hiwatch series bullet camera sku. HWT-B181-M 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (*) , 4K resolution 8 Megapixel , 2.8mm fixed lens. OSD menu with adjustable functions: AWB, AGC, BLC, HLC, WDR, 3D-DNR, brightness, sharpness, mirror. During transmission there is no delay and the original high quality image is maintained.

The integrated 3-Axis camera mount can be adjusted in three planes and allows the camera to be rotated in any direction. The camera meets the IP66 protection class.

(*) Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for approximately 5 seconds.

Main features

• 8.29 Mpx Progressive Scan CMOS
• 4K Resolution: 3840 x 2160
• Fixed optics 2.8mm
• EXIR LEDs 2.0, smart IR, distance up to 30 meters
• OSD menu, 3D-DNR, 120dB WDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP66 outdoor resistance grade

Room

• Image Sensor: 8.29 megapixel progressive scan CMOS
• Video Frame Rate: TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps; CVI: 8MP@12.5fps, 8MP@15fps AHD: 8MP@12.5fps, 8MP@15fps CVBS: P/N.
• Effective Pixels: 3840 (H) x 2160 (V)
• Minimum Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Speed: PAL 1/12.5 s to 1/50,000 s; NTSC 1/15 s to 1/50,000 s
• Day & Night: IR Cut Filter
• Pan: 0° to 360°; Tilt: 0° to 180°; Rotation: 0° to 360°
• Synchronization: internal
• Fixed lens: 2.8mm
• Field of View (FOV): 102°
• WDR: 120dB
• IR Range: Up to 30 meters

Menu

• Image Node: STD / HIGH-SAT
• AGC: Yes
• Day & Night: Auto / Color / Black & White
• White Balance: Auto / Manual
• AE (Auto Exposure) Mode: Global / BNC / HLC / WDR
• Noise Reduction: 3D DNR
• Language: English
• Functions: Brightness, Sharpness, 3D DNR, Mirror, Smart IR

Interface

• Video Output: TVI / AHD / CVI / CVBS (switchable)

General

• Working conditions: -40°C to 60°C, humidity: 90% or less (non-condensing)
• Power supply: 12 VDC ± 25%
• Consumption: Max 4.2W
• Communication: HIKVISION-C protocol
• Protection index: IP66
• Materials: metal
• Dimensions: 58mm × 61mm x 158.6mm
• Weight: (camera only) approx. 345g
