Dahua Varifocal Dome Camera 2.7~12Mm Starlight Ip 67

Dahua HAC-HDW1200T-Z camera with 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), FULL HD 1080p resolution at 2 Megapixel, 2.7~12mm motorized varifocal lens and 1/2.7" CMOS sensor, infrared LED array with Smart IR technology, IR illuminator coverage up to 60 meters. OSD menu with adjustable functions and built-in microphone (via coax).

The 4IN1 hybrid technology makes the camera compatible with all analog CCTV video surveillance systems: HD-CVI, HD-TVI,AHD, PAL (960H). Note: by setting the camera to PAL standard, you can obtain recordings with a maximum resolution of 960H (960x480p). The selection or switching of the CCTV standard is done using the Dahua PFM820 UTC controller (not included) or via the camera's OSD menu.

The OSD menu allows you to manage and program various image adjustment functions. The main OSD adjustment functions include: Day/Night(ICR), AWB, AGC, BLC, HLC, 2D-DNR, D-WDR, Privacy Zone, Mirror.

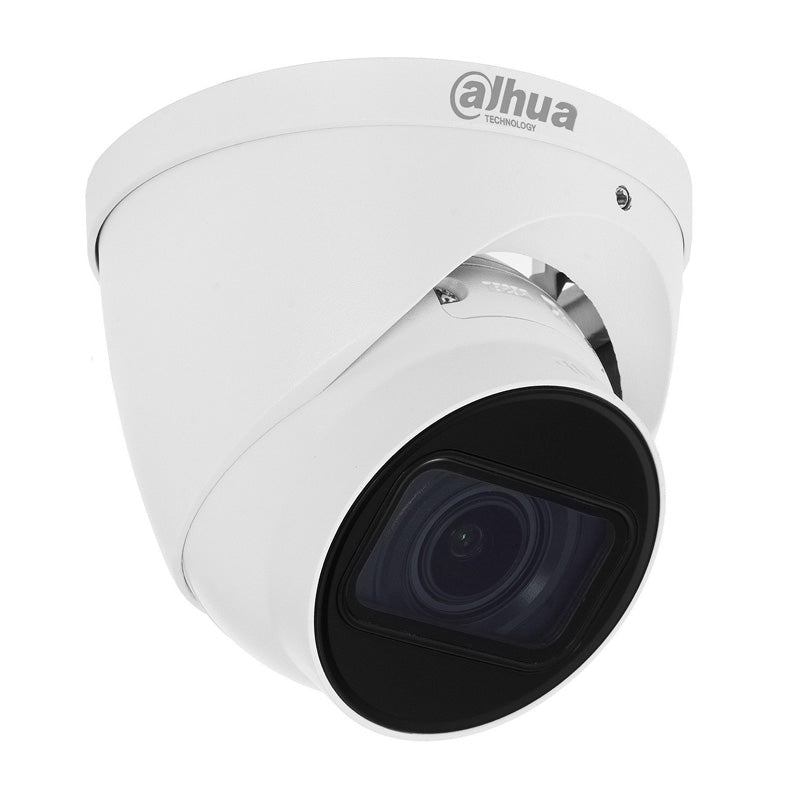

Outdoor dome camera with a white painted metal structure, resistant to atmospheric agents (Waterproof IP67). The dome shape makes the product installable on the ceiling, wall or surface. Above average technological level. Ideal product for applications such as video surveillance and alarm systems for both internal use; developed and designed to sustainably improve the technical standard of video surveillance.

Main Features:

• 1/2.7" 2Mpx Progressive Scan CMOS
• 4IN1 hybrid technology (switchable via PFM820/OSD controls) - HDCVI, HDTVI, AHD, CVBS
• 25/30fps@1080P FULL HD (1920x1080p).
• High Speed, real-time remote transmissions;
• OSD function: Day/Night(ICR), AWB, AGC, BLC, HLC, 2D-DNR, D-WDR, Privacy zone, mirror.
• 2.7~12mm motorized varifocal lens - Max IR distance LEDs (2pcs) length 60m, Smart IR technology.
• LPS (Lightning Protection System) protection system against lightning and surges.
• Metal structure with IP67 Waterproof protection rating
• Built-in Microphone.
• Power supply DC12V
• STANDARD: AHD / HD-CVI / HD-TVI / PAL
• SENSOR: 1/2.7" Progressive Scan CMOS
• SCREEN SIZE:2.0Mpx
• RESOLUTION:
• 1920 x 1080 - 1080p (@25fps),
• 1280 x 720 - 720p(@25fps) ,
• 960 x 576 - PAL
• IR ILLUMINATOR SUPPORT: ICR - Mechanical Infrared Filter
• VIDEO OUTPUT: AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω - switchable via PFM820 controller / OSD
• OSD SCREEN MENU: Yes, OSD menu available via DAHUA recorder
• LENS: 2.7 ... 12 mm - Motozoom
• VIEWING ANGLE:
• Diagonal: 38° - 125°
• Horizontal: 33° –102°
• Vertical: 19° - 53°
• SIGNAL TO NOISE RATIO (S/N):> 65 dB
• IR ILLUMINATION RANGE:60 m
• 0.02Lux/F1.7, 30IRE, 0LUx IR on Smart IR Technology
• IR ILLUMINATOR POWER ADJUSTMENT:Automatic
• SELECTED FEATURES:
• DWDR - Wide Dynamic Range of Illumination
• 2D-DNR - Digital image noise reduction
• BLC - Backlight Compensation
• HLC - High Light Compensation (point)
• ICR - Mechanical Infrared Filter
• AGC - Automatic Image Gain Adjustment
• Auto white balance
• Privacy Zones
• Motion detection
• Mirror - Mirror image
• Sharpness - sharper image edges
• POWER SUPPLY: 12V DC / 680mA
• POWER CONSUMPTION: Max 8.2W (12V DC, IR on)
• CASE: Compact, Metal
• COLOR: White
• PROTECTION RATING: IP67
• OPERATING TEMPERATURE: -30 °C ... +60 °C
• WEIGHT: 0.570 kg
• DIMENSIONS: Φ122 mm×104.8 mm ( Φ4.80"×4.13" )
• MANUFACTURER / BRAND: DAHUA
