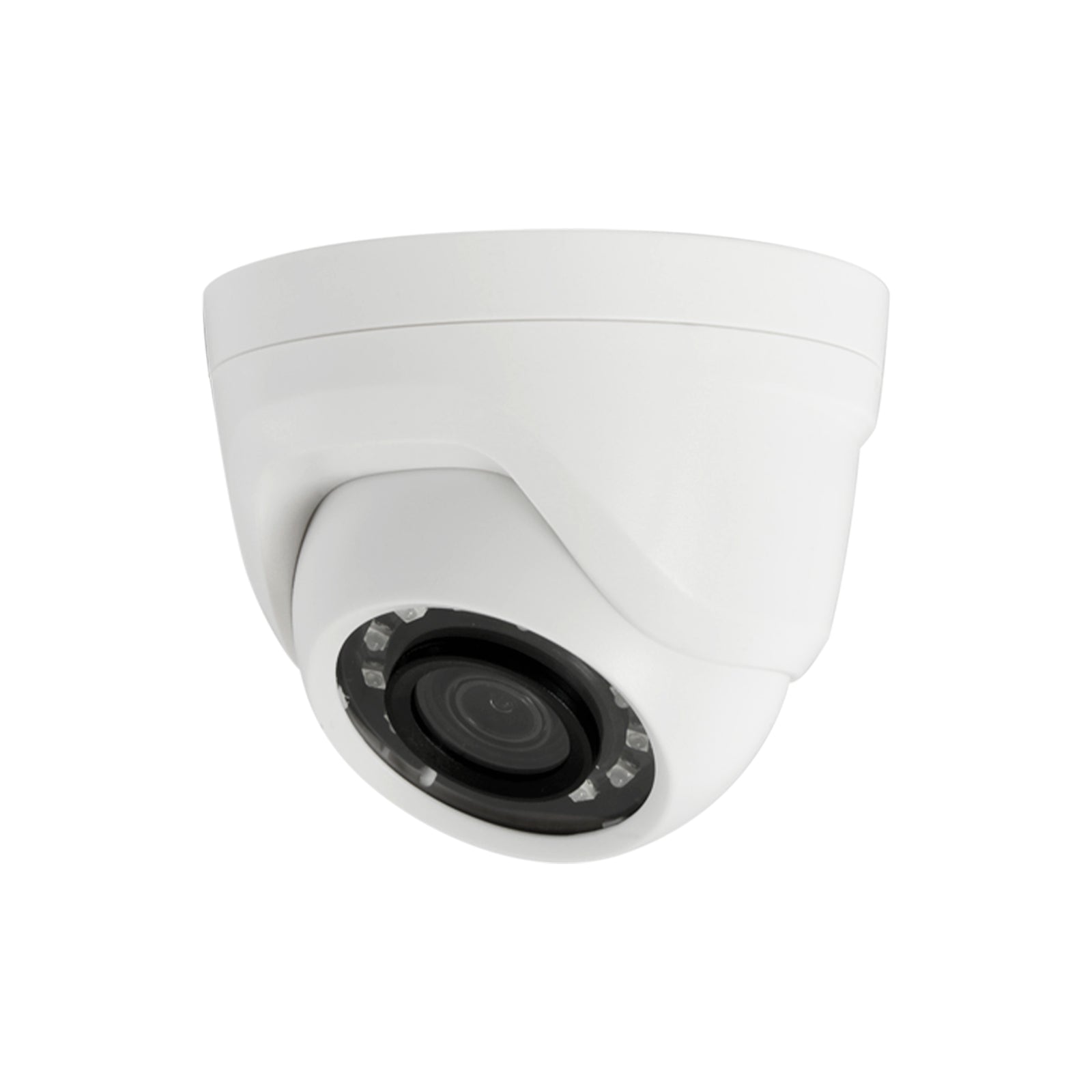

Hybrid Dome Camera HDTVI / HDCVI / AHD / CVBS 2 Mp 3.6 mm - 12 IR LEDs

Infrared dome camera, suitable for indoor. 4 in 1 technology ( HDTVI / HDCVI / AHD / CVBS ) 1080p ECO range.

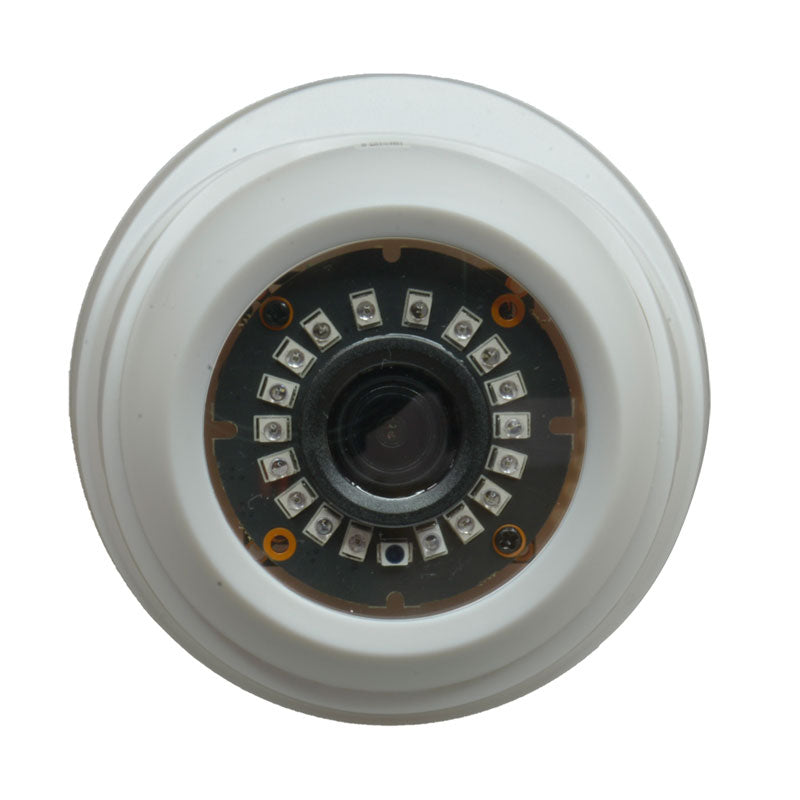

Composed of a 2 Megapixel sensor that offers a resolution of 1080P at 25 FPS in HDTVI / HDCVI / AHD formats and 1000 in analog CVBS format. 3.6 mm fixed lens with a diagonal field of view of 79º . 12 infrared SMD LEDs that activate automatically to provide a clear 0 Lux (total darkness) picture at a maximum distance of 25 m.

It has an automatic IR CUT filter that allows you to have an image with vivid and real colors during the day. It also incorporates noise reduction (2D-NR), automatic exposure (AE) and automatic white balance (AWB).

Video connection via BNC in HDTVI / HDCVI / AHD / CVBS formats switchable via DIP combination switch.

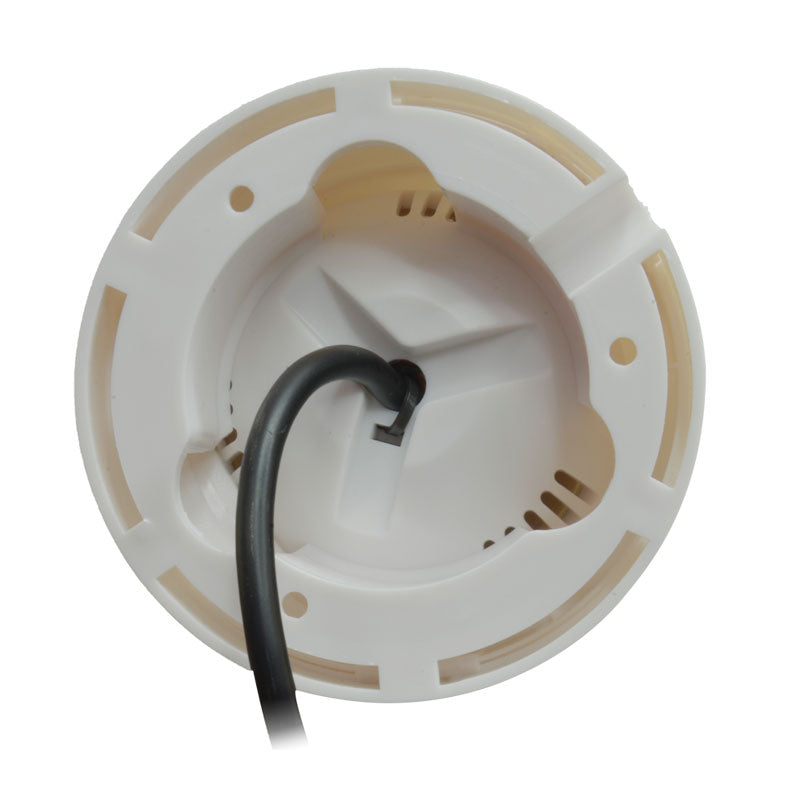

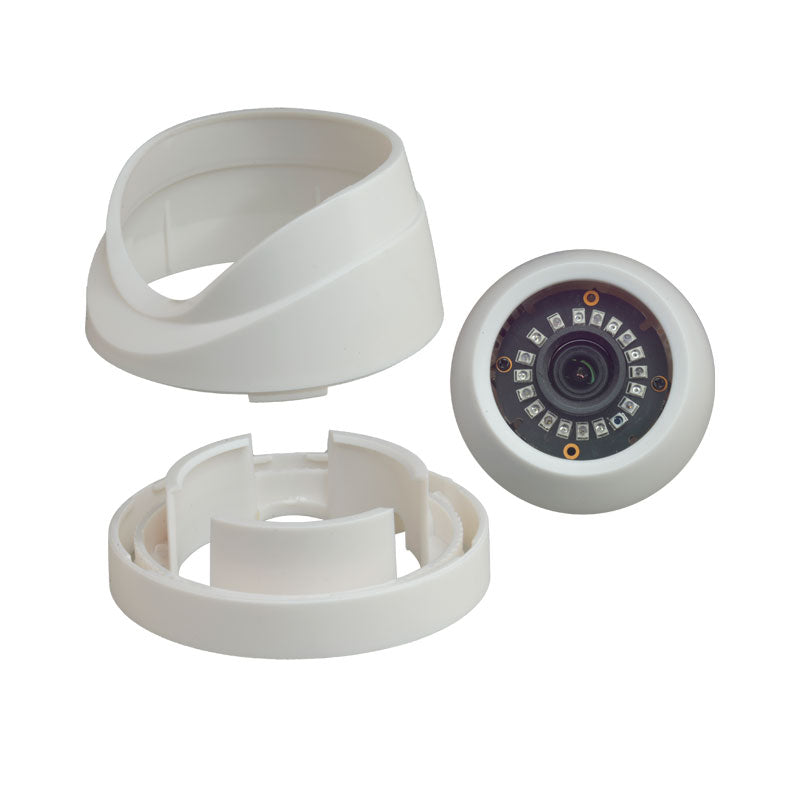

PVC body, for indoor use. It has a sphere with three rotation axes ( 3AXIS ) that allow easy and precise adjustment of the viewing angle, with wall or ceiling installation.

Main features

• 1080p ECO Range
• 4 in 1 (HDTVI / HDCVI / AHD / CVBS)
• 1/2.7" Brigates© BG0806
• 3.6mm lens
• 12 SMD IR LEDs Distance 25m
• Made of PVC - for interiors

Technical specifications

1080p ECO Range
1/2.7" Brigates© 2.1 Megapixel optical sensor (BG0806)
DSP associated with the V30E sensor
1080p HD video output (1920x1080) at 25 FPS
Video output 1 x BNC switchable HDTVI 2.0 / HDCVI / AHD / CVBS
Minimum illumination 0 Lux / SMD LEDs IR(25 m)
Basic Functions OSD Menu, Day/Night with IR-CUT (ICR)
Configurable OSD functions DWDR, 2D-NR, AE, AWB, AGC
3.6mm optics (D: 79º)
Power supply DC 12 V / 300 mA max.
Degree of protection Interior
Operating temp. -10º C ~ +50º C
Dimensions 65 (Fo) x 90 (Ø) mm
Weight 150 g
