Dahua Ahd Motozoom Hybrid Varifocal Camera 2.7 13.5 Mm 2 Mpx Ip67 Ir Led

Dahua HAC-HFW1230R-Z-IRE6 bullet camera with 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), FULL HD 1080p resolution at 2 Megapixel, 2.7~12mm motorized varifocal lens and 1/2.8" CMOS sensor, infrared LED array with Starlight & Smart IR technology, IR illuminator coverage up to 30 meters. OSD menu with adjustable functions via coax.

The 4IN1 hybrid technology makes the camera compatible with all analog CCTV video surveillance systems: HD-CVI, HD-TVI,AHD, PAL (960H). Note: by setting the camera to PAL standard, you can obtain recordings with a maximum resolution of 960H (960x480p). The selection or switching of the CCTV standard is done using the Dahua PFM820 UTC controller (not included) or via the camera's OSD menu.

Thanks to the OSD menu, it is possible to manage and program various image adjustment functions. Among the main OSD adjustment functions, we recall the following: Day/Night (ICR), AWB, AGC, BLC, HLC, 2D-DNR, DWDR digital. The infrared adopts the "Starlight" technology that requires very little illumination to obtain a clear color image even in extreme situations.

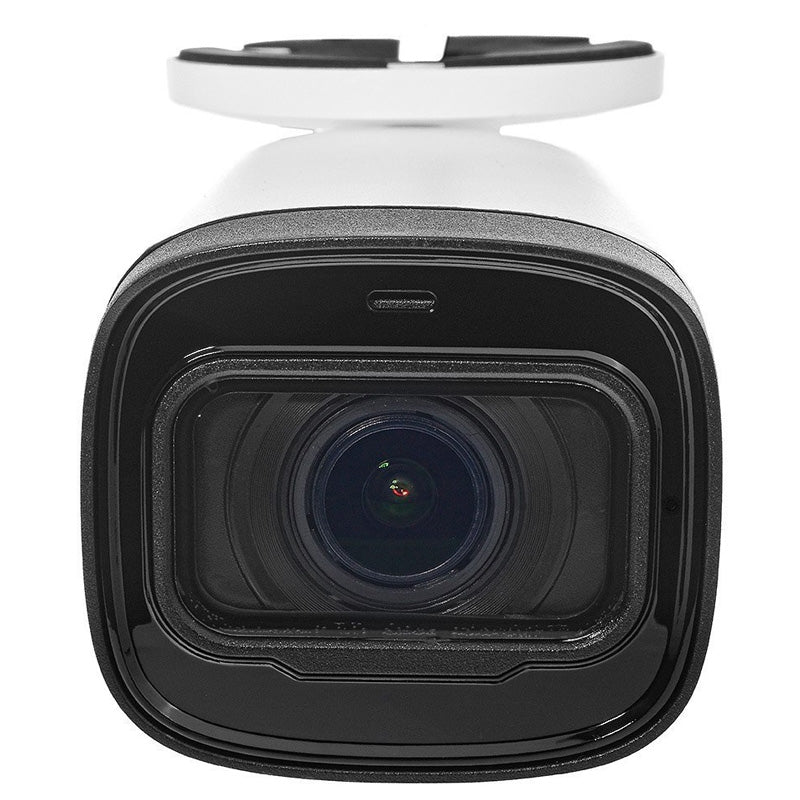

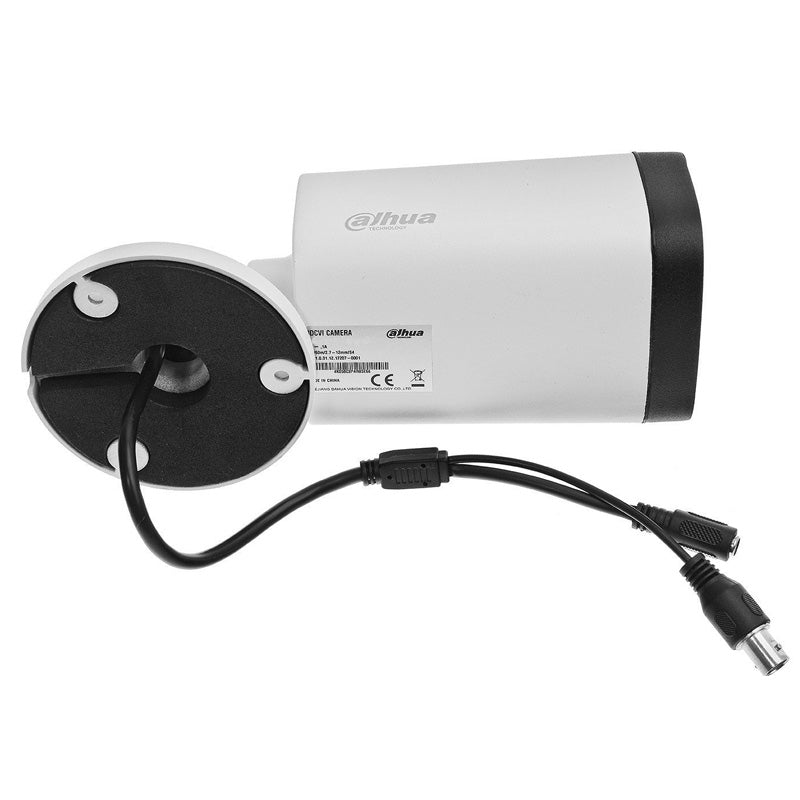

Bullet camera with a white painted metal structure, resistant to atmospheric agents (Waterproof IP67). Above average technological level. Developed and designed to sustainably improve the technical standard of video surveillance.

Main Features:

• 1/2.8" 2Mpx Progressive Scan CMOS
• 4IN1 hybrid technology (switchable via PFM820/OSD controls) - HDCVI, HDTVI, AHD, CVBS
• 25/30fps@1080P FULL HD (1920x1080p).
• High Speed, real-time remote transmissions;
• OSD function: Day/Night(ICR), AWB, AGC, BLC, 2D-DNR, DWDR digital.
• 2.7~12mm motorized varifocal lens - Starlight & Smart IR technology.
• LPS (Lightning Protection System) protection system against lightning and surges.
• Metal structure with IP67 Waterproof protection rating
• Power supply DC12V
• STANDARD: AHD / HD-CVI / HD-TVI / PAL
• SENSOR: 1/2.8" Progressive Scan CMOS
• SCREEN SIZE: 2.0Mpx
• RESOLUTION:
• 1920 x 1080 - 1080p (@25fps),
• 1280 x 720 - 720p(@25fps) ,
• 960 x 576 - PAL
• IR ILLUMINATOR SUPPORT: ICR - Mechanical Infrared Filter
• VIDEO OUTPUT: AHD / HD-CVI / HD-TVI / CVBS, 1 Vpp / 75 Ω - switchable via PFM820 controller / OSD
• AUDIO: No
• OSD SCREEN MENU: Yes, OSD menu available via DAHUA recorder
• LENS: 2.7 ... 12 mm - Motozoom
• VIEWING ANGLE: H: 101.7°~32.3°
• SIGNAL-TO-NOISE RATIO (S/N): > 65 dB
• IR ILLUMINATION RANGE:
• 60M - 0.005Lux/F1.8, 30IRE, 0LUx IR on
• Starlight & Smart IR technology
• IR ILLUMINATOR POWER ADJUSTMENT:Automatic
• SELECTED FEATURES:
• DWDR - Wide Dynamic Range of Illumination
• 2D-DNR - Digital image noise reduction
• BLC - Backlight Compensation
• HLC - High Light Compensation (point)
• ICR - Mechanical Infrared Filter
• AGC - Automatic Image Gain Control
• Auto white balance
• Privacy Zones
• Motion detection
• Mirror - Mirror image
• Sharpness - sharper image edges
• POWER SUPPLY: 12V DC / 900mA
• POWER CONSUMPTION: Max 12.1W (12V DC, IR on)
• CASE: Compact, aluminum
• COLOR: White
• PROTECTION RATING: IP67
• OPERATING TEMPERATURE:-30 °C ... +60 °C
• WEIGHT:0.550 kg
• DIMENSIONS: 213 x 90 x 90mm
• MANUFACTURER / BRAND:DAHUA
