Nvr Dahua Poe 4 Channel 4K 8Mp Ip For Video Surveillance Cameras

New Deep Learning Series | NVR4204-P-4KS2/L Dahua IP NVR Video Recorder for Surveillance 4 IP Channels and 4 PoE Channels up to 8Megapixel 4K ULTRA-HD , Bandwidth 128Mbps , Video Compression up to Smart H.265+, VGA, HDMI(4K), 2 USB, ONVIF, new graphic interface , supports cameras with IVS and SMD plus on board, up to 2HDD SATA 8TB. ​​Ideal for retail stores, families, courtyards and public areas. NVR4204-P-4KS2

DEEP LEARNING | THE NEW DAHUA RECORDERS:
Dahua continues its evolution towards increasingly intelligent systems.
Dahua NVR /L series IP recorders are highly cost-effective network video recorders, which provide attractive functions such as local live view, multi-screen view, local HDD real-time storage, remote management and control. Ideal for a wide range of applications such as home security, schools, shops, small offices.

As for the features, here are the most important ones:

• - New simpler and more intuitive user interface
• - Smart H.265+ / H.264+ Video Coding : Higher efficiency in video encoding process and superior video quality. Reduce storage and transmission costs.
• - Support for cameras with IVS (artificial intelligence) on board
  - Security Center:
• - Security Center: for a complete overview of your device's security and protection with security scans, certificate management and more
• - 4K resolution

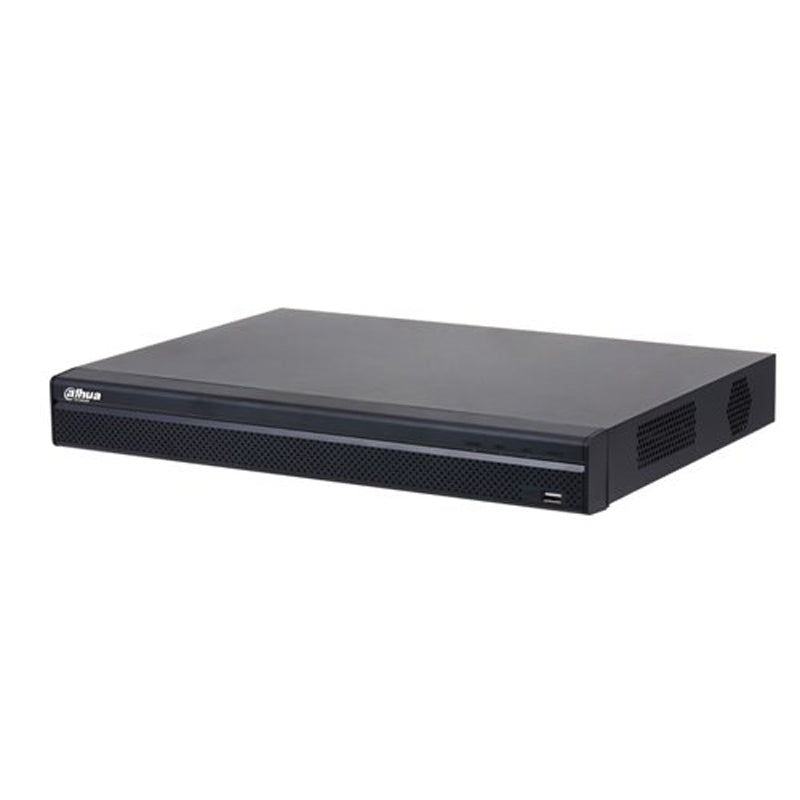

Model: DVR NVR4204-P-4KS2/L
SYSTEM

• Main Processor Industrial-grade embedded processor
• Operating System Embedded Linux
• Operation Interface Web/operating in local GUI
• Video
• Access Channel 4 channels
• Network Bandwidth 128 Mbps for access, 128 Mbps for storage and 64 Mbps for forwarding
• Resolution 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
• Decoding Capability 4–ch@4MP(30FPS)
• Video Output 1 VGA/1 HDMI simultaneous video output, maximum resolution 4K
• Multi-screen display 1/4
• Third Party Camera Access ONVIF, RTSP
• Compression
• Video Smart H.265+/H.265/Smart H.264+/H.264
• Audio G.711A/G.711U/PCM/G726

Network

• Network Protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P
• Mobile Phone Access iDMSS (iOS)/gDMSS (Android)
• Interoperability ONVIF (profile S), CGI, SDK
• Browser Chrome, IE9 or above, Firefox
• Record Playback
• Multi-channel Playback Up to 4 channels playback
• Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording
• Local HDD Storage
• USB device backup
• Playback Function
• 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame
• 2. Full screen, backup (cut/file), partially enlarge, audio on/off

Alarm

• General Alarm Motion detection, privacy masking, video loss, IPC alarm
• Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly
• Alarm Linkage Video recording, snapshot, log, preset point, tour

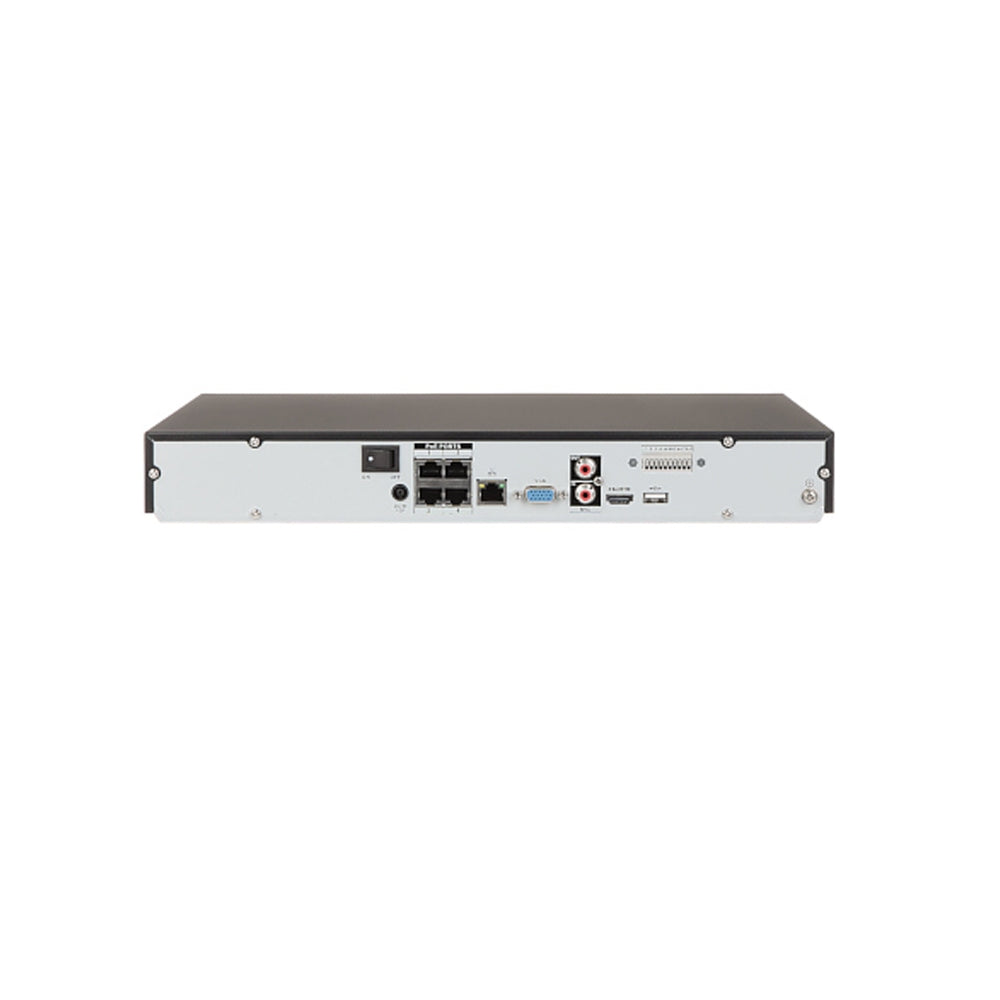

External Port

• HDD 2 SATA ports, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature.
• USB 1 front USB 2.0 port, 1 rear USB 2.0 port
• HDMI 1
• VGA 1
• RCA Input 1
• RCA Output 1
• Alarm 4 alarm input ports, 2 alarm output ports
• Network 1 RJ–45 port (10/100/1000 Mbps), 4 RJ–45 ports with PoE power supply (10/100 Mbps)

General Parameter

• Power Supply DC48V/53V,1.5A/1.36A
• Power Consumption Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
• Net Weight 1.58kg (3.48 lb) (without HDD)
• Gross weight 2.93kg (6.46 lb) (without HDD)
• Product Dimensions 375mm × 275mm × 52mm (W × L × H) 14.76 inch × 10.83 inch × 2.05 inch (W × L × H)
• Package Dimensions 141mm × 433mm × 366mm (W × L × H) 5.55 inch × 17.05 inch × 14.41 inch (W × L × H)
• Operating Temperature -10°C to +55°C (+14°F to +131°F)
• Storage Temperature 0°C to +40°C (+32°F to +104°F)
• Operating Humidity 10%–90%
• Storage Humidity 30%–85%
• Operating Altitude 3000 m (9843 ft)
• Desktop Mounting Installation
• Certifications CE/FCC/UL
