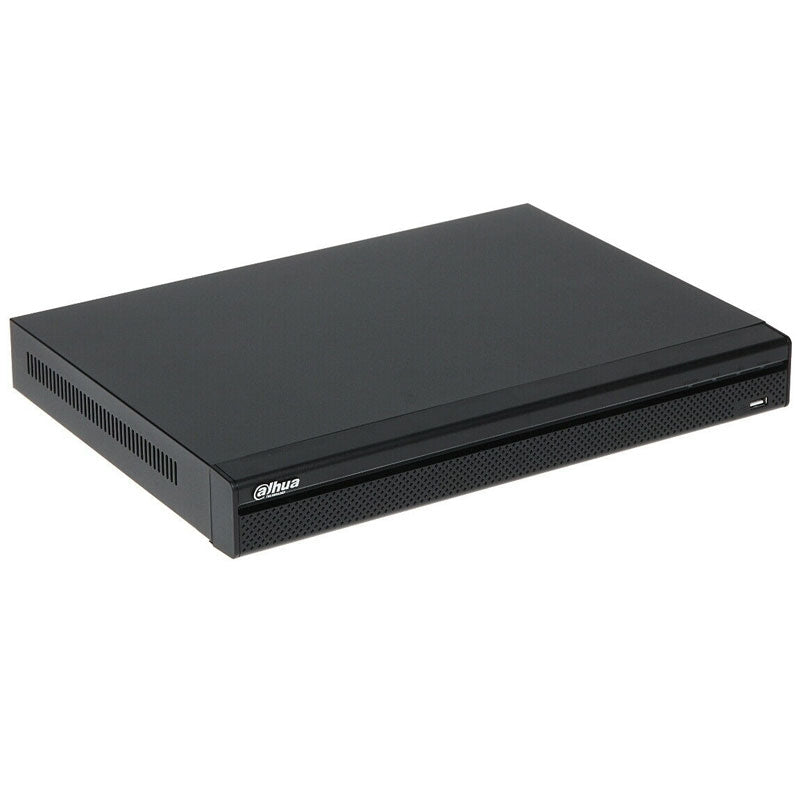

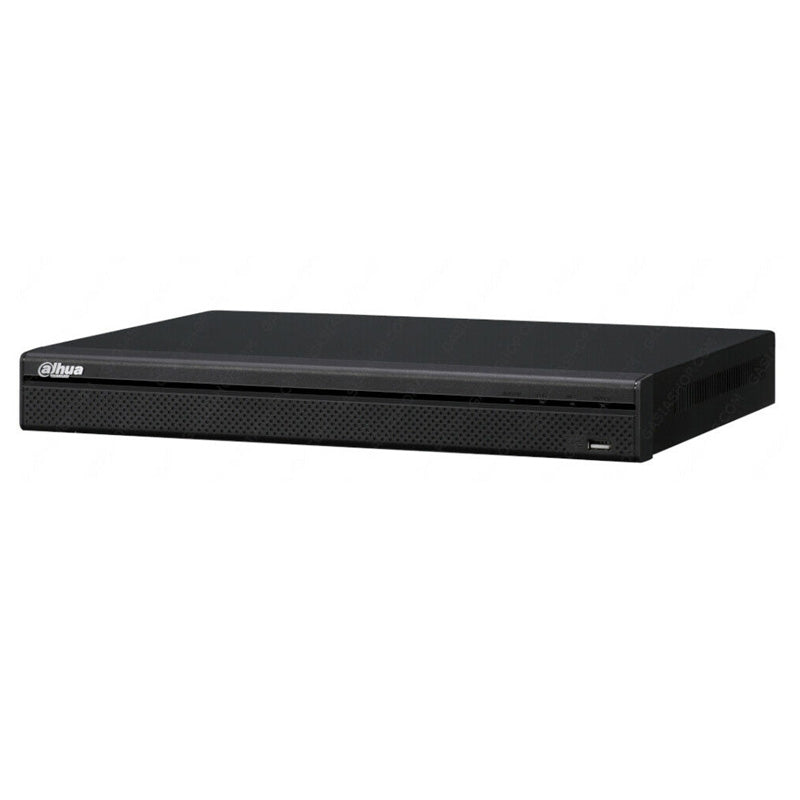

Dahua NVR 16 Channels Poe 4K 8 Mp Onvif Nvr4216-16P-4Ks2 H265 200Mbps HD 1 Tb

Dahua IP NVR Video Recorder sku. NVR4216-16P-4KS2/L 4K Ultra HD 8Ch IP channels up to 8MP with 16 PoE ports (25.5W for each port), H.265 video compression, Up to 160Mbps input bandwidth, 8 channels of perimeter protection (programmable from IP camera with IVS), 4 facial recognition (programmable from IP camera with AI), 12 channels of perimeter protection (programmable from IP camera with SMD Plus) HDMI (4K) / VGA, Max 2 HDD SATA 3.5", 2 USB ports (2.0), ONVIF (Profile T/S/G). Two-way RCA audio - 4x Alarm Outputs - 2x Alarm Inputs - RJ45 LAN 10/100/1000Mbps network interface.

Dahua Ultra HD 4K video recorders support IP digital cameras up to 8Mpx resolution. The higher resolution of the cameras makes it easier to identify individuals in specific areas of interest in crowded streets, clubs and common spaces. 4K technology offers optimized situational awareness, with more detailed coverage of shopping malls, airports, roads, parking lots, railways etc. UHD 4K video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

Technical specifications

• 4K NVR 16Ch channels with built-in industrial grade processor.
• Built-in 16-Port PoE Switch, 25.5W/Channel, PoE (Total PoE output power is 117W - Single port output power is 25.5W).
• New UI 4.0, Security Base 2.1
• Resolution supported up to @8 Mpx ULTRA UHD 4K
• Video compression Smart H.265/H.265/Smart H.264/H.264/MJPEG dual codec decoding.
• Max. 160Mbps incoming bandwidth.
• HDMI (4K) / VGA simultaneous video output (supports simultaneous output of video sources for VGA and HDMI).
• Remote visibility for up to 128 simultaneous users.
• Supports 2 SATA HDDs up to 10TB, 2 USB (USB2.0).
• Support 4 inputs + 2 relay alarm outputs.
• Mobile viewing on iPhone, iPad and Android.
• Easy setup P2P QR scan with dedicated Dahua Cloud service.
• Support multi-brand network cameras: Dahua, Arecont Vision, Axis, Bosch, Brickcom, Canon, CP Plus Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc - ONVIF(profile T/S/G); CGI; SDK
• NVR (4KS2/L) supports AI & IVS (Intelligence) cameras: recognize and record videos containing IVS data on all IP channels; record standard intelligence functions; record premium IVS functions (detect abandoned or lost objects, tripwire violations and intrusion violations.); Face detection, people counting and heat map from IP cameras.
• The NVR (4KS2/L) supports IP cameras with built-in SMD Plus. With the deep learning algorithm, Dahua SMD Plus filters the alarm received by detecting an uninterested target, and effectively recognizes humans and vehicles, sending alarms when the latter appear in the shooting area.
• 3D Intelligent Positioning with Dahua PTZ Camera
• Multiple remote access: Web viewer, CMS(DSS/PSS) & DMSS.
• STANDARD: TCP/IP
• SUPPORTED RESOLUTIONS: max. 8 Mpx
• VIDEO OUTPUTS: 1 HDMI unit (4K)
• 1 VGA unit
• AUDIO SUPPORT: 16 Channels - Audio from cameras
• AUDIO INPUTS: 1 unit CINCH (RCA) - Input for external microphone
• AUDIO OUTPUTS: 1 unit CINCH (RCA)
• IMAGE COMPRESSION METHOD: Smart H.265/H.265/Smart H.264/H.264/MJPEG
• USB: 2 x USB 2.0 drives (1 x front; 1 x rear)
• SUPPORTED HARD DRIVES: 2 x 10TB SATA III
• RECORDING MODE: Manual, Alarm, Motion Detection, Schedule, SMD Recording, Smart Recording.
• NETWORK PROTOCOLS: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
• STORING THE BACKUP COPY ON EXTERNAL DEVICES: Storage on USB drives (pendrives)
• SEARCH AND PLAYBACK OF RECORDINGS: Search for recordings by time and event type. Playback: forward, backward, fast mode, slow mode
• Advanced search (with one-second precision)
• Synchronous playback of all channels, Smart Search function
• NETWORK BANDWIDTH Access: 160 Mbps; Storage: 160 Mbps; Forward: 64 Mbps
• NETWORK FUNCTIONS: Full network support, Remote recording copy, Built-in web server
• max. 128 users online
• MOBILE ACCESS: Port: 37777 or cloud access
• Android: Darmowa applikacja gDMSS Plus
• iOS (iPhone): Darmowa aplikacja iDMSS Plus
• DEFAULT IP ADDRESS: 192.168.1.108
• DEFAULT USERNAME / DEFAULT PASSWORD FOR ADMINISTRATOR: admin / -
• Administrator password must be set at first boot
• ACCESS PORTS VIA BROWSER: 80, 37777
• ACCESS PORTS VIA PC APPLICATION: 37777
• ACCESS DOORS VIA MOBILE APPLICATION: 37777
• ALARM INPUTS / OUTPUTS: 4 / 2
• PTZ CONTROL: Speed ​​Dome IP Cameras
• MOTION DETECTION: 22 x 18 detection fields - once motion is detected, only the camera with detection starts recording
• INTELLIGENT IMAGE ANALYSIS: Yes
• MOUSE SUPPORT: Yes
• IR REMOTE CONTROL SUPPLIED: No
• POE SWITCH: Built-in 16-port PoE switch - (Total PoE output power is 117W - Single port output power is 25.5W).
• POWER SUPPLY: 100 V–240 V, 47 Hz–63 HZ, 3.5 A (power supply included)
• WEIGHT: 2.63kg
• DIMENSIONS: 375 mm × 327.4 mm × 53.8 mm (14.76" × 12.89" × 2.12") (W × L × H)
• SUPPORTED LANGUAGES: Polish, English, Bulgarian, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Slovenian, Serbian, Swedish, Hungarian, Italian
• COUNTRY OF ORIGIN: China
• MANUFACTURER / BRAND: DAHUA
