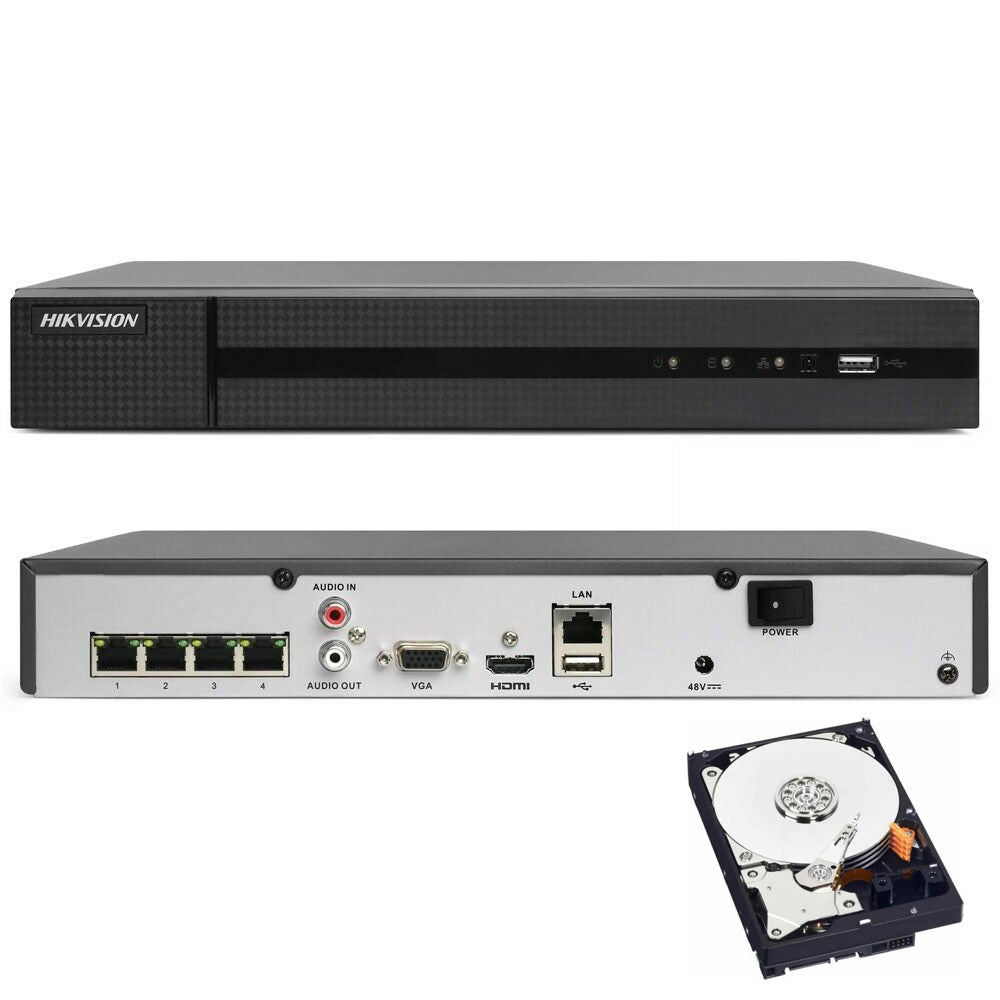

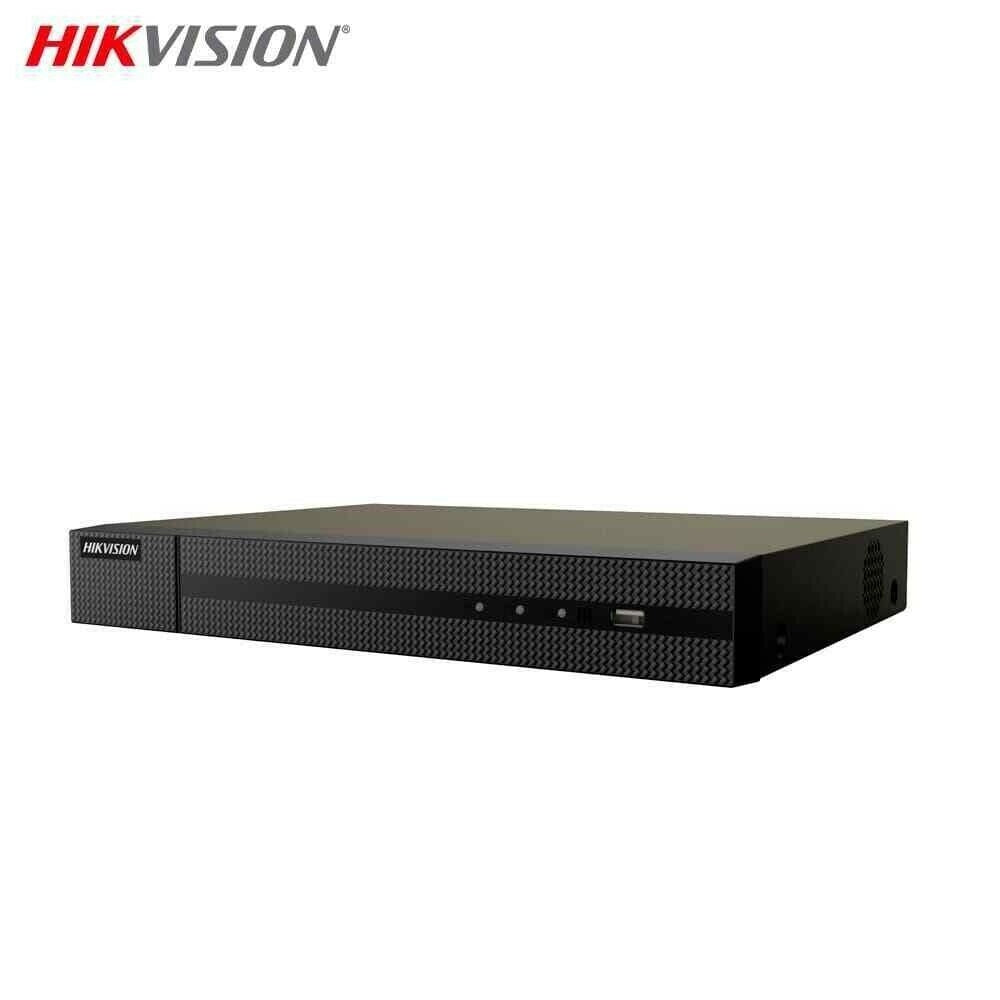

NVR 4 Channels Hikvision Hwn-4104Mh-4P 4K 8Mpx Onvif Poe H.265+ Cloud P2P 500Gb Hdd

IP NVR POE 4CH channels Hikvision HWN-4104MH-4P + HDD 500GB

4CH digital IP NVR video recorder channels with integrated 4-port poe switch Hikvision sku. HWN-4104MH-4P Hiwatch series, Ultra HD 4K resolution (80Mbps input bandwidth) with H.265+ video compression technology, Onivf compatibility protocol (multi-brand) and easy P2P QR scan configuration system with dedicated HIK-Connect Cloud service. Ultra HD resolution in recording on all channels up to @8Mpx. UHD 4K video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Main features

• Hikvision HiWatch Series
• NVR for IP cameras
• 4 CH
• Supported bandwidth 40 Mbps
• Maximum resolution 8 Megapixels
• H.265+/H.265/H.264+/H.264 Compression
• 4K HDMI and VGA output
• Dual Stream IP Access

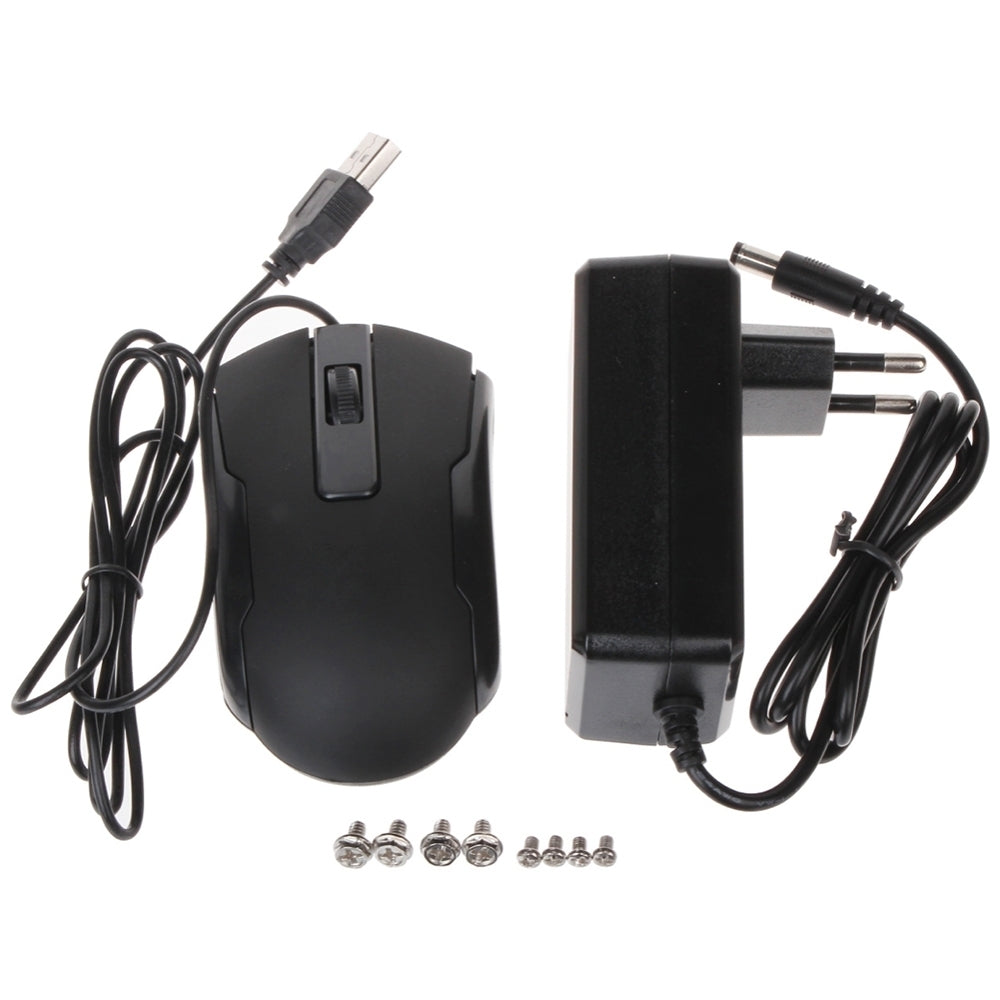

• Mouse included

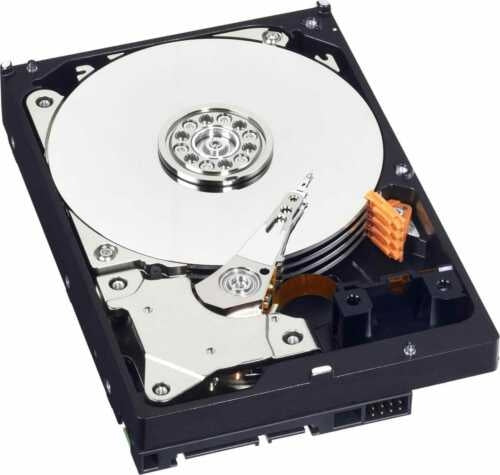

• Slot for 1 HDD ( 500Gb Hard Disk supplied )
• 4 IEEE802.3af/at PoE ports
• WEB interface, CMS and Smartphone
• ONVIF compatible

Technical specifications

Hikvision Brand
IP Camera Inputs LAN Port up to 4 channels
PoE Power Switch 4-port PoE IEEE802.3af/at (max. 50 W)
HIKVISION, ONVIF compatible IP cameras
Two-way audio 1 input / 1 RCA output
Video Output 1 HDMI 4K, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Display resolution 3840x2160, 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 40 Mbps in / 80 Mbps out
Main Stream Recording 8MP/6MP/5MP/4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Pentaplex Simultaneous Multitasking : Live, Record, Playback, Backup and Remote Access
Alarms Not available
Recording Method Manual, Scheduled, Motion Detection, Alarm
External backup USB memory / USB HDD / USB CD-RW / USB DVR-RW
Internal storage 1 SATA 3.5" HDD up to 6 TB ( 500Gb HDD included )
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote Access Web Navigator, IVMS 4500 Smartphone App and IVMS 4200 PC Software
Power supply DC 48V, 50/60Hz
Dimensions / Weight 48 (W) x 315 (L) x 240 (H) mm / 1.0 Kg (without HDD)
