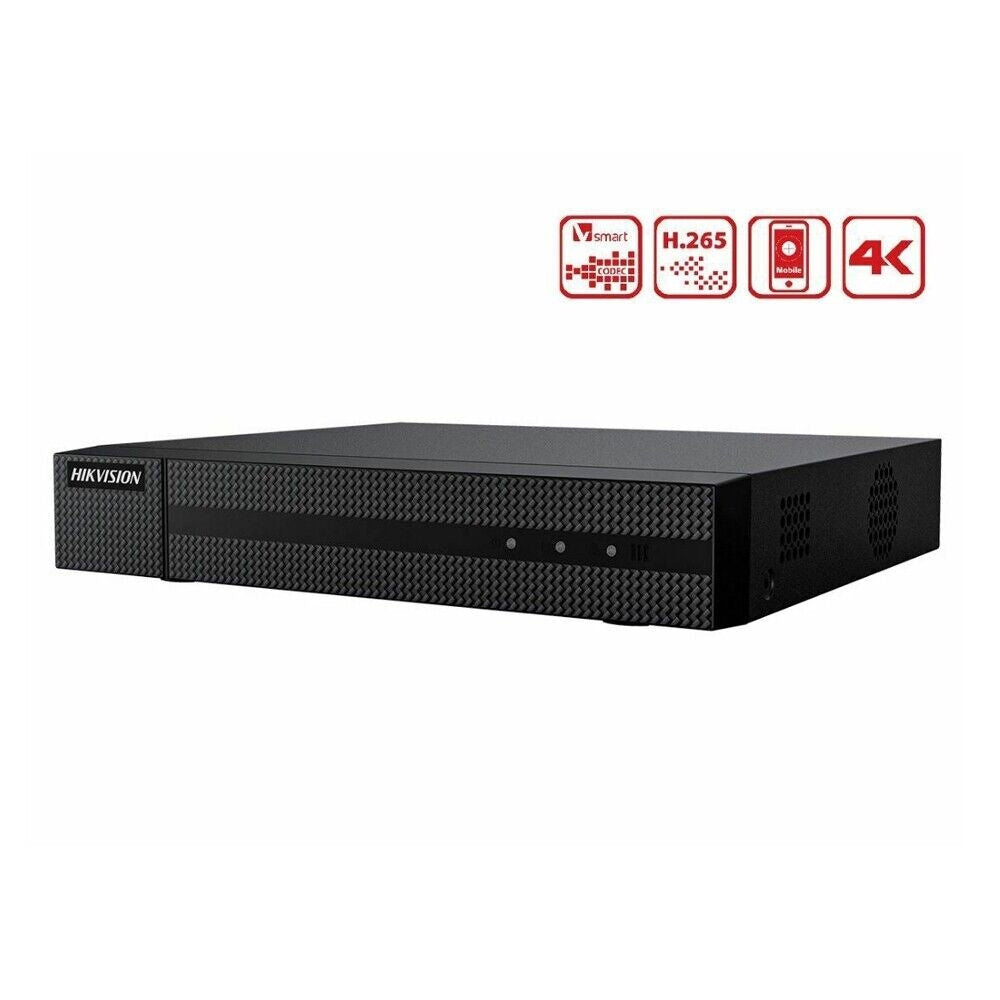

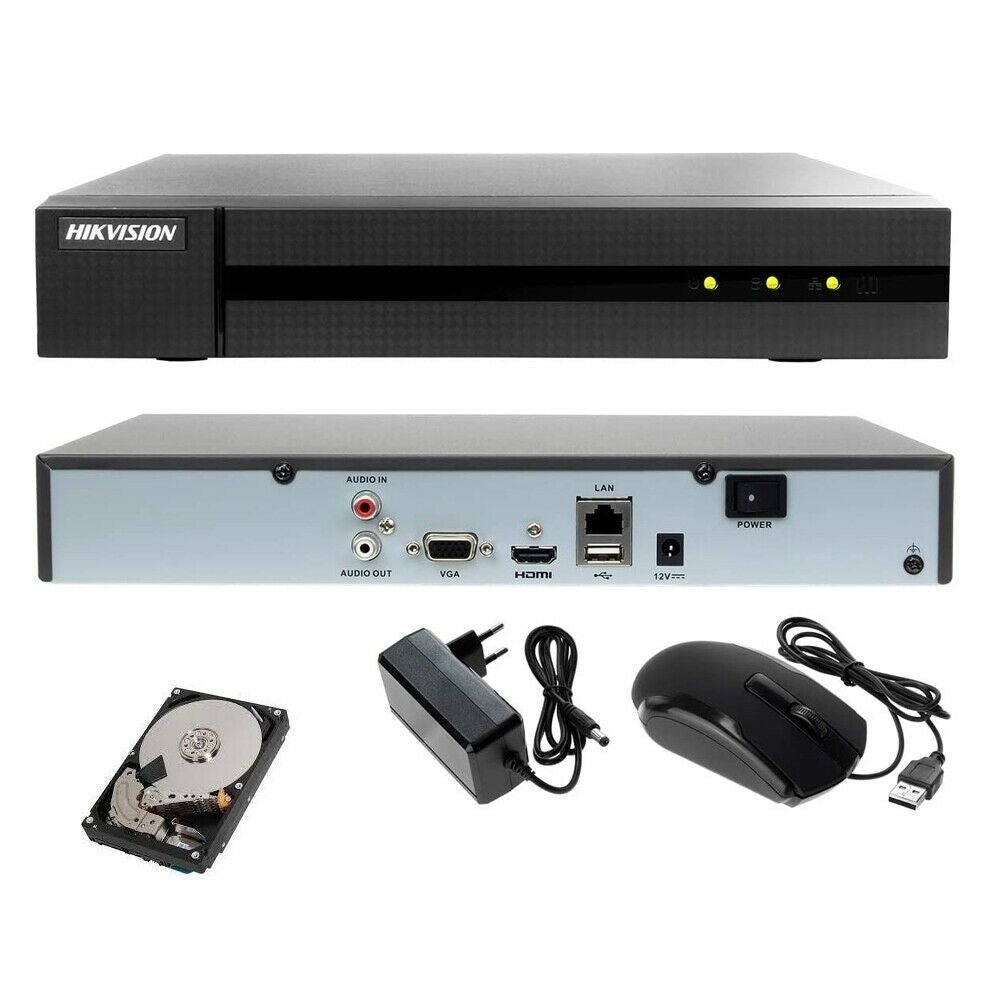

NVR 16 Channels Hikvision 8.0 Mpx Onvif Video surveillance H.265 4K HD P2P HD 500 Gb Hwn-4116Mh

Hikvision 16CH digital IP NVR video recorder channels sku. HWN-4116MH Hiwatch series Ultra HD 4K resolution (80Mbps input bandwidth) with H.265+ video compression technology, Onivf compatibility protocol (multi-brand) and easy P2P QR scan configuration system with dedicated HIK-Connect Cloud service. Ultra HD resolution in recording on all channels up to @8Mpx. UHD 4K video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Main Features:

• 1U 16Ch 4K NVR with high performance processor;
• Resolution supported up to @8 Mpx;
• H.265+ Video Compression;
• Max 80Mbps incoming bandwidth;
• HDMI / VGA simultaneous video output;
• Remote visibility for up to 128 simultaneous users.
• Supports 1 SATA HDDs up to 6TB, 2 USB(USB2.0);

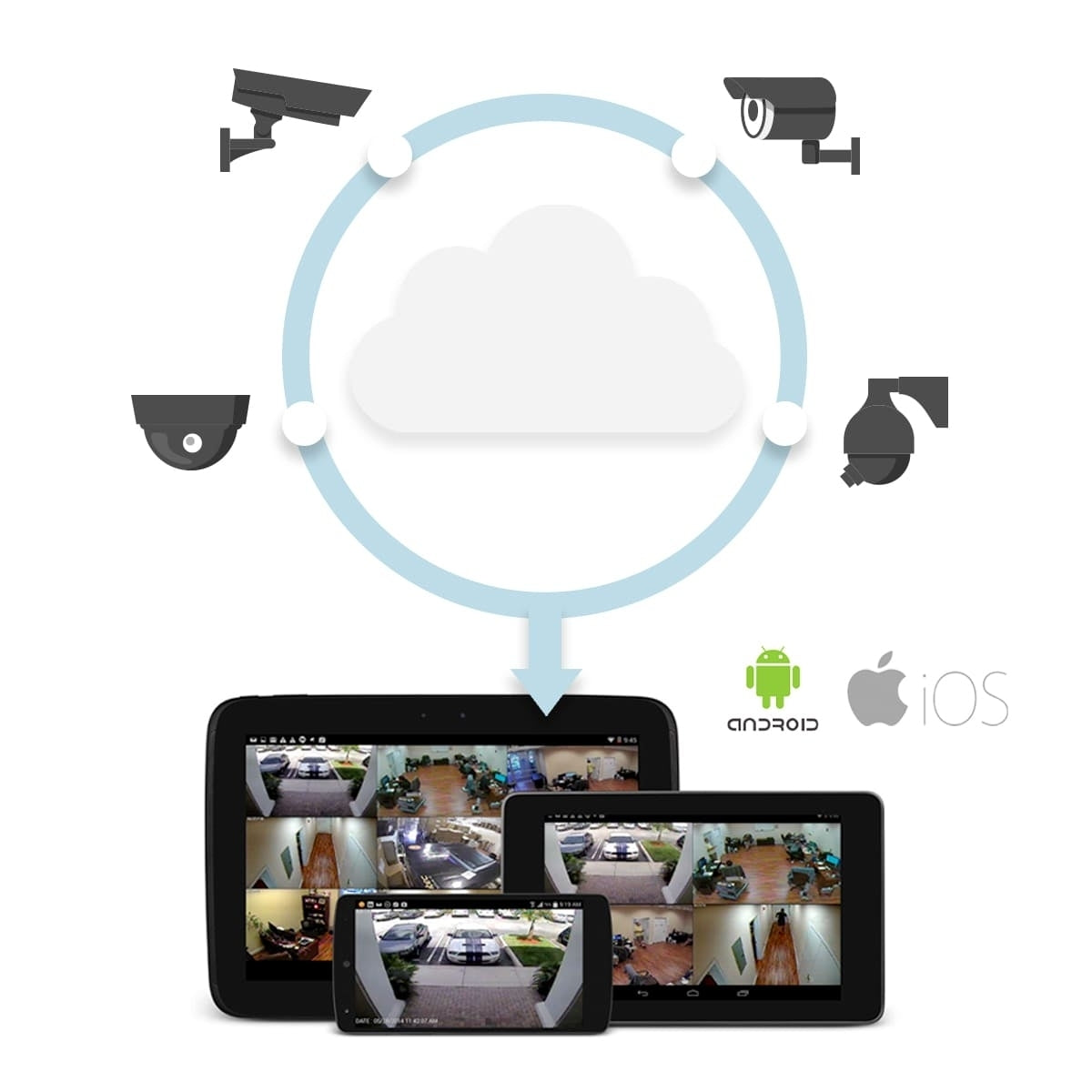

• Mobile viewing on iPhone, iPad and Android;
• Support multi-brand network cameras - Onvif protocol;
• 1 connectable SATA interface for recording and backup;
• 1 self-adaptive 10/100/1000 Mbps network interface;
• Hik-Connect for easy network management.
• IP video input 16-ch
• Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
• Network
• Incoming bandwidth 160 Mbps
• Outgoing bandwidth 80 Mbps
• Video/Audio output
• Recording resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• HDMI output resolution 1-ch, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA output resolution 1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Audio output 1-ch, RCA (Linear, 1kΩ)
• Decoding
• Decoding format H.265/H.265+/H.264/H.264+/MPEG4
• Live view/Playback resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback 16-ch
• Decoding Capability 1-ch @ 8 MP / 4-ch @ 1080p
• Network management
• Network protocols TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Hard Disk
• SATA 1 SATA interface for 1 HDD
• Hard Disk Capacity Up to 6TB for each disk

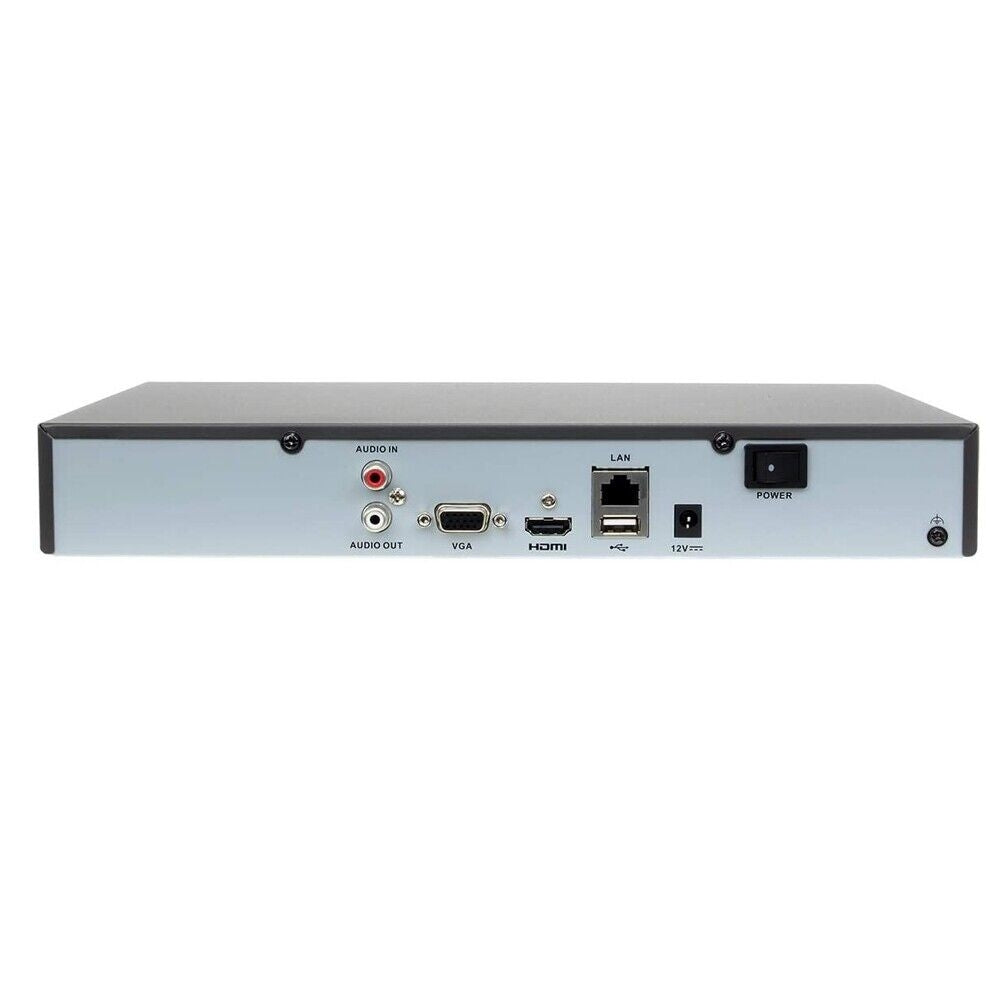

• External interface
• Network interface 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• USB interfaces 2 × USB 2.0
• General
• Power supply 12 VDC
• Power ≤ 18W
• Consumption(without hard disk) ≤ 10 W
• Working temperature -10 °C to +55 °C (14 °F to 131 °F)
• Operating humidity 10% to 90%
• 1U Chassis Chassis
• Dimensions(W × D × H) 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
• Weight ≤ 1kg (2.2lb)
