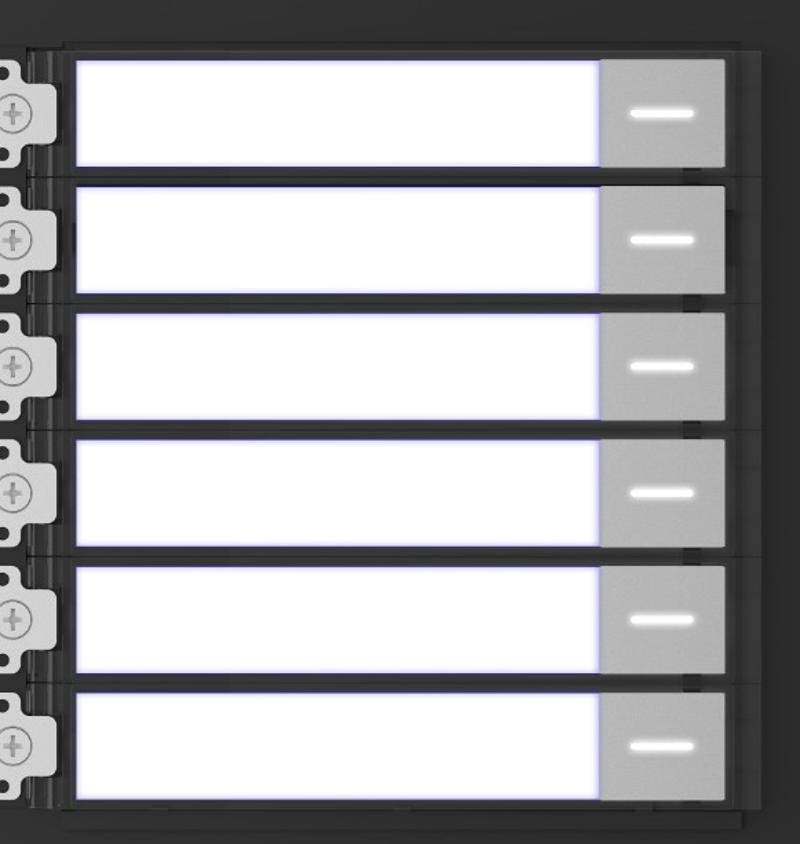

6 BUTTON MODULE Hikvision DS-KD-KK KEYPAD

Hikvision DS-KD-KK/S from the HIKVISION VIDEO INTERCOMS line, Intercom product expansion module with 6 stainless steel buttons .
Hikvision products are the ideal choice for wireless, wired, fiber optic or video surveillance networks, and in particular the 6-button stainless steel Intercom expansion module product ( Hikvision DS-KD-KK/S ).
The Hikvision DS-KD-KK/S product is suitable for WISPs, Carriers, System Integrators, ISPs, telephone operators, video surveillance installers and for all installation needs of radio bridges and point-to-point and point-to-multipoint technologies.
The Hikvision Intercom 6-button expansion module INOX fully meets the requirements that wireless operators want for their radio and wired network infrastructures.

Characteristics

• One Touch Call
• Backlight compensation
• IP65 protection grade
• easy to extend

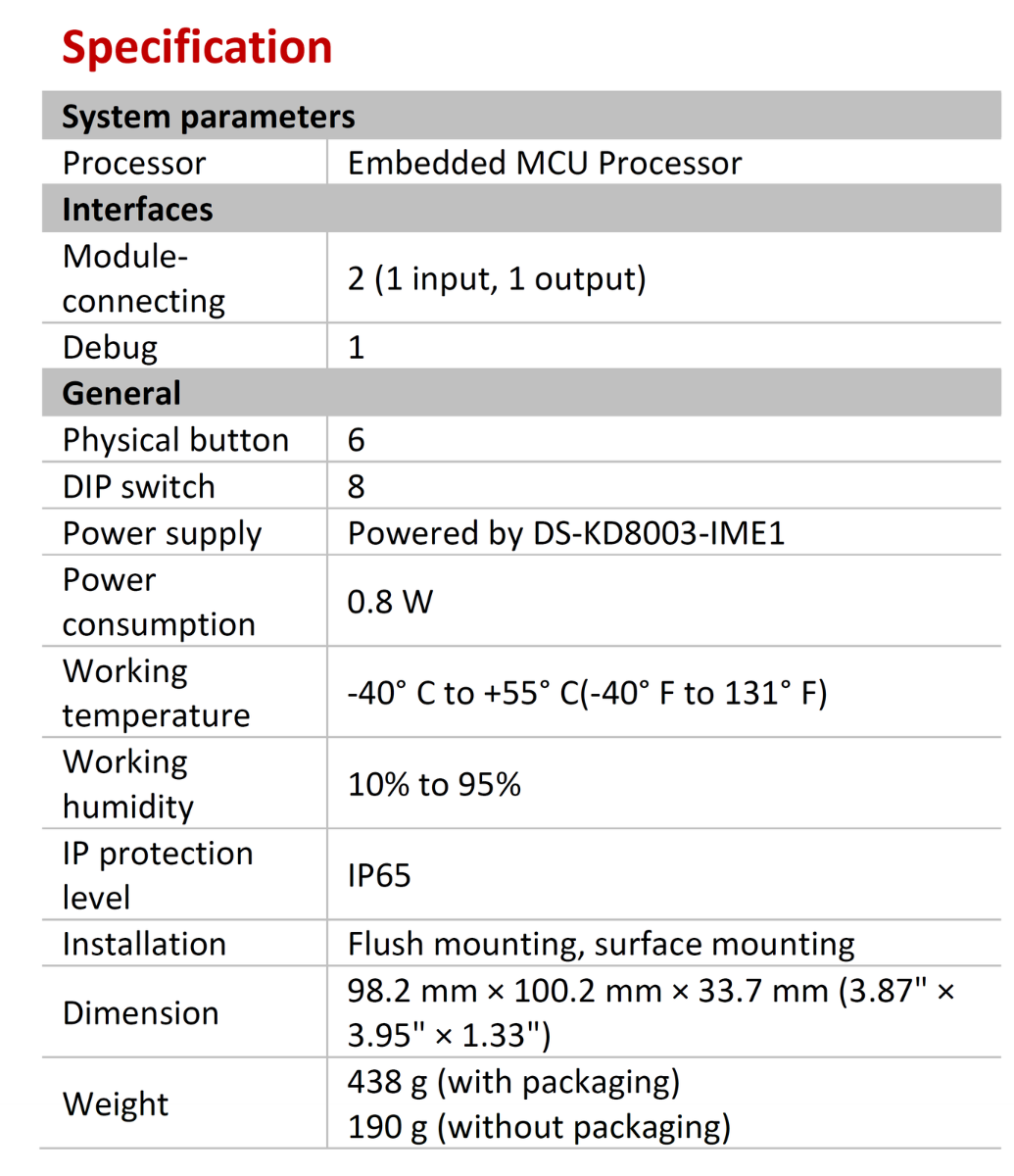

Specifications

• Integrated MCU processor
• 6 physical buttons
• 8 DIP switches

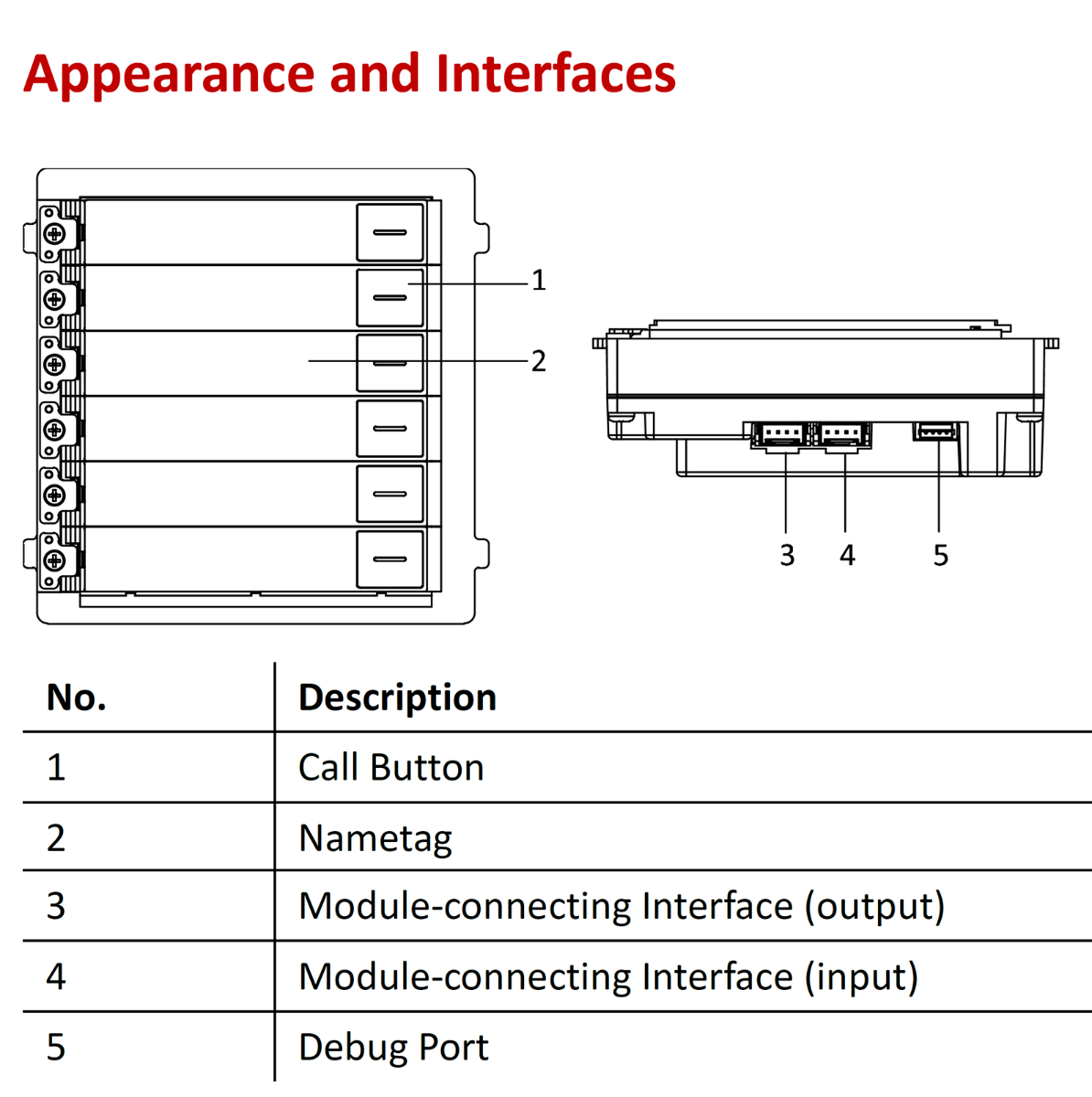

• Modular connection: 1 input / 1 output
• Power supply: 12V DC (from HIK-158)
• Power consumption ≤2W
• debug interface
• Operating temperature -40°C ~ +55°C
• Operating humidity 10% ~ 95%
• IP65 protection grade

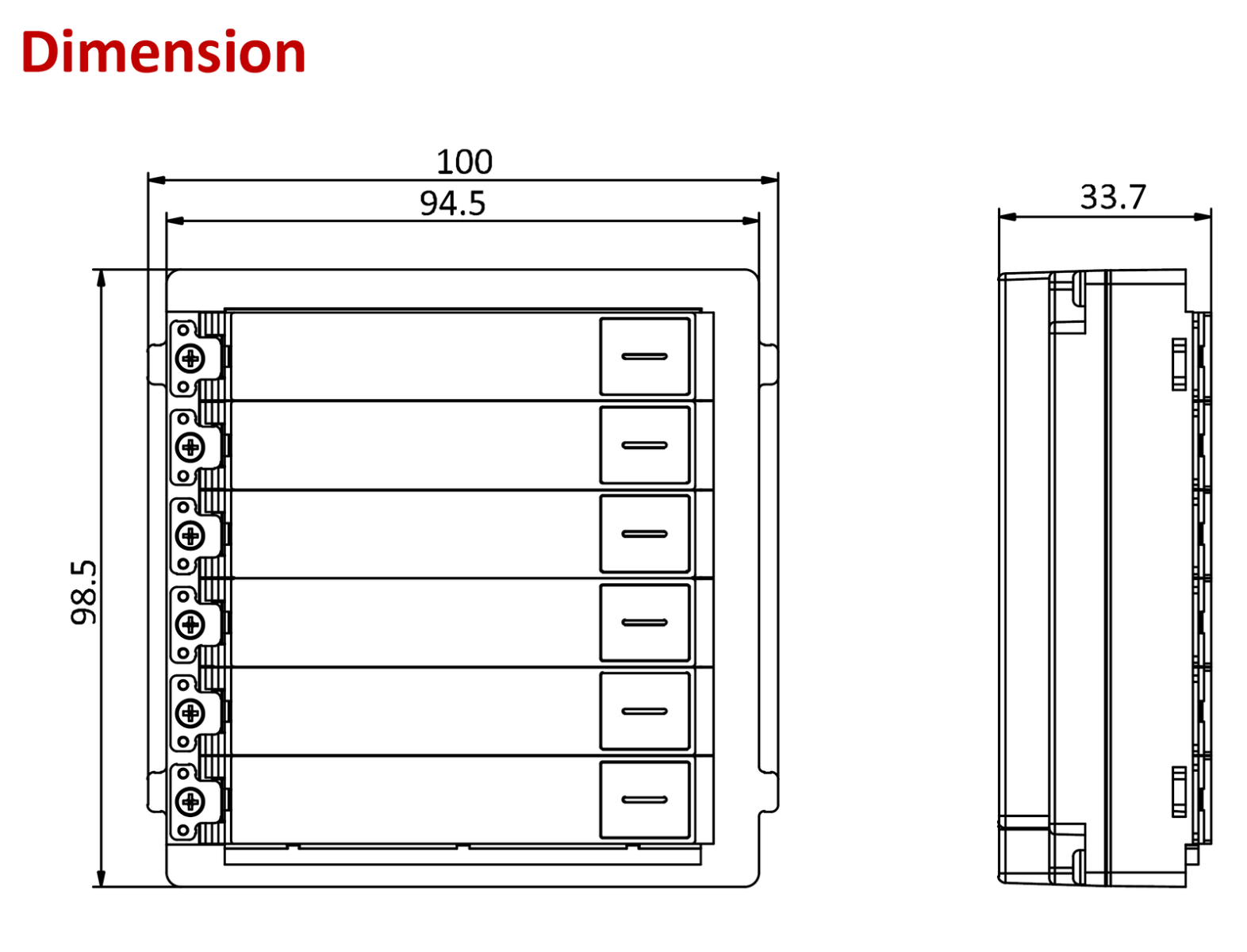

• Dimensions: 100(W) x 98.5(H) x 33.7mm
• Weight: 190 g
• Flush or surface installation
