Video Surveillance Kit Ip Poe 2 Mpx 4 Cameras Hikvision Hd 1Tb

Prezzo regolare: €278,00
Prezzo di vendita: €278,00
Prezzo regolare: ~~€350,00~~

Tasse incluse

Free shipping

Dedicated assistance

Payment by installments

IP POE VIDEO SURVEILLANCE KIT 2 MPX 4 CAMERAS HIKVISION NVR 4 CHANNEL HD 1TB

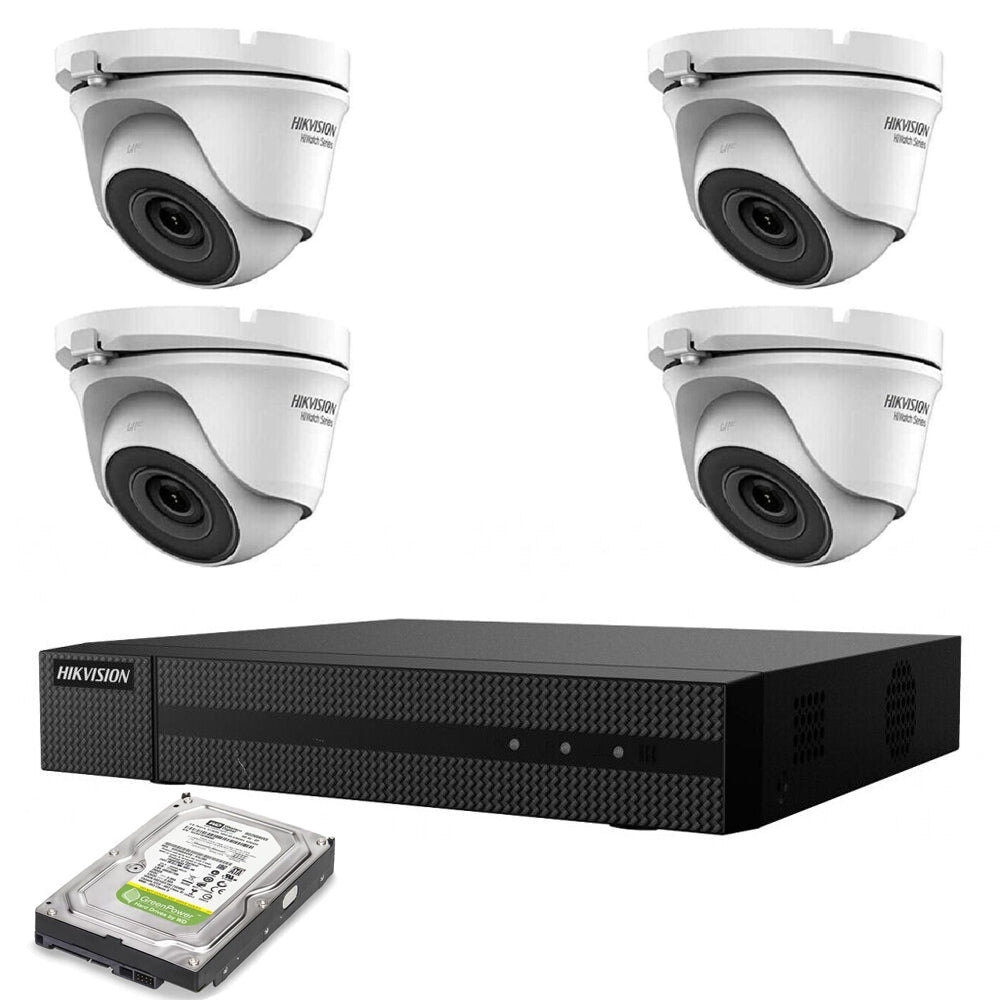

The video surveillance kit includes:

1x NVR HIKVISION VIDEO RECORDER 4 CHANNELS HWN-2104MH 4K 4MPX
4x HIKVISION HWI-T221H digital IP bullet cameras
1X HD 1TB

Technical Data Sheet

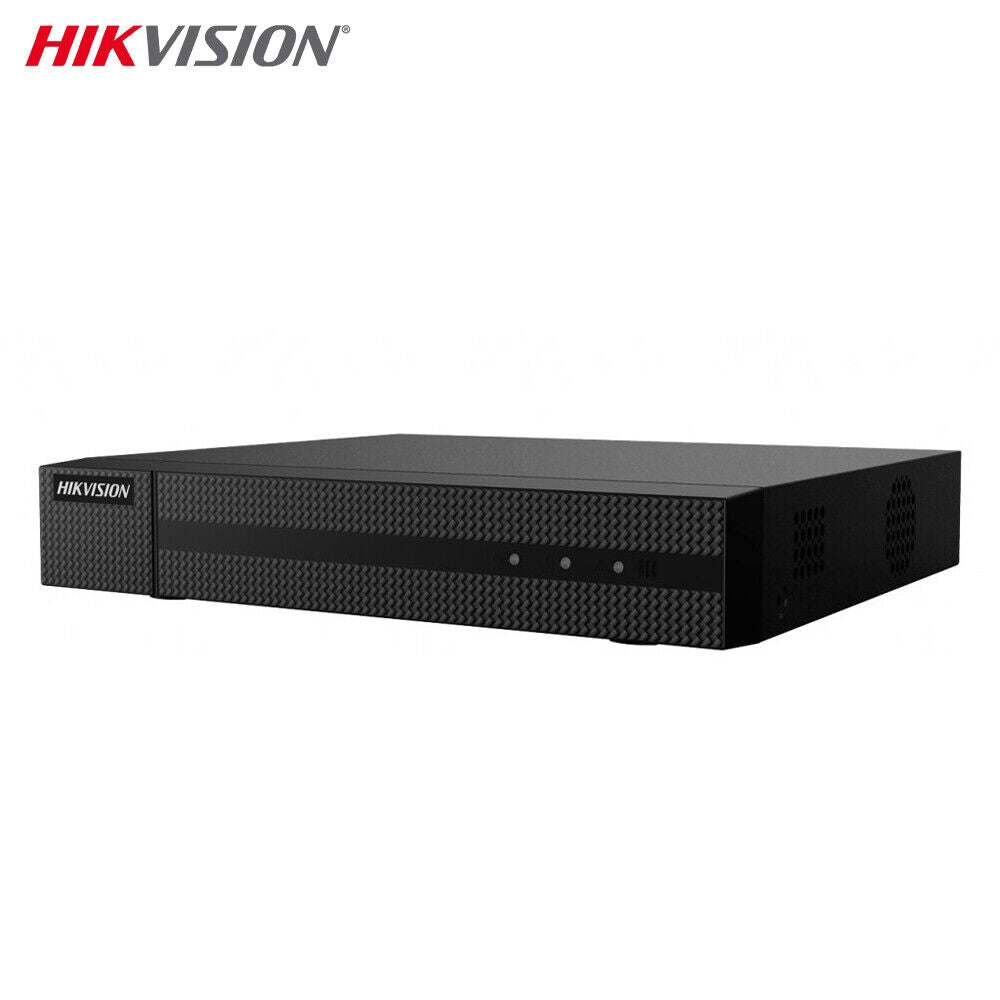

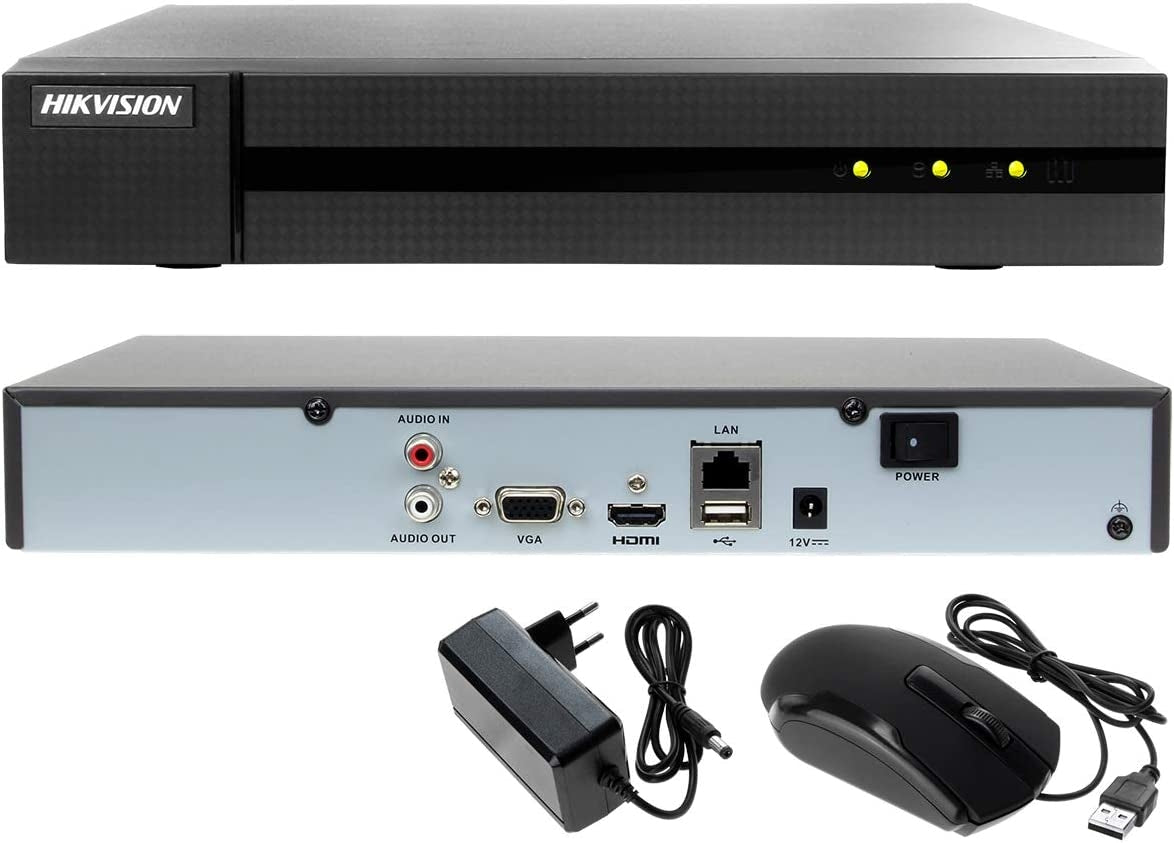

HIKVISION ONVIF 4 CHANNEL NVR 4 MP H265+ H264 HDMI VGA P2P HWN-2104MH

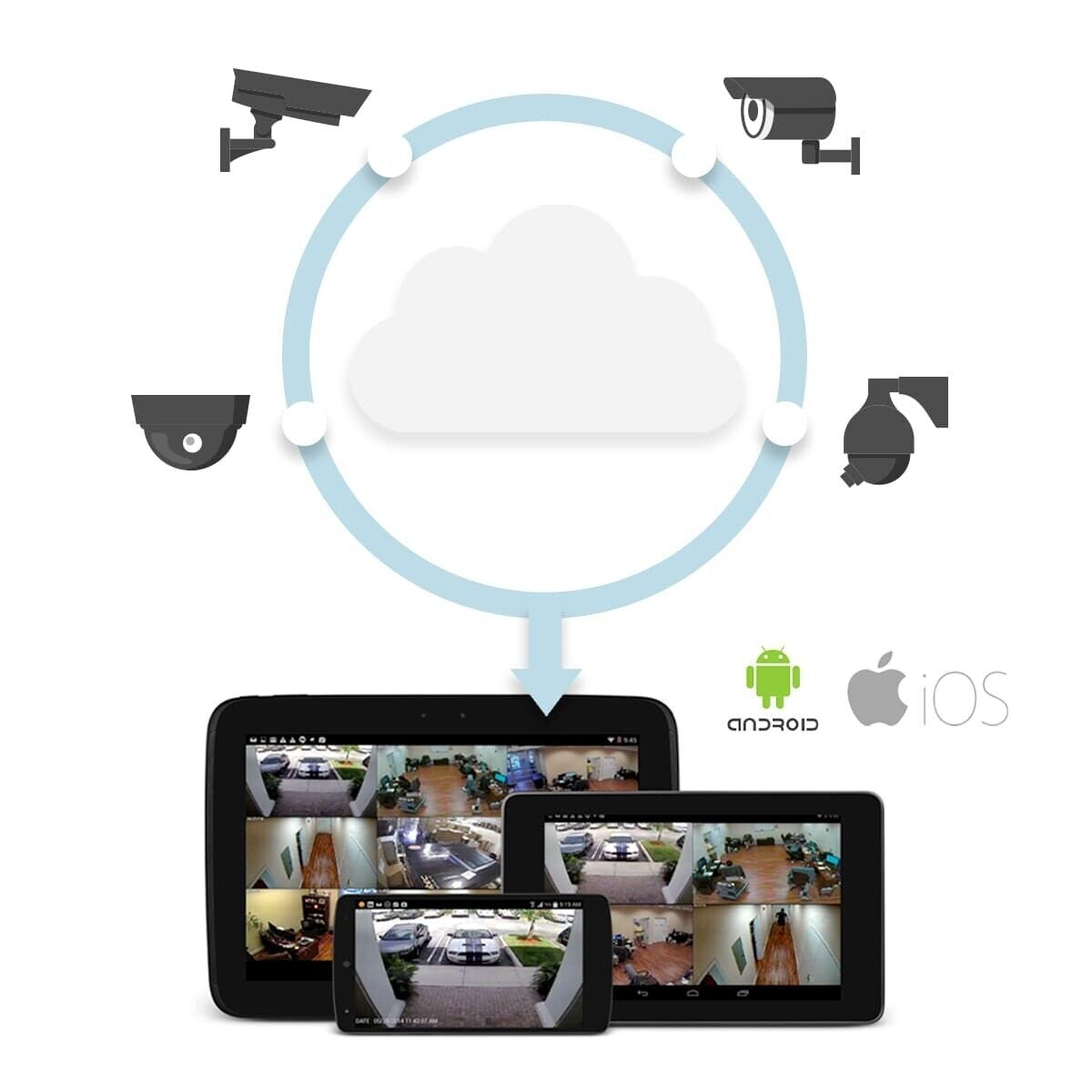

Hikvision HWN-2104MH 4CH Digital IP NVR Video Recorder - Hiwatch series Ultra HD 4K resolution (80Mbps input bandwidth) with H.265+ video compression technology, Onivf compatibility protocol (multi-brand) and P2P QR scan easy configuration system with dedicated HIK-Connect Cloud service. Ultra HD resolution in recording on all channels up to @4Mpx. UHD 4K video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

The main features of this device are:

HWN-2104MH
Hikvision HIWATCH Series
NVR for IP cameras
4 CH
40 Mbps bandwidth supported
Maximum resolution 4 Megapixels
Compression H.265+/H.265/H.264+/H.264
Full HD HDMI and VGA Output
IP Dual Stream Access
Mouse
Space for 1 HDD
WEB, CMS and Smartphone interface
ONVIF Compatible
SKU HWN-2104MH
Hikvision Brand
HiWatch Series Range
IP Camera Inputs LAN Port up to 4 channels
HIKVISION, ONVIF compatible IP cameras
Two-way audio 1 input / 1 RCA output
Video outputs 1 HDMI Full HD, 1 VGA
Video compression format H.265+ / H.265 / H.264+ / H.264
Screen resolution 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768
Total bandwidth 40 Mbps downstream / 60 Mbps upstream
Main stream recording 4MP/3MP/1080P /UXGA /720P /VGA /4CIF /DCIF /2CIF /CIF /QCIF
Decoding capability 1CH@4Mpx or 2CH@1080p
Pentaplex Simultaneous Multifunction: Live, Recording, Playback, Backup and Remote Access
Alarms No
Recording Method Manual, Scheduled, Motion Detection, Alarm
External Backup USB Memory / USB HDD / USB CD-RW / USB DVR-RW
Internal Memory 1 3.5" SATA HDD up to 6TB (not included)
Communication 2 x USB 2.0 / 1 x RJ45 10/100/1000 (Ethernet)
Remote Access Web Browser, IVMS 4500 Smartphone App and IVMS 4200 PC Software
Power supply DC 12V, 50/60Hz
Dimensions/Weight 48 (H) x 315 (W) x 240 (D) mm / 1.0 Kg (without HDD)

2MPX 1080P 2.8MM H 265 PoE IP VIDEO SURVEILLANCE CAMERA HWI-T221H

Hikvision Hiwatch series digital dome IP camera sku. HWI-T221H, FULL HD 1080p 2.0 Megapixel resolution, 4mm fixed lens and PoE power supply technology. OSD menu with adjustable functions: ATW, AWB, AGC, BLC, WDR 120 dB, 3D-DNR, brightness, sharpness, mirror.
It is very easy to use through the Internet Explorer browser and allows convenient remote control and management of the camera. The software provided with the camera is designed for integrated management and surveillance of multiple network cameras.

Dome camera with a white metal structure, installable indoors or outdoors (Waterproof IP67) with infrared illuminator with a real range of up to 30 meters of night vision. The dome shape makes the product installable on the ceiling or wall.

Main features

1/2.8” CMOS progressive scan 2 Megapixel sensor
Video Compression H.265+/H.265/H.264+/H.264
Max. 25/30fps@2M(1920×1080)
D-WDR digital, Day/Night(ICR), 3D-DNR, Mirror, AWB,AGC,BLC
PoE power technology (power and video over network cable)
Remote multiple access: Web viewer, IVMS-4500, HIK-Connect
4mm fixed optics
Infrared Distance: Max. IR LEDs Length 30m
ONVIF Compatibility Protocol
Protections: Waterproof IP67

Technical specifications

Room

Image Sensor: 1/2.8" progressive scan CMOS
MinimaColor Illumination: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
Auto Iris: No
Day & Night: IR cut filter
3D Noise Reduction DNR WDRDWDR
Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Lens

Fixed lens: 2.8mm
Aperture: F2.0
Field of View (FOV): Horizontal 86°, Vertical 46.5°, Diagonal 102.5°

IR

IR Range: Up to 30m
Wavelength: 850nm

Compression

Video compression: Main stream: H.265+/H.265/H.264+/H.264. Sub stream: H.265/H.264/MJPEG H.264
H264: Main Profile/High Profile/Baseline
H.265: Main Profile
Video Bit Rate: 32 Kbps to 8 Mbps


Resolution: 2MP
Main Stream Max. Frame Rate50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps (1920×1080, 1280×960, 1280×720)
Sub-stream Max. Frame Rate50Hz: 25fps (640×480, 640×360, 320×240); 60Hz: 30fps (640×480, 640×360, 320×240)
Image enhancement: BLC, 3D DNR
Basic functions: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable from client software or web browser
Day/Night: Auto, Scheduled, Day, Night

Network

Alarm Trigger: Motion detection, video tampering alarm, illegal access
Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Main functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
API: ONVIF (PROFILE S), ISAPI
Simultaneous Live View: Up to 6 channels
User / Host: Up to 32 users; 3 levels: Administrator, Operator and User
Client: iVMS-4200, Hik-Connect
Web Browser: IE8+, Chrome 31.0-44, Firefox 30.0-51

Interface

Communication: 1 RJ45 10M/100M self-adaptive Ethernet port

General

Working conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power supply: 12 VDC ± 25%, 5.5 mm coaxial power plug; PoE (802.3af, class 3)
Consumption: 12 VDC, 0.3 A, max: 3.5 W; PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 4.5 W
Protection index: IP67
Materials: Metal body; Plastic base
Dimensions: Ø 110 mm × 93.2 mm
Weight: (camera only) approx. 360g
