Kit Videosorveglianza Ip Cloud Dvr 8 Canali 8 Telecamere 5Mp Ahd Hd320 Gb Cavi
Kit Videosorveglianza Ip Cloud Dvr 8 Canali 8 Telecamere 5Mp Ahd Hd320 Gb Cavi
  • KIT VIDEOSORVEGLIANZA
  • KIT VIDEOSORVEGLIANZA SAFETYHOUSE

SKU: AHD8CH_8TEL_5MPX_8X20MT_320GB

Video Surveillance Kit Ip Cloud Dvr 8 Channels 8 Cameras 5Mp Ahd Hd320 Gb Cables

€215,00
€215,00
€260,00
Tasse incluse
Free shipping
Dedicated assistance
Payment by installments
Mark

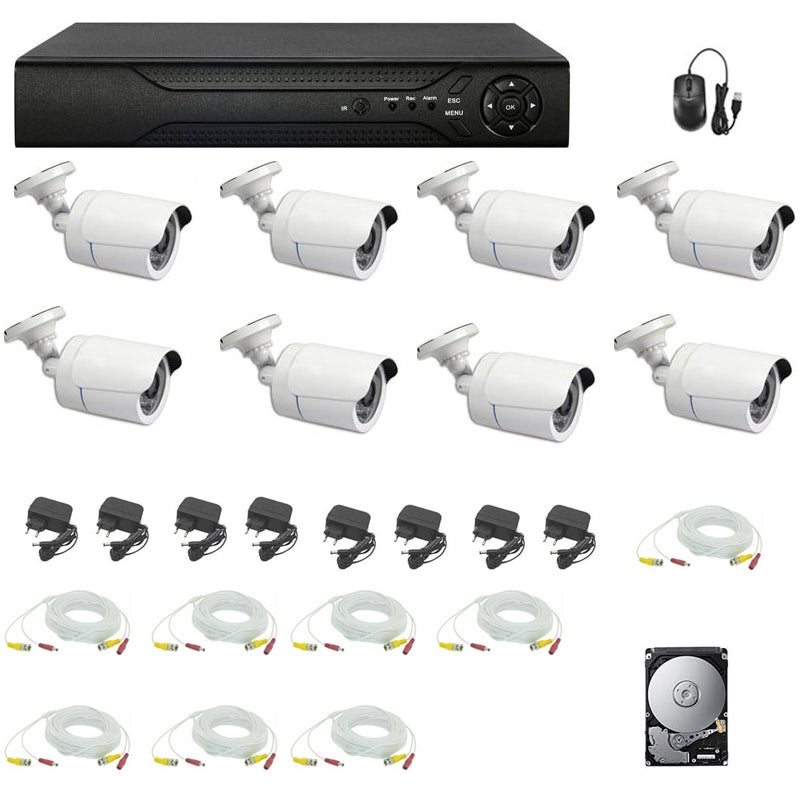

PROFESSIONAL VIDEO SURVEILLANCE KIT COMPRISING OF

  • 1 XDVR AHD 8 CHANNELS WITH CLOUD SYSTEM
  • 8 AHD 5 mpx CCD SONY 2.8 MM CAMERAS
  • 8 POWER SUPPLIES FOR CAMERA
  • 8 CAMERA CABLES 20 METERS
  • 1 HARD DISK 320 GB

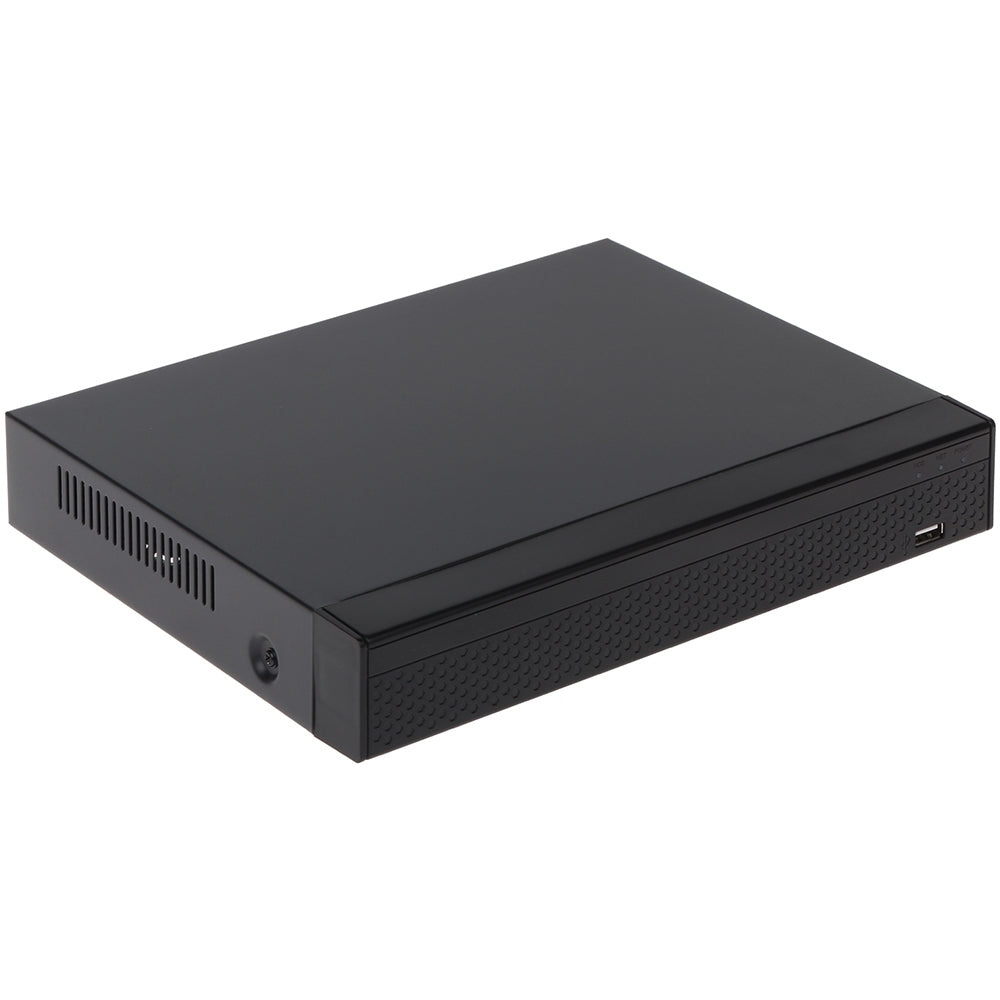

AHD DVR FEATURES PRODUCT OVERVIEW

The XVR is a hybrid networkable video recorder for analog and IP cameras. Compatible with AHD/CVI/TVI protocol for analog and with all IP communication protocols. It will be possible to connect both analog and digital cameras at the same time.

ANALOG/DIGITAL CHANNEL COMBINATION

Digital: 16 x 5Mpx/ 1080P/960P/720P

By inserting a standard 2.5'' or 3.5'' SATA hard disk, you will be able to record images and then review them from a monitor, PC or the app bundled with the device.

It is possible to schedule recording for time intervals (hours, days, weeks) and for motion detection.

Send emails in case of alarms (motion, network deactivation, cam deactivation, etc).

Professional product that works both locally with a PC using a normal browser or remotely with a Smartphone and Tablet using the appropriate free application.

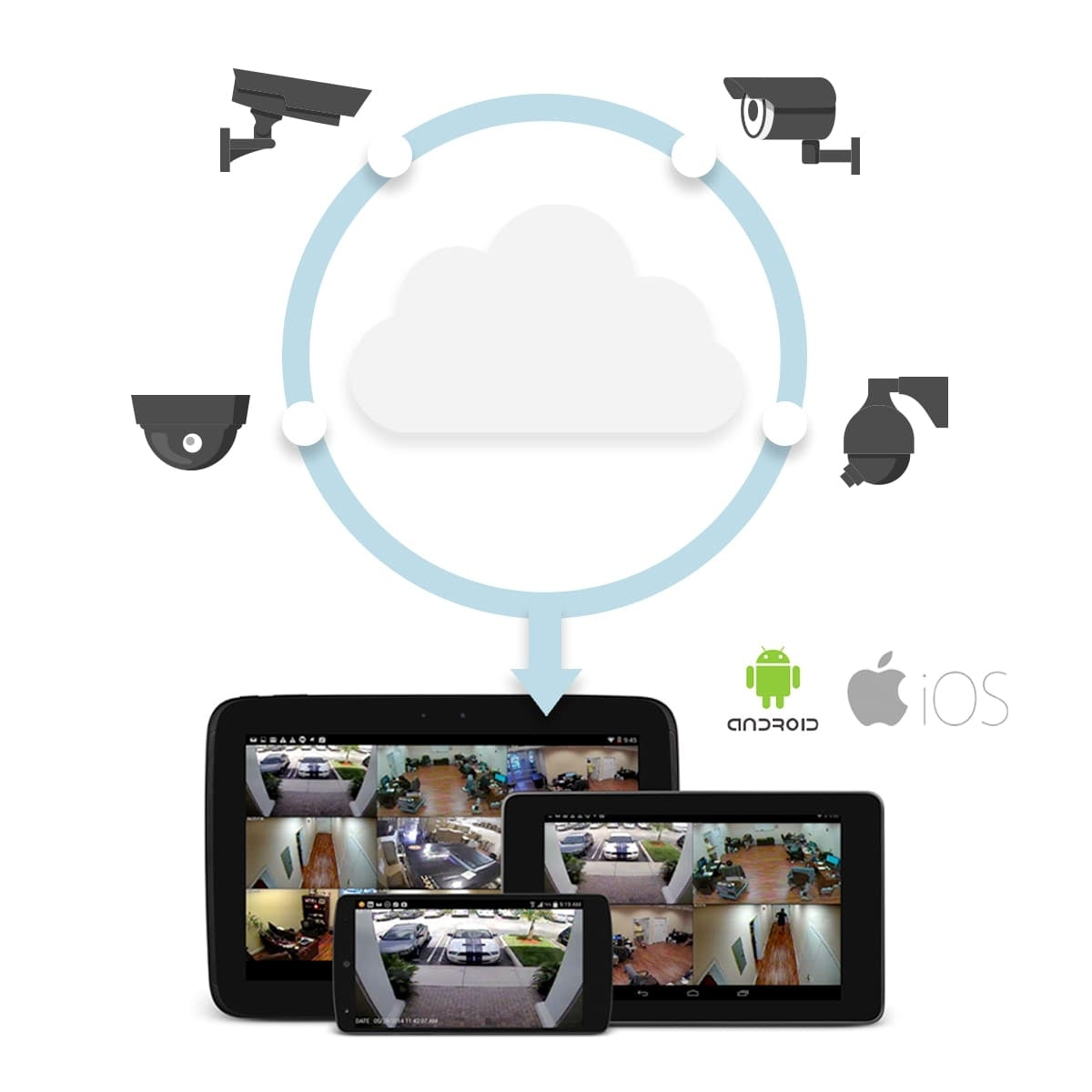

P2P compatible app
Thanks to the app it will be possible to see all the cameras of the NVR on your smartphone/tablet simply by adding it via QR CODE.

Transmission Standard : AHD , Analog , CVBS , HD-CVI , HD-TVI , IP , ONVIF

Channels : 16
Maximum Resolution : 5 MP
Hybrid Devices : Up to 16
Hybrid Device Combinations : 2 BNC 5MP+7 IP 5MP, 4 BNC 5MP+5 IP 5MP, 6 BNC 5MP+3 IP 5MP
IP Mode : 16CH 5MP@25fps
IP Bandwidth : Up to 48Mb
Video Compression : H264 , H265
Artificial Intelligence : Yes
Artificial Intelligence Channels : 1
AI Features : Face Comparison, Facial Recognition, Human Detection
AI Search : Blacklist-Whitelist, Specific Event, Faces from Library and USB Upload
Recording Mode : Alarm Input, AI, Manual, Schedule, Motion Detection
Recording Quality : 2MP-N@15fps, 3MP-N@10fps, 4MP-N@8fps, 5MP-N@6fps
Simultaneous Playback Channels : 2CH 1080P@30fps, 7CH 1080N@15fps, 7CH 5M_LITE@6fps, 8CH 720P@15fps, 8CH 960H@25fps
Simultaneous Playback Channels from App/VMS : 4
Data Streaming : Dual and adjustable
Multitasking : ND
Video outputs : BNC , HDMI , VGA
Audio Inputs : 2 RCA
Audio Outputs : 1 RCA
Alarm Inputs : 4
Alarm Outputs : 1
Alarm Detection : Artificial Intelligence, Motion Detection, Video Loss
Alarm Reporting : Email, FTP, App Notification, Pop-up Video, Beep, Alarm Output
USB ports : 2
Network Interface : RJ-45
Network Protocols : DDNS, DHCP, DNS, FTP, HTTP, NTP, P2P, PPPoE, RTCP, RTP, RTSP, SMTP, TCP/IP, UPnP
PTZ Control : APP, BNC, WEB Page
Menu Language : Italian, Multilingual
Permissions Management : Configurable for each User
Bitvision App for Remote Viewing : Android, iOS, Smart TV
VMS for PC Management : Windows (free), macOS (free)
Local Storage : 1 Hard Disk
Cloud Storage : Dropbox , Google Drive
Transmission Technology : P2P Cloud ( free )
Voltage : 12V
Amperage : 2A
Power Consumption : ≤ 6W (Without Hard Disk)
Dimensions : 260mm x 215mm x 43mm
Weight : 2 Kg (without Hard Disk)
Certifications : CE, FCC, RoHS

5 MPX CAMERA FEATURES

Compact AHD camera with CCD SENSOR, which incorporates the NIGHT&DAY function, meaning it is able to shoot in color in the presence of light and in black/white even in total darkness, thanks to the LEDs that provide illumination up to 35 meters away.

Very high resolution, this camera in fact has a resolution of 5 MP

It is equipped with a fixed 3.6mm lens so it is a wide angle, that is, the same focal length as the human eye in lateral expansion, that is, widened.

Technical specifications:

  • Sensor: CCD
  • Horizontal Resolution: 5 MPX
  • Lens and Minimum Illumination
  • Focal length (f): 2.8 mm Fixed Lens
  • Sensitivity: 0.001 Lux (0 Lux with IR LED ON)
  • IR Led ON: Below 10 Lux with CDS
  • IR Viewing Distance: 30-35m (approx.)
  • TV System: PAL
  • Synchronization: Internal
  • Power supply: 12V DC / 400mA
  • Protection standard: IP66
  • Working temperature: -10°C~+50°C
  • 180° swivel bracket with internal cable passage.
