Video Surveillance Kit Ahd 6 Infrared Ahd Cameras 5 Mpx Ip Dvr 8 Channels Hd 320 Gb

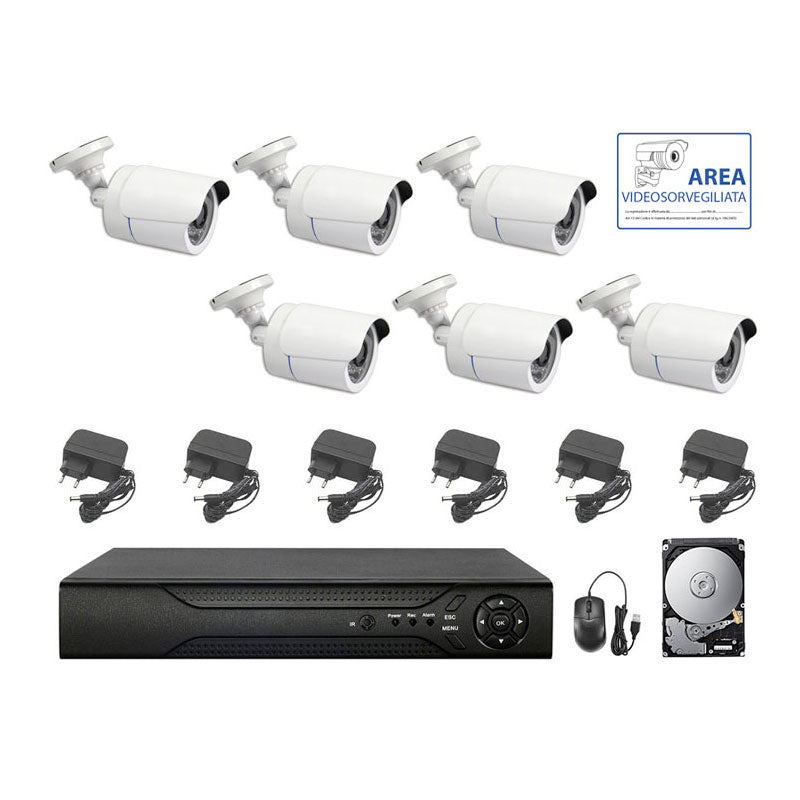

PROFESSIONAL VIDEO SURVEILLANCE KIT COMPRISING:

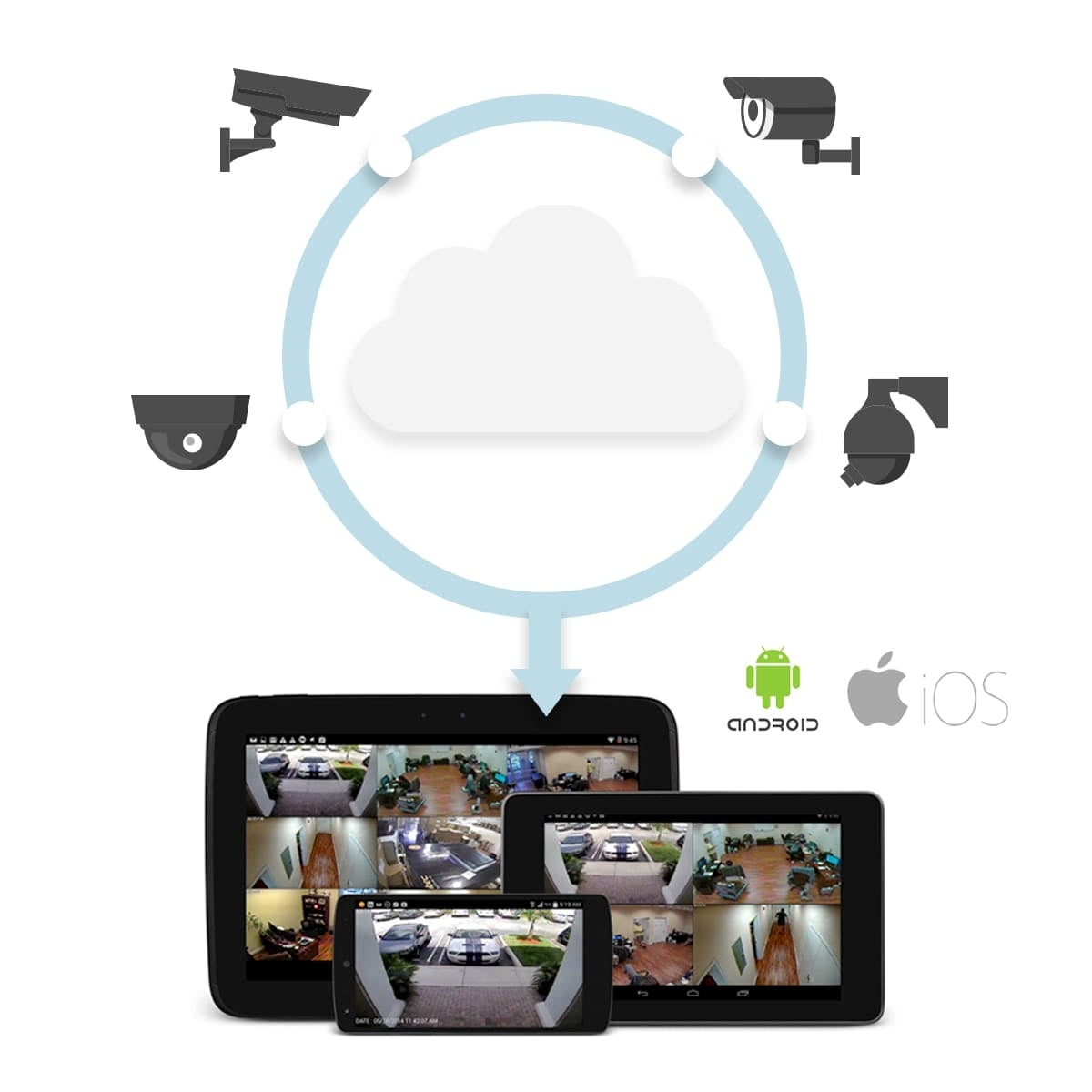

• 1x 8 Channel AHD XDVR with Cloud System
• 6x AHD 5 mpx CCD SONY 2.8 MM cameras

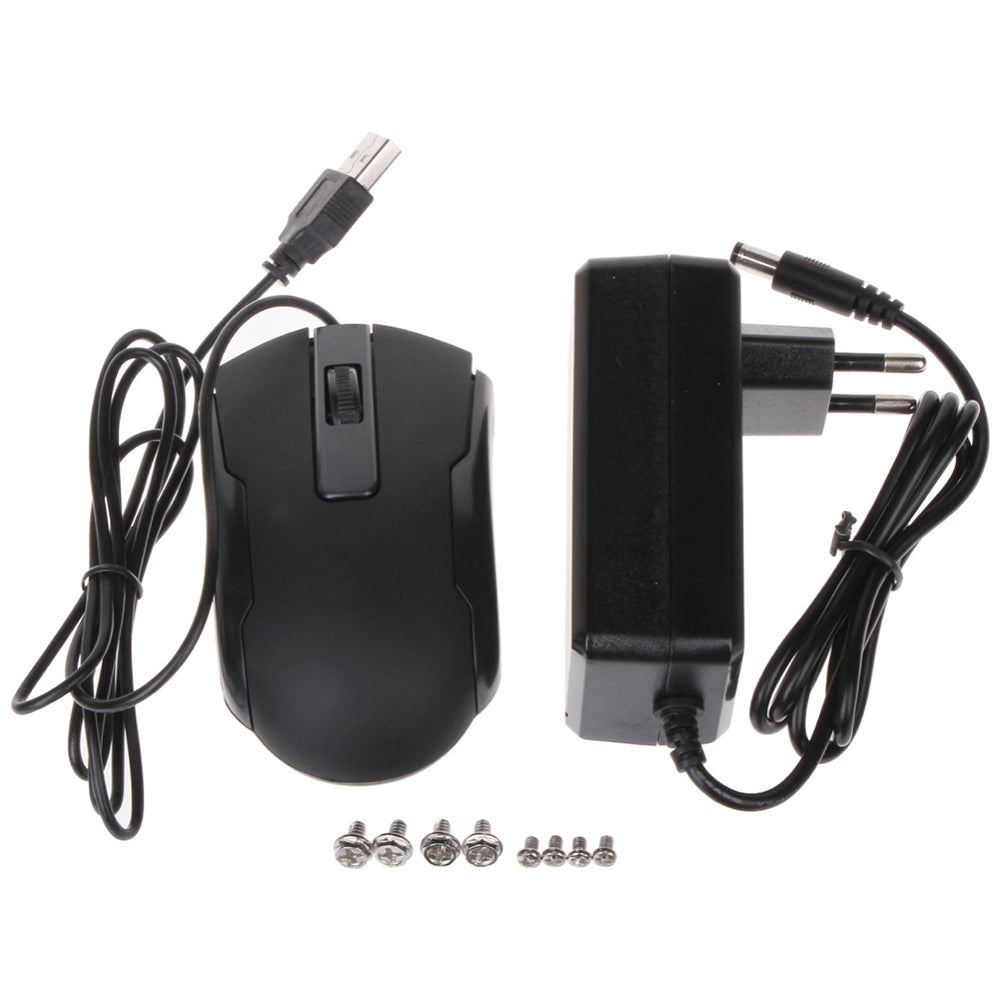

• 6x Camera Power Supplies

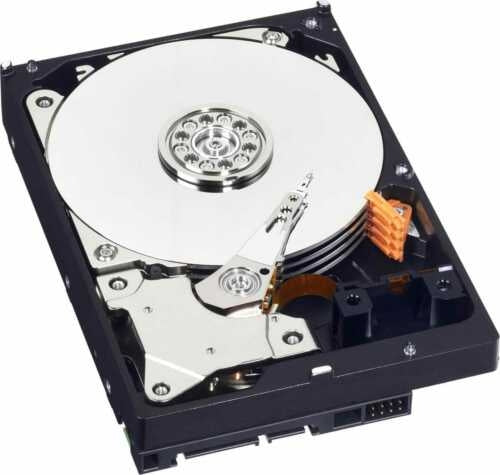

• 1x 320GB Hard Disk

AHD DVR FEATURES

AHD (Analog High Definition) is an HD video transmission system over analog coaxial cable that allows HD transmission over long distances but at a very low cost to meet the requirements of any type of installation, from the simplest to the most complex.

The new AHD video surveillance DVR is a very modern video recorder in hybrid technology with professional features, therefore capable of supporting different operating configurations, namely: it manages up to 4 AHD video surveillance cameras with a max HD resolution of 5mpx, or as many as 8 FULL-HD IP cameras WITH 5.0 Mpx resolution (5mpx)

High Definition AHD DVR

Hybrid AHD DVRs, compared to traditional video surveillance DVRs that could only record low-quality video streaming, generally in the old "D1" standard, of around 700 horizontal lines, or just 414,720 pixels, can instead support resolutions far superior to even 1,000,000 pixels like our AHD DVR 8008 which is capable of recording the new AHD cameras with standard coaxial connection without introducing any deterioration of the images. In particular, our DVR supports up to 8 AHD cameras with full "HD" resolution, or alternatively up to 4 cameras for IP networks always with HD resolution and finally alternatively two IP cameras with very high definition and therefore with full FULL HD resolution (1080p) expressing even in these contexts a high frame rate of 25 frames per second for each single camera possibly interconnected.

AHD Technology

The advantage offered by DVRs and AHD cameras is easily evident in that this technology, despite its high performance, is still fully compatible with traditional analog video signal transmission systems, generally based on the common RG59 75 ohm coaxial cable. Therefore, this technology makes it possible to immediately replace an old low-performance video surveillance system with a modern AHD video surveillance system, simply by reusing the old coaxial cables that were previously laid for the installation of traditional video surveillance systems without having to make any changes.

Furthermore, this professional video surveillance DVR is a "hybrid" device, in the sense that unlike common DVRs it can support different functional configurations, where each one is an alternative to the other which we have precisely exposed in the technical specifications below,

Technical specifications:

• HDTVI / HDCVI / AHD / CVBS / IP video format
• bnc resolution 8 BNC channels, (HDTVI / HDCVI / AHD / CVBS) up to 5MPX
• Hybrid configuration 8 channels including 4 in IP and 4 in BNC
• video output 1 HDMI Full HD, 1 VGA, 1 BNC (CVBS) Independent
• 4 Channel RCA Audio Input
• 1 Channel RCA audio output
• Two-way audio Reusing the audio input/output
• Video/audio compression H.265+ / H.265 / H.264+ / H.264 / G.711u
• Display resolution 1920x1080, 1280x1024, 1280x720, 1024x768
• Recording resolution 4Mpx Lite HDTVI / 1080p / 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF
• Main Stream Encoding 4Mpx Lite HDTVI /1080p (12 FPS) / 1080p Lite / 720p / VGA / WD1 / 4CIF / CIF (25 FPS)
• Extra Stream Coding WD1 / 4CIF (12FPS) / CIF (25 FPS)
• Simultaneous Péntaplex multifunction: Direct, Record, Playback, Backup and Remote Access
• Alarms No available
• Video analysis VCA: Line cross | Intrusion in the area | Audio exception
• Manual recording method, programmed, movement detection,
• USB Backup (Memory, HDD, CD-RW, DVR-RW) / Red
• Internal storage 1 HDD SATA 3.5" of 10TB (not included)
• Communication RS485 (PTZ) / 2 x USB (Radio and backup) / Remote control / RJ45 (Ethernet)
• Remote access Navegador Web, Smartphone App and CMS Control Center Software
• Power supply DC 12V / 1.5A
• Dimensions / Weight 45 (Al) x 315 (An) x 242 (Fo) mm / 2.0 Kg

5 MPX CAMERA FEATURES

Compact AHD camera with CCD SENSOR, which incorporates the NIGHT&DAY function, meaning it is able to shoot in color in the presence of light and in black/white even in total darkness, thanks to the LEDs that provide illumination up to 35 meters away.

Very high resolution, this camera in fact has a resolution of 5 MPx

It is equipped with a fixed 2.8mm lens so it is a wide angle, that is, the same focal length as the human eye in lateral expansion, that is, widened.

Technical specifications:

• Sensor: CCD
• Horizontal Resolution: 5MPX
• Lens and Minimum Illumination

• Focal length (f): 2.8mm Fixed Lens

• Sensitivity: 0.001 Lux (0 Lux with IR LED ON)

• IR LED

• IR Led ON: Below 10 Lux with CDS

• IR Viewing Distance: 30-35m (approx.)

• TV System: PAL

• Synchronization: Internal

• Power supply: 12V DC / 400mA

• Protection standard: IP66

• Working temperature: -10°C~+50°C

• 180° swivel bracket with internal cable passage
