Hikvision Full Color 2 Mp 1 Tb Video Surveillance Camera Kit

Prezzo regolare: €170,00
Prezzo di vendita: €170,00
Prezzo regolare: ~~€260,00~~

Tasse incluse

Free shipping

Dedicated assistance

Payment by installments

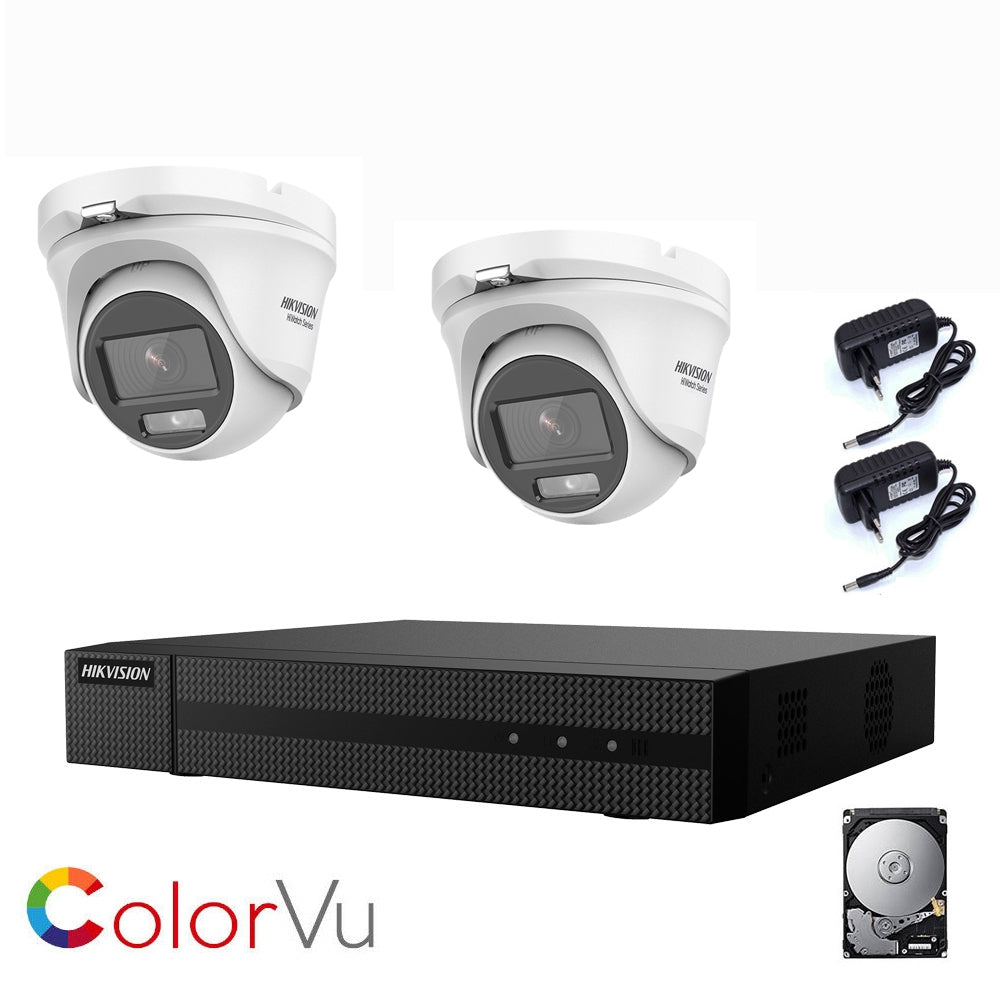

Hikvision Turbo HD 1080P video surveillance kit, with 4-in-1 TVI/AHD/CVI/CVBS technology, 4 channels + 2 Hikvision 2 Mpx colorvu bullet cameras contains:

1 HIKVISION DVR HWD-5104M
2 CAMERAS HWT-T129-M
2 POWER SUPPLIES FOR CAMERA
1 HARD DISK 1TB

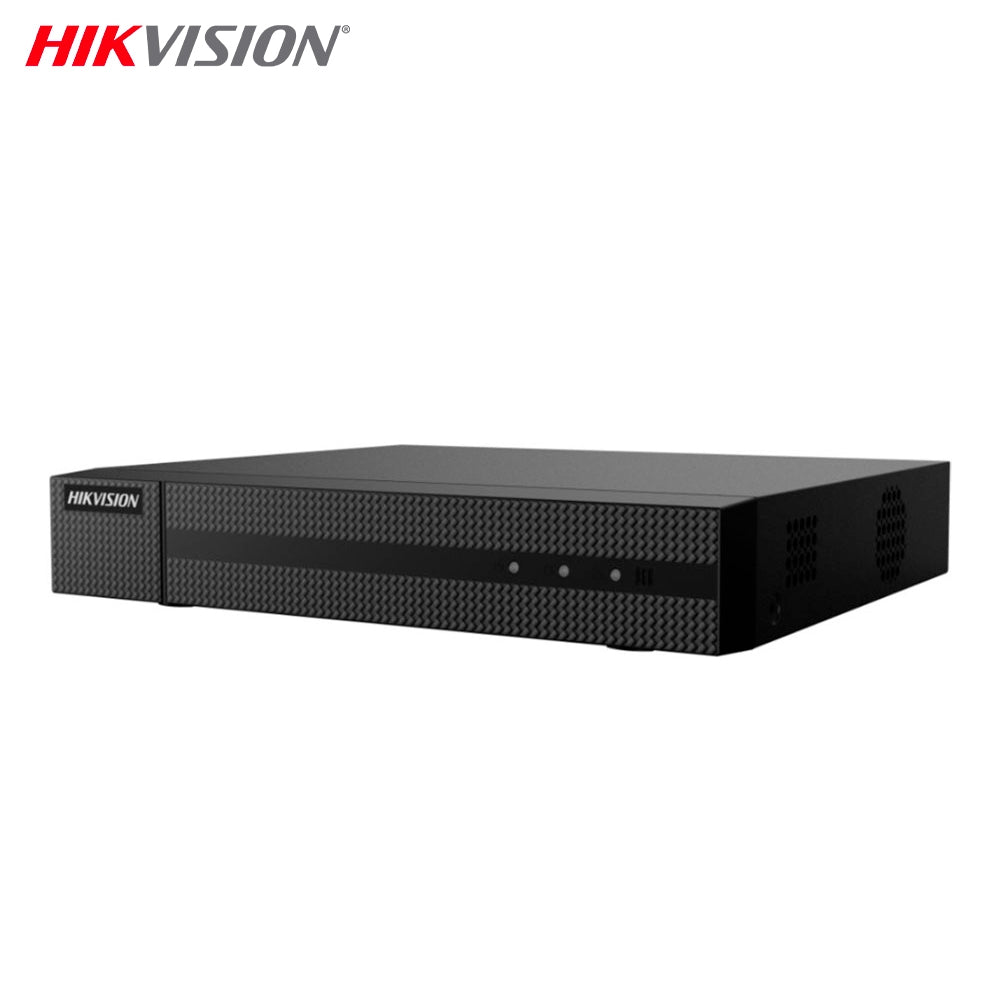

Analog Video Recorder HWD-5104M Hikvision Hiwatch series turbo HD 1080N 4 channels with 5IN1 hybrid technology multiple management CCTV standards: analog CVBS / HDCVI / HDTVI / AHD + IP @ 960p. Full HD resolution in recording at 1080N 4CH @ 25fps + 1 IP Cameras up to 960p. Thanks to the hybrid technology of the video recorder it is possible to update all the old video surveillance systems, giving the possibility of installing cameras at higher resolutions using the traditional micro coaxial wiring used for the installation of analog CVBS cameras.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.
Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Specifications

Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@960p, Onvif Standard
Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
Recording (REC & Live) on all channels in 1080N 8CH@25fps
H.264+/H.264 dual-stream video compression.
Simultaneous HDMI/VGA video output.
Supports 1 SATA HDD up to 6TB, 2 USB2.0
Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
Easy setup P2P QR scan with dedicated Hikvision Cloud service.
Multilingual menu, including Italian.

TECHNICAL DATA SHEET

STANDARD: AHD, HD-CVI, HD-TVI, PAL
VIDEO INPUTS: 4 BNC units - HD-TVI / AHD / HD-CVI / CVBS
VIDEO OUTPUTS: 1 HDMI unit 1 VGA unit
AUDIO INPUTS: 1 unit CINCH
AUDIO OUTPUTS: 1 unit CINCH
IMAGE COMPRESSION METHOD: H.264 / H.264+
NUMBER OF COMPRESSION LEVELS: 6
RECORDED IMAGE RESOLUTIONS:

960 x 1080 - 1080N
1280 x 960 – 960p (IP)
1280 x 720 - 720p
960 x 576 - 960H
704 x 576 - 4CIF
640 x 480 - VGA

MAXIMUM OVERALL RECORDING SPEED:

100 fps @ 960 x 1080 px,
100fps @ 1280 x 720 px,
100fps @ 960 x 576px
100fps @ 704 x 576px
100fps @ 640 x 480px

RECORDING SPEED ADJUSTMENT:

1 ... 25 fps @ 960 x 1080 px
1 ... 25 fps @ 1280 x 720 px
1 ... 25 fps @ 960 x 576
1 ... 25 fps @ 704 x 576
1 ... 25 fps @ 640 x 480 px
to be assigned to each channel

MODE OF OPERATION:

4 x 1080N max. 25 fps + 1 x IP
4 x 720p max. 25fps + 1 x IP
All modes allow any combination of AHD-H, HD-CVI, HD-TVI, CVBS cameras

RECORDING MODE: Manual, motion detection, schedule
SUPPORTED HARD DRIVES: 1 x 6TB SATA
STORING THE BACKUP COPY ON EXTERNAL DEVICES: Storage on USB drives (pendrives)
SEARCHING AND PLAYING RECORDINGS:

Search for recordings on the timeline or file list. Playback: forward, fast mode, slow mode.
Playback from up to 8 cameras simultaneously

NETWORK INTERFACE: 1 x RJ-45 - 10/100 Base-T
NETWORK FUNCTIONS: Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
BITRATE: 32 ... 4096 kbps
NETWORK PROTOCOLS: TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
MOBILE ACCESS: Port: 8000 or cloud access
Android: Free iVMS-4500 or Hik-Connect App
iOS (iPhone): Free iVMS-4500 or Hik-Connect APP DEFAULT ADMINISTRATOR USERNAME / DEFAULT PASSWORD: admin / -
DEFAULT IP ADDRESS: DHCP or 192.168.1.64
BROWSER ACCESS PORTS: 80
PC APPLICATION ACCESS PORTS: Port: 8000 or cloud access - iVMS-4200 application
ACCESS DOORS VIA MOBILE APPLICATION: 8000
ONVIF PORT: 80
MULTI-OPERATION: Pentaplex
ALARM INPUTS / OUTPUTS: No
PTZ CONTROL: Hikvision HD-TVI coax compatible control
MOTION DETECTION: Screen division into zones: 22 x 18 detection fields
MOUSE SUPPORT: Yes
IR REMOTE CONTROL SUPPLIED: No
POWER SUPPLY: 12 V DC / 1.5 A (power supply included)
COLOR: Black
CASE: Metal
WEIGHT: 0.800 kg
DIMENSIONS: 260 x 222 x 45 mm
SUPPORTED LANGUAGES: English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Greek, Spanish, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
MANUFACTURER / BRAND: HIKVISION

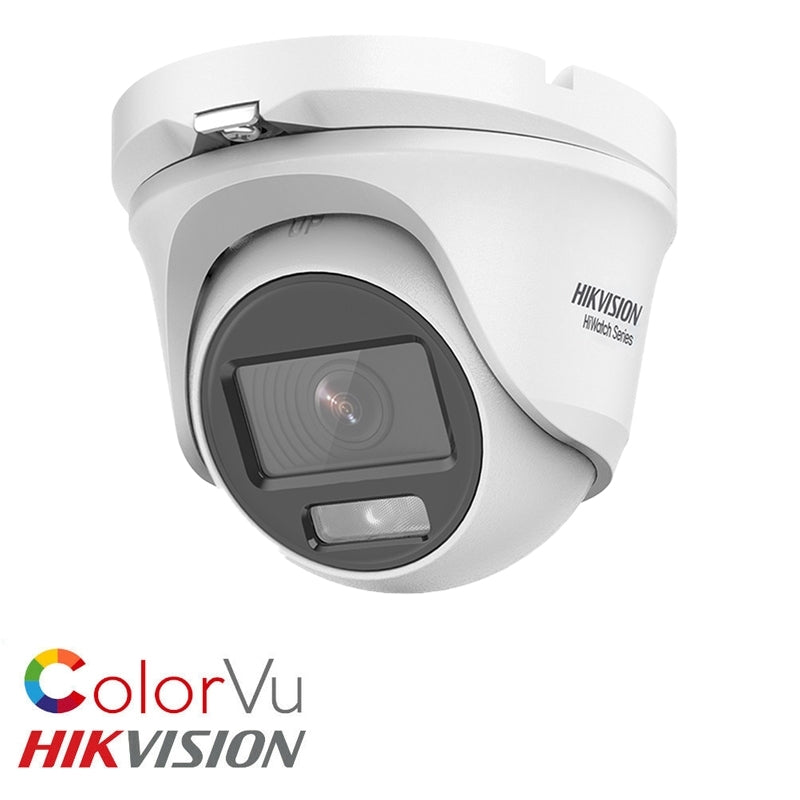

HIKVISION COLORVU 4IN1 AHD TVI CVI CVBS 2MP 1080P COLOR NIGHT VISION BULLET CAMERA Reference: HWT-T129-M

The cameras in this range are high-resolution 2 Megapixel analog CCTV cameras. With these cameras you can create a modern, high-performance video surveillance system while maintaining the simplicity and robustness of traditional analog video. ColorVu cameras are the ideal solution for upgrading existing coaxial cable CCTV systems and for creating new systems that are easy to install and maintain.

Main Functions:
