Hikvision DVR 4 Channel Camera Kit 4 Cameras 2 Mpx Hd 500 Gb

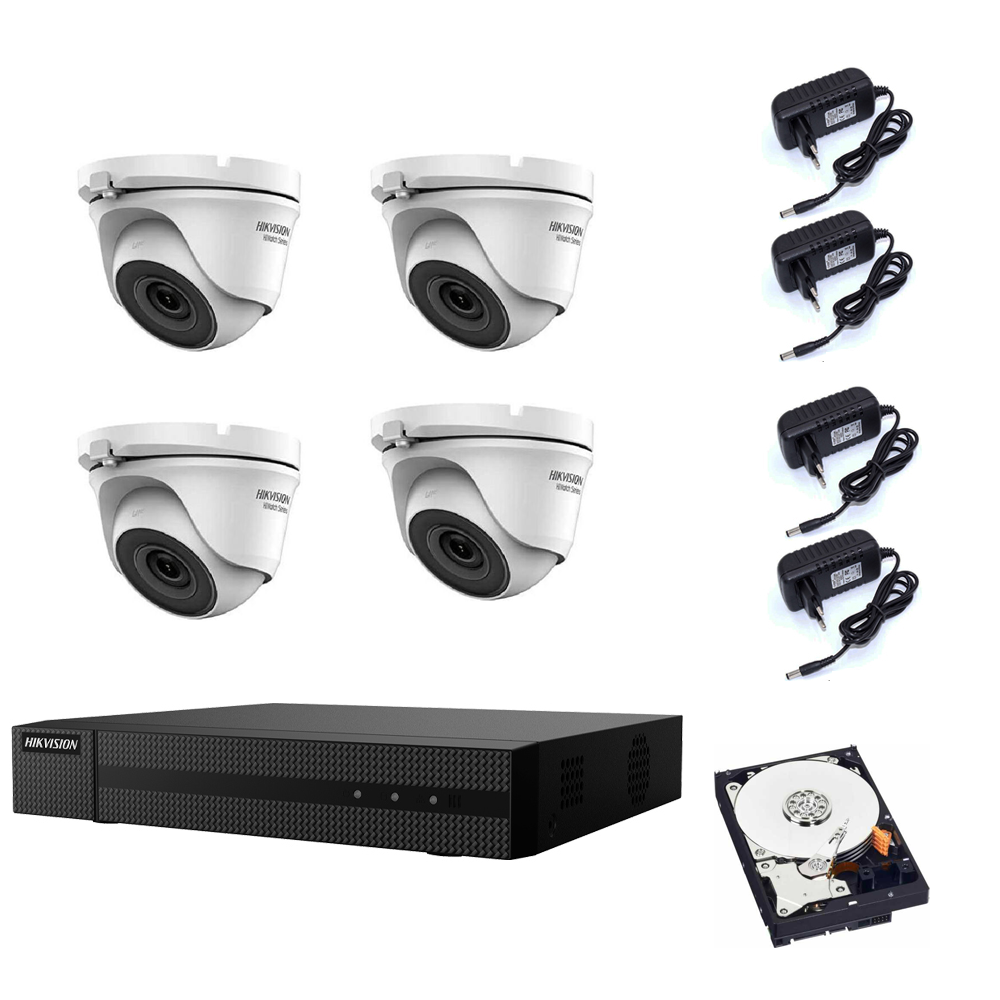

The video surveillance kit includes:

• 1x HWD-5104M Hikvision 4 channels BNC + IP, 1080P - 2 Mpx
• 4x HWT-B120-M Hikvision Hiwatch series 4in1 cameras, 2 Mpx, 2.8 mm, IR 20 meters, IP66
• 4x 2A Power Supplies

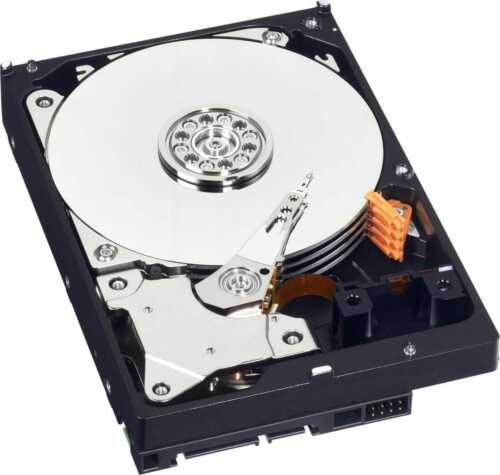

• 1x hard disk 500gb

DVR HWD-5104M Features

Video recorder sku. HWD-5104M Hikvision Hiwatch series turbo HD DVR, 1080P , 4 channels with 5IN1 hybrid technology: analog CVBS/HDCVI/HDTVI/AHD + IP@960p. FULL HD resolution in recording at 1080P 4CH@25fps + 1 IP Cameras up to 960p.

Thanks to the hybrid technology of the video recorder it is possible to update all the old video surveillance systems, giving the possibility of installing high resolution cameras using the traditional micro coaxial wiring used for the installation of analog CVBS cameras.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums.

Main features

• Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@960p, Onvif Standard
• Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
• Recording (REC & Live) on all channels in 1080N 8CH@25fps
• H.264+/H.264 dual-stream video compression.
• Simultaneous HDMI/VGA video output.
• Supports 1 SATA HDD up to 6TB (not included) , 2 USB2.0

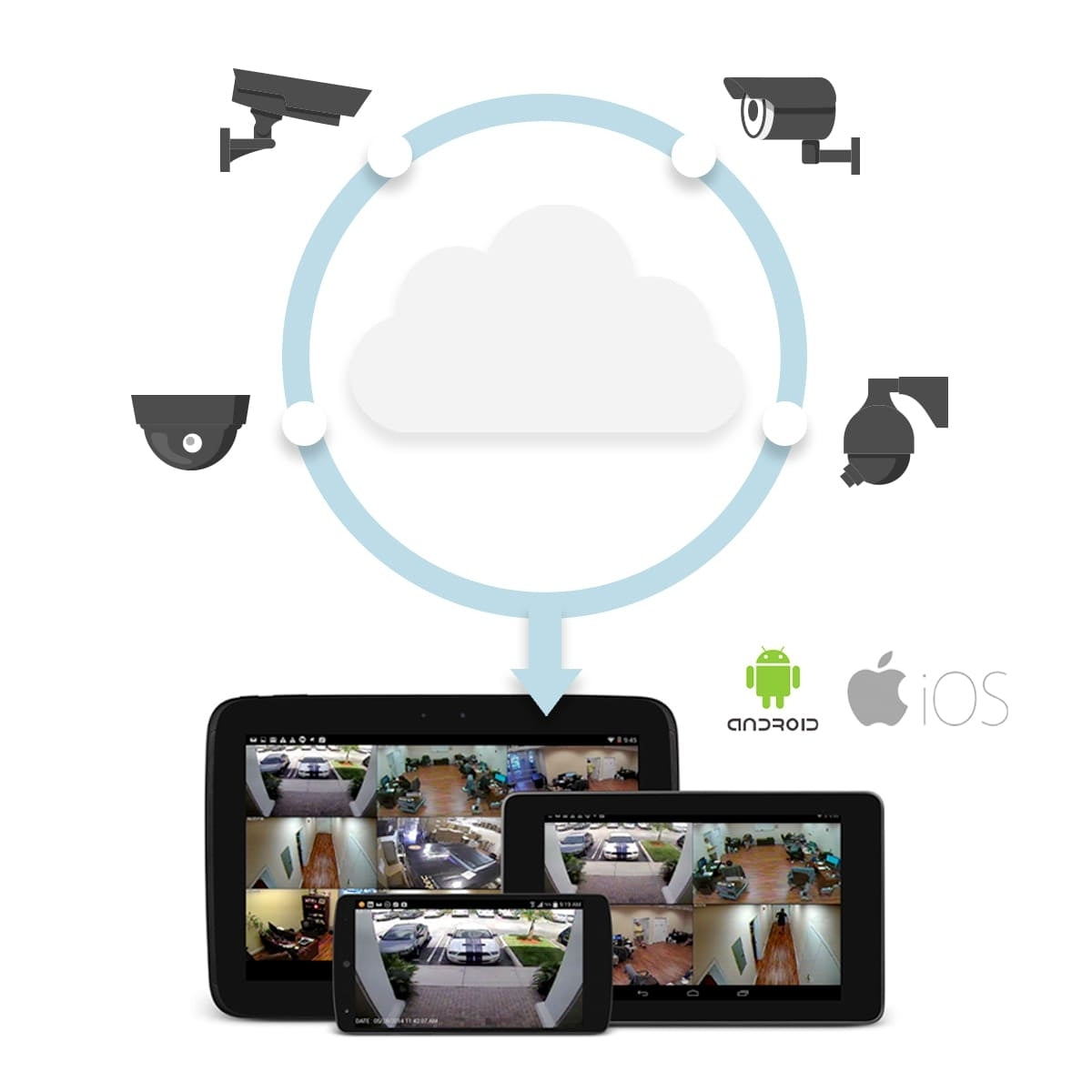

• Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
• Easy setup P2P QR scan with dedicated Hikvision Cloud service.
• Multilingual menu, including Italian.

Technical specifications

Brand: HIKVISION - Model: HWD-5104M Hikvision Hiwatch series

• STANDARD AHD, HD-CVI, HD-TVI, PAL
• VIDEO INPUTS 4 BNC units - HD-TVI / AHD / HD-CVI / CVBS
• VIDEO OUTPUTS 1 HDMI unit; 1 VGA unit
• AUDIO INPUTS 1 unit CINCH
• AUDIO OUTPUTS 1 unit CINCH
• IMAGE COMPRESSION METHOD H.264 / H.264+
• NUMBER OF COMPRESSION LEVELS 6
• RECORDED IMAGE RESOLUTIONS 960 x 1080 - 1080N; 1280 x 960 – 960p (IP); 1280 x 720 - 720p; 960 x 576 - 960H; 704 x 576 - 4CIF; 640 x 480 - VGA
• MAXIMUM OVERALL RECORDING SPEED 100 fps @ 960 x 1080 px; 100fps @ 1280 x 720 px; 100 fps @ 960 x 576 px; 100 fps @ 704 x 576 px; 100 fps @ 640 x 480 px
• RECORDING SPEED ADJUSTMENT 1 ... 25 fps @ 960 x 1080 px; 1 ... 25 fps @ 1280 x 720 px; 1 ... 25 fps @ 960 x 576; 1 ... 25 fps @ 704 x 576; 1 ... 25 fps @ 640 x 480 px to be assigned to each channel
• OPERATION MODES 4 x 1080N max. 25 fps + 1 x IP | 4 x 720p max. 25 fps + 1 x IP (All modes allow any combination of AHD-H, HD-CVI, HD-TVI, CVBS cameras)
• RECORDING MODE Manual, motion detection, schedule
• SUPPORTED HARD DRIVES 1 x 6 TB (not included)

• SATA BACKUP STORAGE ON EXTERNAL DEVICES USB DRIVE (pendrive) storage
• SEARCH AND PLAYBACK OF RECORDINGS Search for recordings on the timeline or file list. Playback: forward, fast mode, slow mode. Playback from up to 8 cameras simultaneously
• NETWORK INTERFACE 1 x RJ-45 - 10/100 Base-T
• NETWORK FUNCTIONS Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
• BITRATE 32 ... 4096 kbps
• NETWORK PROTOCOLS TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• MOBILE ACCESS Port: 8000 or cloud access | Android: Free iVMS-4500 or Hik-Connect App | iOS (iPhone): Free iVMS-4500 or Hik-Connect App
• DEFAULT USERNAME / DEFAULT ADMINISTRATOR PASSWORD admin / -
• DEFAULT IP ADDRESS DHCP or 192.168.1.64
• ACCESS DOORS VIA BROWSER 80
• PC APPLICATION ACCESS PORTS Port: 8000 or cloud access - iVMS-4200 application
• ACCESS DOORS VIA MOBILE APPLICATION 8000
• ONVIF PORT 80
• MULTI-OPERATION Pentaplex
• ALARM INPUTS / OUTPUTS No
• PTZ CONTROL Control compatible with Hikvision HD-TVI coax
• MOTION DETECTION Screen division into zones: 22 x 18 detection fields

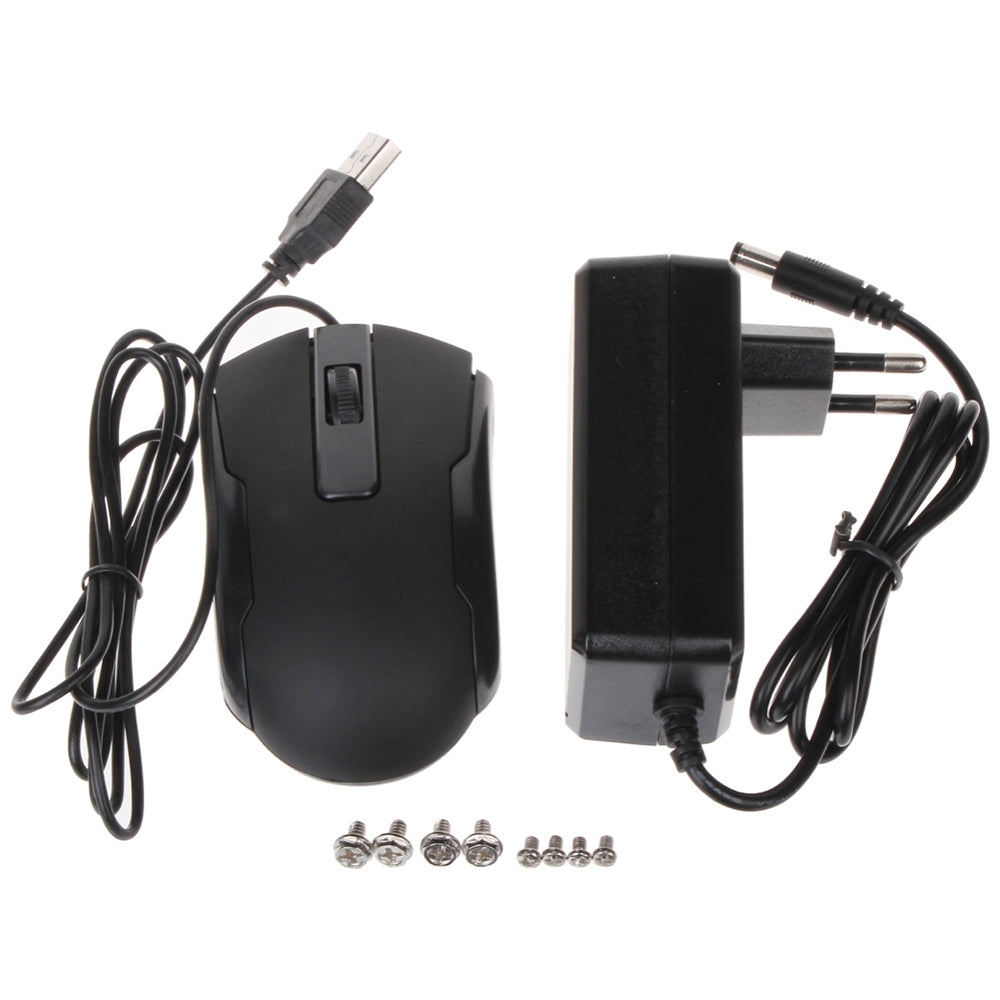

• MOUSE SUPPORT Yes
• IR REMOTE CONTROL SUPPLIED No
• POWER SUPPLY 12 V DC / 1.5 A (power supply supplied)

• COLOR Black
• CASE Metal
• WEIGHT 0.800 kg
• DIMENSIONS 260 x 222 x 45 mm

• SUPPORTED LANGUAGES: Italian, English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Greek, Spanish, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian

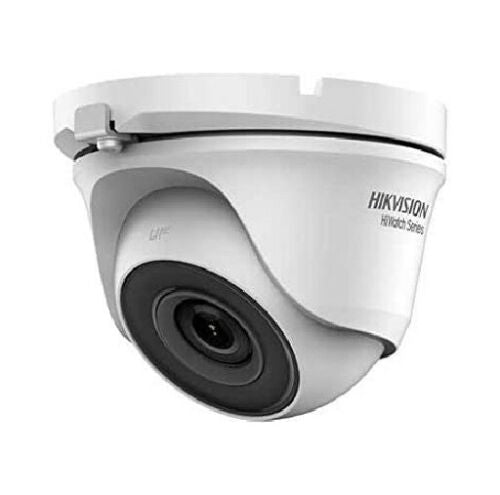

HWT-B120-M Cameras

• 2 Mpx high-performance CMOS
• FULL HD 1080p resolution (1920x1080p).
• 2.8mm fixed optics - EXIR 2.0, smart IR, up to 20m IR distance
• OSD menu,ATW, AWB, AGC, BLC, WDR digital, 2D-DNR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP66 resistance grade.
• DC12V power supply.

Brand: HIKVISION - Model: HWT-T120-M

IMAGE SENSOR 2 Mpx high-performance CMOS
RESOLUTION 1920 (H) × 1080 (V)
MIN. ILLUMINATION Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
SHUTTER TIME PAL: 1/25 s to 1/50, 000; NTSC: 1/30 s to 1/50, 000 s
OPTIC 2.8 mm
VIEWING ANGLE 103°
M12 OBJECTIVE
DAY & NIGHT IR cut filter
SYNCHRONIZATION Internal synchronization
FRAME RATE PAL: 1080p@25fps; NTSC: 1080p@30fps
AGC Support
D/N MODE Auto/Color/BW (Black and White)
WHITE BALANCE ATW/AWB
BLC Support
DWDR (DIGITAL WIDE DYNAMIC RANGE) Support
LANGUAGE English
FUNCTIONS Brightness, Sharpness, DNR, Mirror, Smart IR
VIDEO OUTPUT 1 HD analog output
SWITCH BUTTON TVI / AHD / CVI / CVBS
OPERATING CONDITIONS -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
POWER SUPPLY 12 VDC ±15%
POWER CONSUMPTION Max. 4W
IP66 PROTECTION RATING
MATERIAL Metal
IR RANGE up to 20m
COMMUNICATION Up the coax, Protocol: HIKVISION-C (TVI output)
DIMENSIONS Ø 82.6 mm × 69.66 mm
WEIGHT 230g
