Hikvision Camera Kit 2 Cameras 5 Mpx DVR 4 Channels 5 Mpx HD 1 TB

Prezzo regolare: €202,00
Prezzo di vendita: €202,00
Prezzo regolare: ~~€220,00~~

Tasse incluse

Free shipping

Dedicated assistance

Payment by installments

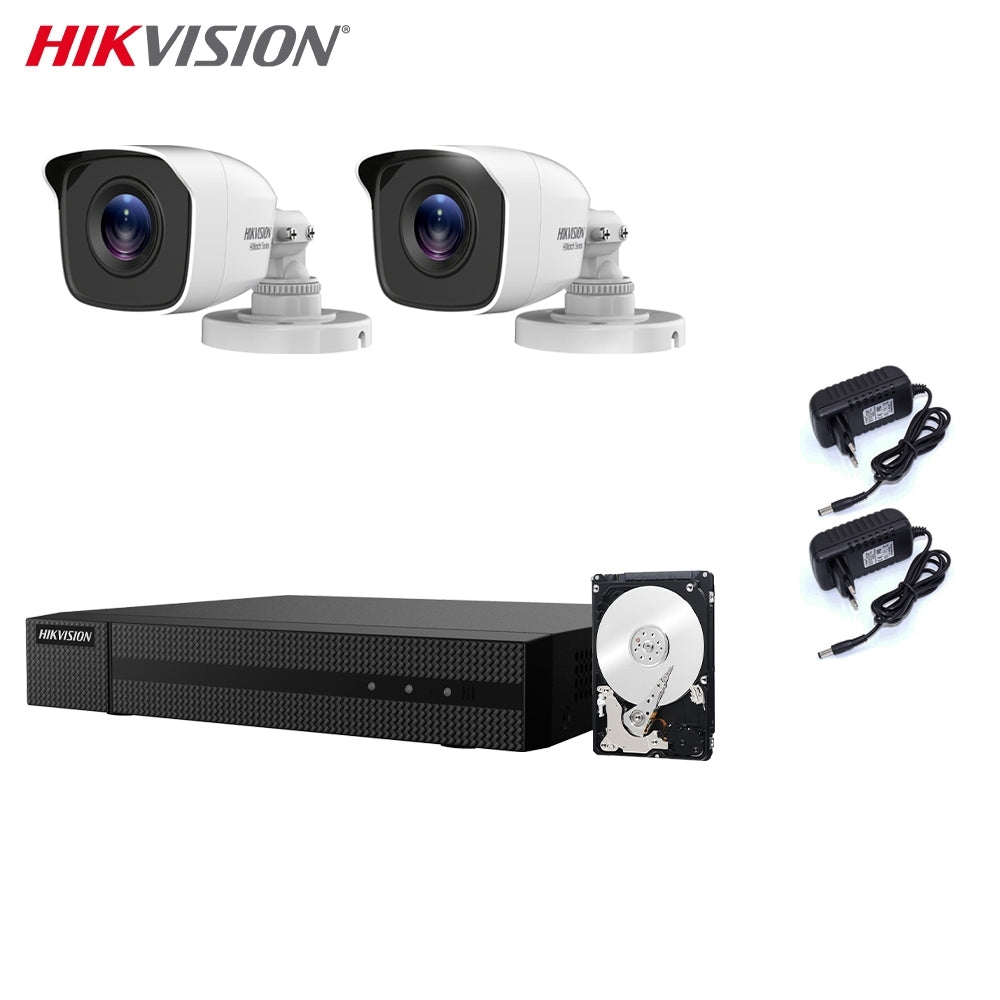

The video surveillance kit includes:

1x HWD-7104MH-G Hikvision 5in1, 4 channels BNC + IP, Ultra HD 4K - 8 Mpx
2x HWT-B150-M Hikvision Hiwatch series 4in1 cameras, 5Mpx, 2.8 mm, EXIR LEDs 30 meters, IP66

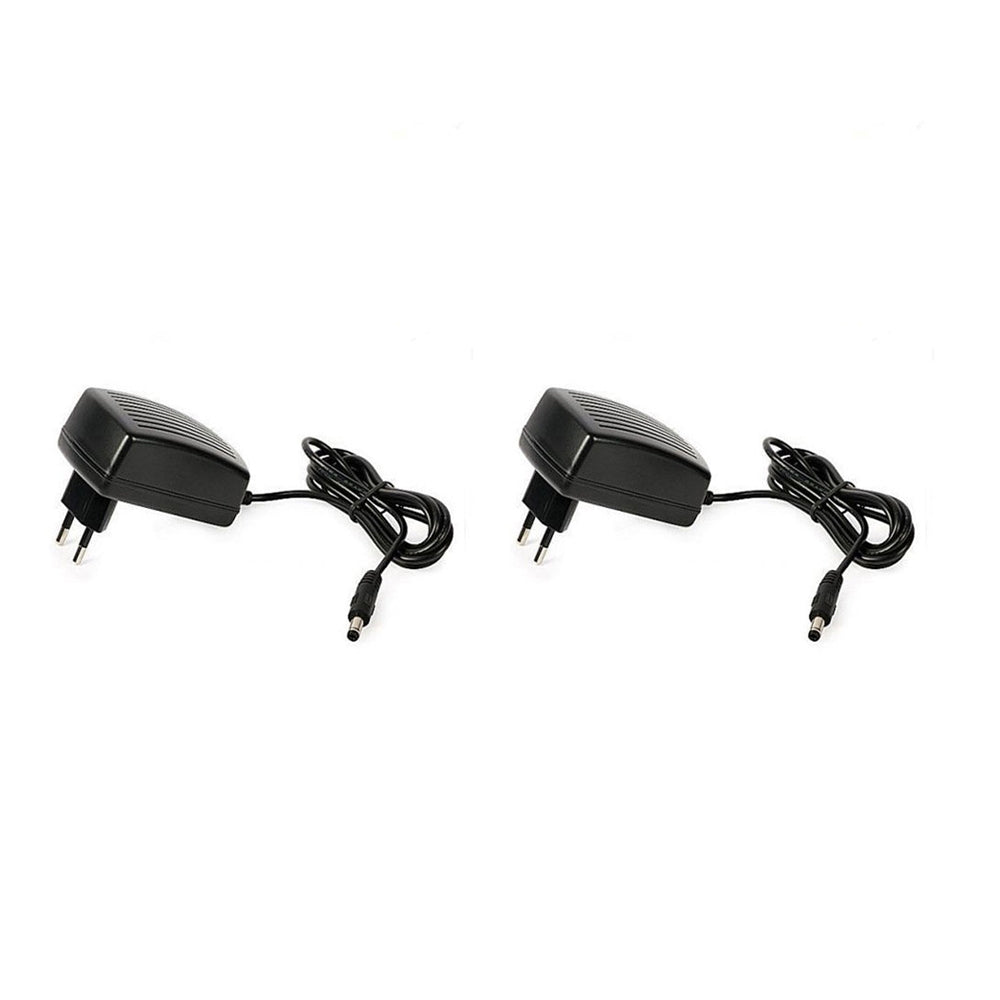

2x 2A Power Supplies
1x 1TB HARD DRIVE

Technical Data Sheet

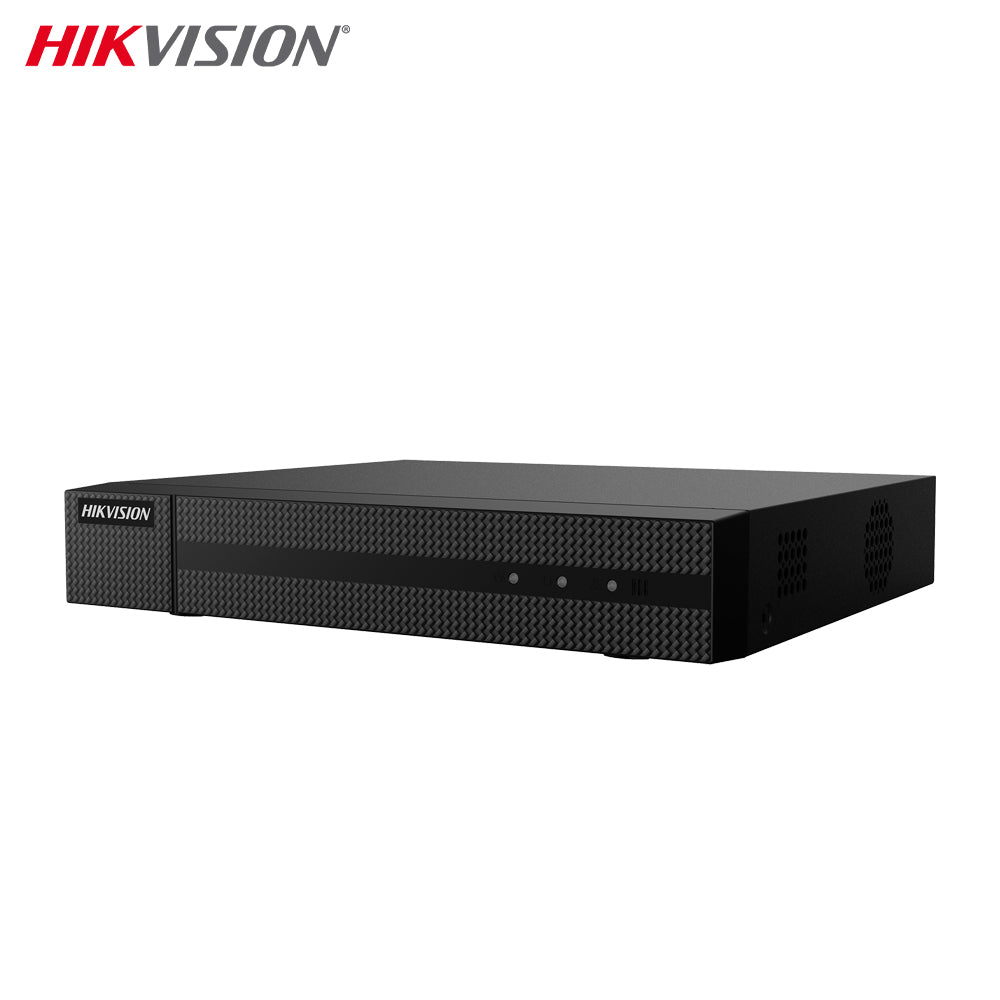

HWD-7104MH-G Video Recorder

Hikvision 4-channel analog video recorder sku. HWD-7104MH-G2 Hiwatch series turbo Ultra HD 4K up to 8Mpx with 5IN1 hybrid technology multiple management CCTV standards: analog CVBS / HDCVI / HDTVI / AHD + IP @ 8Mpx. Ultra HD resolution in recording on all channels up to 8Mpx @ 8fps + 4 IP Camera. Thanks to the hybrid technology of the video recorder it is possible to update all old video surveillance systems, giving the possibility of installing cameras at higher resolutions using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. Video recording is processed by a new video compression system identified as H.265 + codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums, etc.

Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@8Mpx, Onvif Standard
Supported HD-TVI resolutions: 8Mpx@8fps, 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
AHD resolution supported: 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
HDCVI resolution supported: 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
Supported CVBS resolution: 960H, 700TVL@25/30fps.
Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
Recording (REC & Live) on all channels in 4k ultra hd resolution 8Mpx@8fps
H.265+/H.265/H.264+/H.264 dual-stream video compression.
Simultaneous HDMI/VGA video output.
Supports 1 SATA HDD up to 10TB, 2 USB (front and rear USB 2.0 port)
Supports 4 audio inputs (BNC) via coaxial cable, HD-TVI only.
Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
Easy setup P2P QR scan with dedicated Hikvision Cloud service.
Multilingual menu, including Italian.
STANDARD: AHD, HD-CVI, HD-TVI, PAL
VIDEO INPUTS: 4 BNC units - HD-TVI / AHD / HD-CVI / CVBS
VIDEO OUTPUTS:

1 HDMI unit
1 VGA unit

AUDIO INPUTS: 1 unit CINCH
AUDIO OUTPUTS: 1 unit CINCH
IMAGE COMPRESSION METHOD: H.265+ Pro/H.265/H.264+/H.264

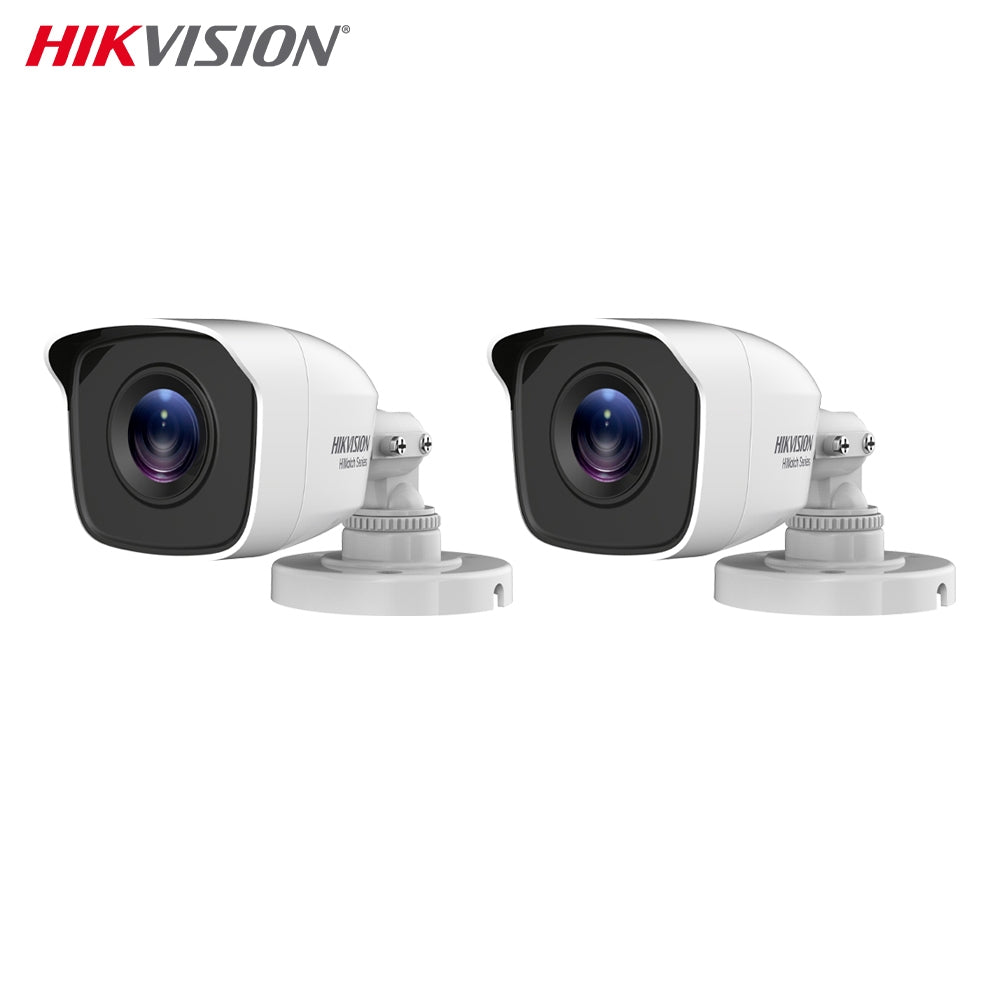

HWT-B150-M Cameras

Hikvisio Hiwatch series bullet camera n sku. HWT-B140-M 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), 4 Megapixel Ultra HD 2K 1440p resolution, 2.8mm fixed lens (100.2° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, digital WDR, 2D-DNR, brightness, sharpness, mirror. There is no delay during transmission and the original high quality image is maintained.
Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for approximately 5 s.

The integrated 3-Axis camera mount can be adjusted in three planes and allows the camera to be rotated in any direction. The camera meets the IP66 protection class.

Hikvision Hiwatch series bullet camera sku. HWT-B150-M 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), Full HD 5.0 Megapixel resolution, 2.8mm fixed lens (103° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, WDR digital, 2D-DNR, brightness, sharpness, mirror. During transmission there is no delay and the original high quality image is maintained. The change of the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for about 5 s.

The integrated 3-Axis camera mount can be adjusted in three planes and allows the camera to be rotated in any direction. The camera meets the IP66 protection class.
