Hikvision Hwt-B140-M Bullet Camera 4In1 TVi/Ahd/Cvi/Cvbs HD 1440P 4Mpx Ip66

HWT-B140-M Hikvision Hybrid Bullet Camera TVI / AHD / CVI / CVBS Ultra HD 2K 1440P 4Mpx 2.8mm

Hikvisio Hiwatch series bullet camera n sku. HWT-B140-M 4IN1 hybrid technology: HDCVI / HDTVI / AHD / CVBS (960H), 4 Megapixel Ultra HD 2K 1440p resolution, 2.8mm fixed lens (100.2° viewing angle). OSD menu with adjustable functions: ATW, AWB, AGC, BLC, digital WDR, 2D-DNR, brightness, sharpness, mirror. There is no delay during transmission and the original high quality image is maintained.
Changing the AHD / HD-CVI / HD-TVI / PAL standard is done by holding down the appropriate button for approximately 5 s.

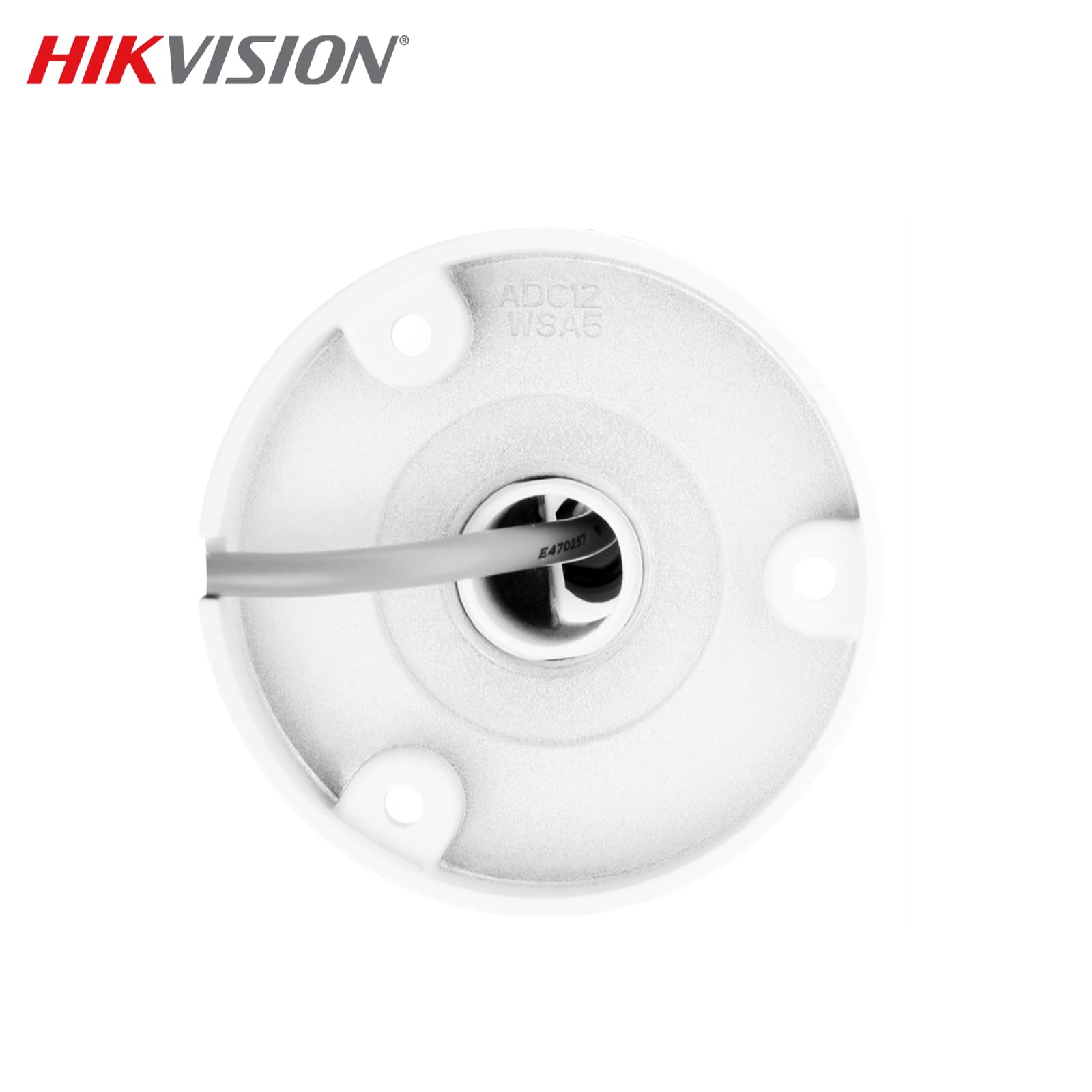

The integrated 3-Axis camera mount can be adjusted in three planes and allows the camera to be rotated in any direction. The camera meets the IP66 protection class.

Main features:

• 4 Mpx high-performance CMOS image sensor
• ULTRA HD 2K 1440p resolution (2560x1440p).
• 2.8mm fixed optics - EXIR 2.0, smart IR, up to 20m IR distance
• OSD menu,ATW, AWB, AGC, BLC, WDR digital, 2D-DNR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP66 outdoor resistance grade
• Power supply DC12V

Technical specifications:

Brand: HIKVISION - Model: HWT-B140-M_2.8

• IMAGE SENSOR 4 Mpx high-performance CMOS
• RESOLUTION 2560 (H) × 1440 (V)
• MIN. ILLUMINATION Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
• SHUTTER TIME PAL: 1/25 s to 1/50, 000 s - NTSC: 1/30 s to 1/50, 000 s
• OPTIC 2.8 mm
• HORIZONTAL FIELD OF VIEW 100.2°
• M12 OBJECTIVE
• DAY & NIGHT IR cut filter
• SYNCHRONIZATION Internal synchronization
• FRAME RATE PAL: 1440p@25fps; NTSC: 1440p@30fps
• AGC Support
• D/N MODE Auto/Color/BW (Black and White)
• WHITE BALANCE ATW/AWB
• BLC Support
• DWDR (DIGITAL WIDE DYNAMIC RANGE) Support
• LANGUAGE English
• FUNCTIONS Brightness, Sharpness, DNR, Mirror, Smart IR
• VIDEO OUTPUT 1 HD analog output
• SWITCH BUTTON TVI / AHD / CVI / CVBS
• OPERATING CONDITIONS -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• POWER SUPPLY 12 VDC ±15%
• POWER CONSUMPTION Max. 4W
• IP66 PROTECTION RATING
• MATERIAL Metal
• IR RANGE up to 20m
• COMMUNICATION Up the coax, Protocol: HIKVISION-C (TVI output)
• DIMENSIONS 165mm × 62mm × 58mm
• WEIGHT 290g
