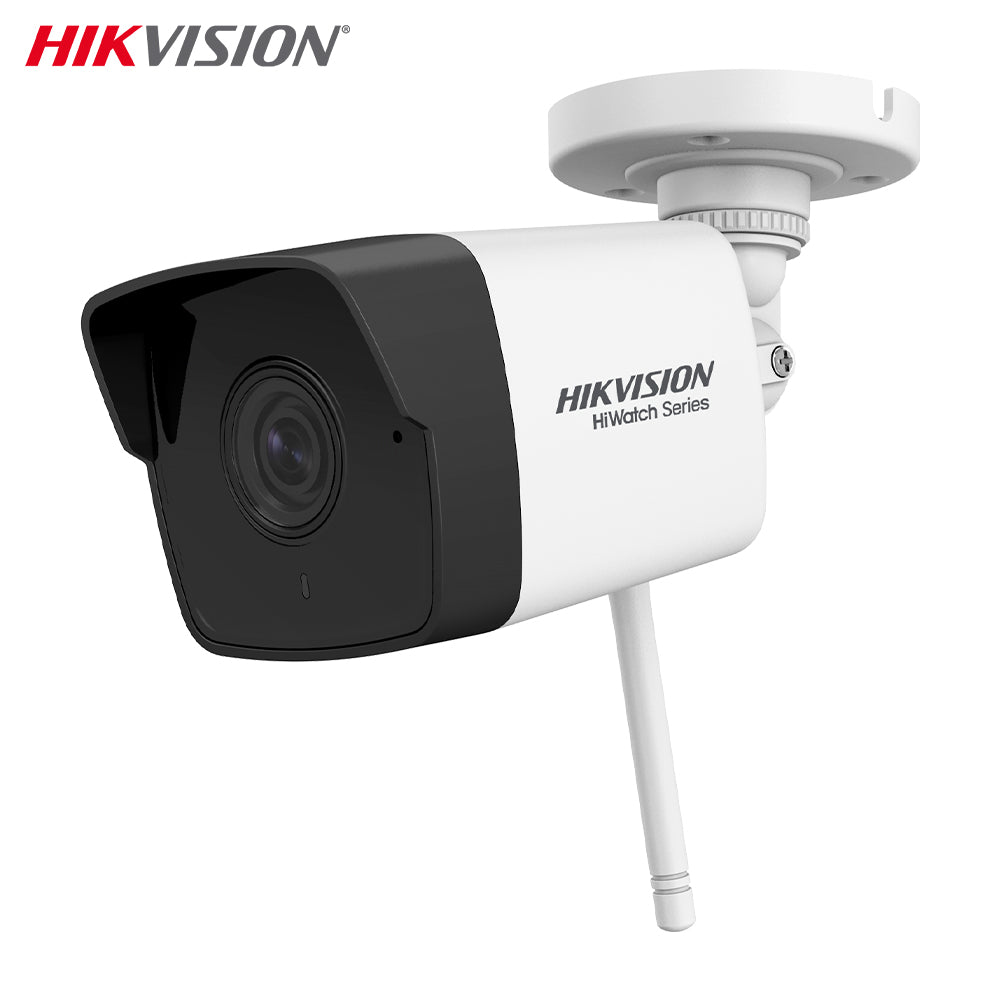

1080P 2.8mm IP66 Wi-Fi Camera | Hikvision HWI-B120-D/W

Hikvision Hiwatch series sku. HWI-B120-D/W IP Wifi bullet camera 1/2.8” CMOS, maximum resolution of 2Mpx (1920 x 1080p) FULL HD , 2.8mm fixed lens, 103° viewing angle, IR LED infrared illuminator range up to 30 meters and integrated Wi-Fi module - IEEE 802.11 b/g/n coverage up to 50 meters away from the network modem.
OSD menu with adjustable functions: ATW, AWB, AGC, BLC, DWDR digital, 3D-DNR, brightness, sharpness, mirror.

It is very easy to use through Internet Explorer browser and allows convenient remote control and management of the camera.
The camera can be managed remotely via app via smartphone. Easy configuration and installation of network parameters P2P – QR Code scan system with cloud service and free application “HIK-Connect” (available for Android and IOs systems).

The integrated 3-Axis camera mount can be adjusted in three planes and allows the camera to be rotated in any direction. The camera meets the IP66 protection class.

Main features

• 1/2.8” CMOS progressive scan 2 Megapixel sensor
• H.264 / MJPEG Video Compression
• Max 25/30fps@2M(1920×1080),
• OSD functions: D-WDR, Day/Night(ICR), 3D-DNR, Mirror, AWB,AGC,BLC
• Remote multiple access: Web viewer, IVMS-4500, HIK-Connect
• 2.8mm Fixed Optics - Infrared Distance: Max. IR LEDs Length 30m
• Support for Micro SD cards up to 128GB (local recording possible)
• Internal microphone (mono)
• P2P Installation and Configuration – Scan QR code
• Reduced camera size and footprint
• Waterproof IP66 protection grade

Technical specifications

STANDARD: TCP/IP
SENSOR: 1/2.8" Progressive Scan CMOS
SCREEN SIZE: 2.0 Mpx
SCANNING SYSTEM: Progressive
RESOLUTION: 1920 x 1080 - 1080p; 1280 x 1024 - 1.4 Mpx; 1280 x 960 - 1.3 Mpx; 1280 x 720 - 720p
OPERATION MODE: Main stream: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720; Sub stream: 704 x 576, 640 x 480, 352 x 288
LENS: 2.8mm
VIEWING ANGLE: 103 ° (manufacturer's data)
IR ILLUMINATION RANGE: 30 m
SIGNAL-TO-NOISE RATIO (S/N): > 50 dB
RS-485 INTERFACE: No
MEMORY CARD SLOT: No
IMAGE COMPRESSION METHOD: Main stream: H.264; Sub stream: H.264 /MJEP
ALARM INPUTS / OUTPUTS: No
AUDIO: Yes - Built-in microphone, mono sound
AUDIO COMPRESSION METHOD: G.711/G.722.1/G.726/MP2L2/PCM
AUDIO BIT RATE: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
MAIN STREAM RATE: 25 fps @ 1920 x 1080
NETWORK INTERFACE: 10/100 Base-T (RJ-45), Wi-Fi IEEE 802.11 b/g/n
FREQUENCY RANGE: 2.4GHz to 2.4835GHz
BAND CHANNEL: 20 MHz / 40 MHz
WIRELESS DISTANCE: Up to 50m (Performance varies based on actual environment)
NETWORK PROTOCOLS: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS - ONVIF
WEB SERVER: Built-in
MAXIMUM NUMBER OF ONLINE USERS: 20
SELECTED FEATURES: D-WDR - Wide Dynamic Range Illumination, 3D-DNR - Digital Image Noise Reduction, ICR - Mechanical Infrared Filter, BLC - Backlight Compensation, HLC - High Light Compensation (spot), AGC - Automatic Image Gain Adjustment, Auto White Balance
POWER SUPPLY: 12V DC / 420mA
POWER CONSUMPTION: 12 VDC, 0.4A, Max: 5 W
MOBILE ACCESS: Port: 8000 or cloud access; Android: Free iVMS-4500 or Hik-Connect App; iOS (iPhone): Free iVMS-4500 or Hik-Connect App
DEFAULT IP ADDRESS: 192.168.1.64
DEFAULT USERNAME / DEFAULT PASSWORD FOR ADMINISTRATOR: admin / -
BROWSER ACCESS PORTS: 80
ACCESS PORTS VIA PC APPLICATION: Port: 8000 or cloud access - HIK-connect application
ACCESS DOORS VIA MOBILE APPLICATION: 8000
ONVIF PORT: 80
CASE: Bullet – Plastic and metal
COLOR: White
PROTECTION RATING: IP66
OPERATING TEMPERATURE: -30°C ... + 50°C (-22 °F to 122 °F), humidity: 95%
WEIGHT: 0.395 kg
DIMENSIONS: 99 mm × 68 mm × 66 mm (3.9" × 2.7" × 2.6")
SUPPORTED LANGUAGES: Italian, English, Bulgarian, Croatian, Czech, Danish, Estonian, French, Greek, Spanish, Dutch, Lithuanian, Latvian, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian
MANUFACTURER / BRAND: Hikvision
