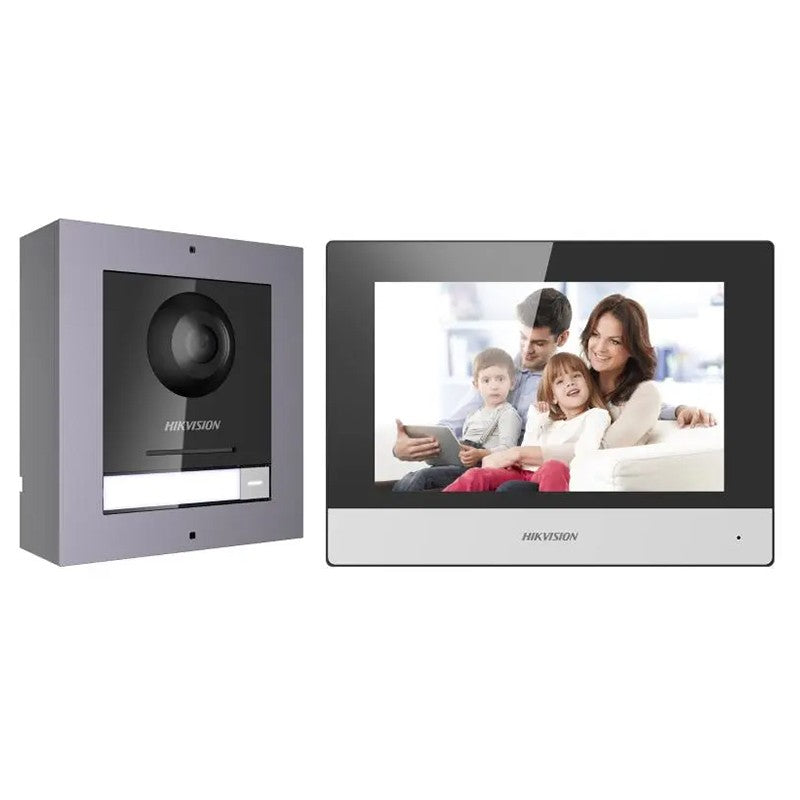

Hikvision DS-KIS602 Single-family IP Video Intercom Expandable Hikconnect App

Hikvision DS-KIS602 Expandable Single-family IP Video Intercom . This device offers powerful performance with a built-in processor and Linux operating system.

It has a high-resolution 7-inch TFT color display, quality audio, fast Ethernet connectivity, and is weatherproof with IP65 protection.

System Parameters

• Processor: Embedded MCU Processor
• Operating System: Embedded Linux Operating System

Display Parameters

• Display Resolution: 1024 × 600
• Display Screen: 7 inch TFT color screen

Audio Parameters

• Audio Compression Rate: 64 Kbps
• Audio Compression Standard: G.711 U
• Audio Input: Built-in omnidirectional microphone
• Audio Output: Built-in speaker
• Audio Quality: Noise Reduction and Echo Cancellation

Network Parameters

• Ethernet: Self-Adaptive Ethernet 10/100 Mbps
• Network Protocol: TCP/IP, RTSP
• Device Interfaces
• I/O Inputs: 4
• I/O Outputs: 2

General

• Power: 12 VDC/PoE (IEEE 802.3af)
• Power Consumption: ≤10W
• Operating Temperature: -40°C to +60°C (-40°F to 140°F)
• Operating Humidity: 10% to 95%
• Dimensions (W x D x H): 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Package Weight: 683g, Without Package: 355g
• IP Protection Level: IP65
• Memory: 128 MB
• Dimensions (W x D x H): 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")

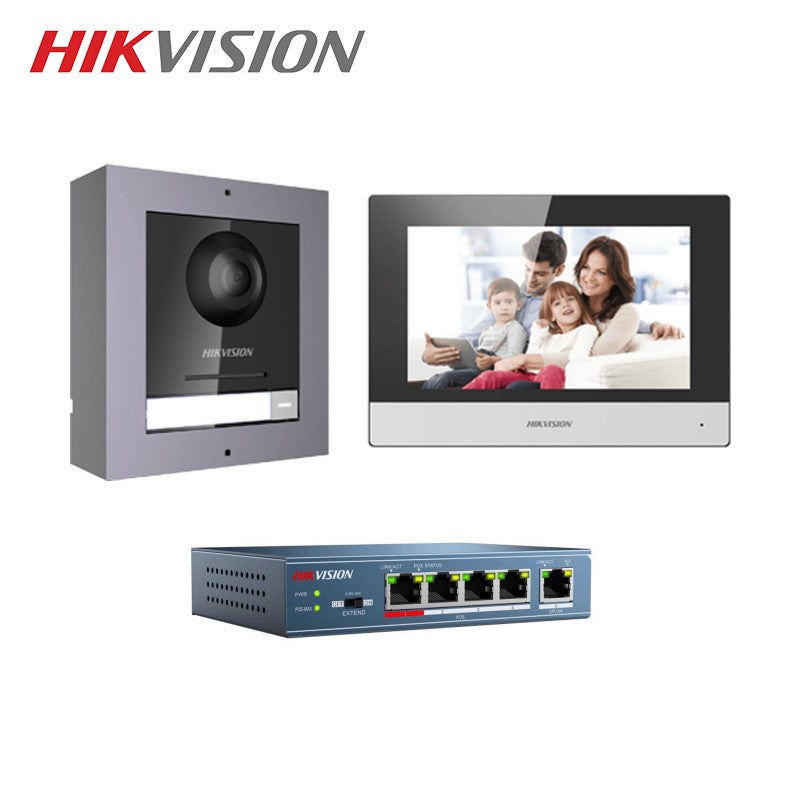

Package Contents:

• N.1 External plate for video intercom to be installed on the surface
• N.1 Surface support
• N.1 Internal Monitor
• N.1 16GB microSD card
• N.1 PoE Switch
