Hikvision DS-KIS101-P Single-family Video Intercom Kit Analogue Intercom 2 Wires 2 Megapixel

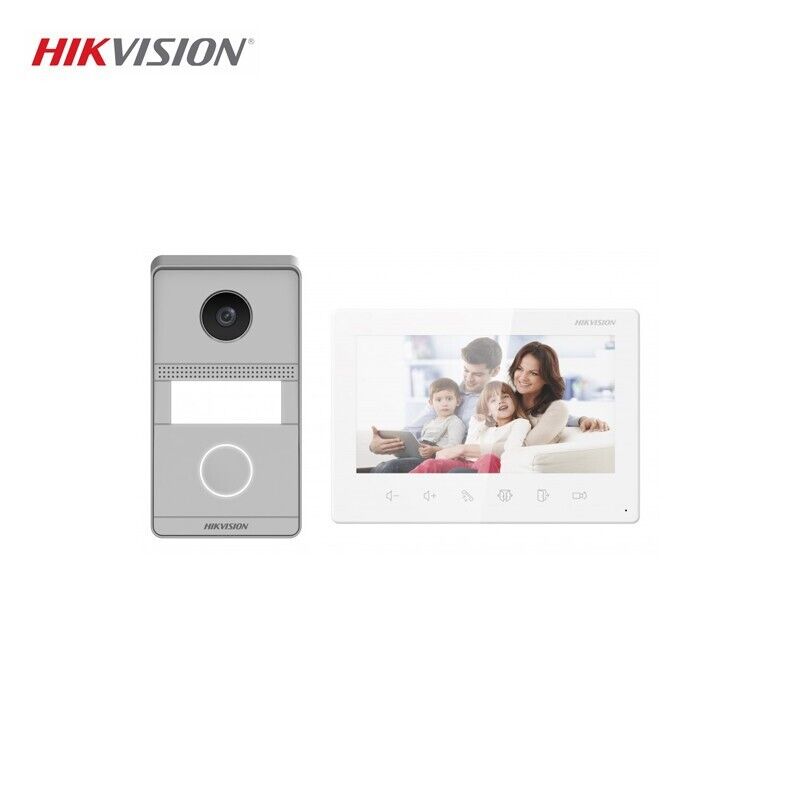

Kit consisting of: DS-KV1101-ME2/Flush external station of the built-in video intercom with 2 Mpx camera and DS-KH1200 internal monitor with 7″ TFT LCD screen and touch keypad. Anti-vandal aluminum alloy surface. Plug & Play installation.

• 2-wire plug & play, easy, convenient
• Surface Version
• Receive video call and unlock via internal unit
• 7 inch TFT screen with 1024*600 resolution
• 2MP HD color camera
• Color display, even in the dark
• One-touch call with tag
• IP65 water resistant, preventing water ingress
• IK7 vandal resistant
• 2 lock relays, power supply for one electric lock (Up to 12V 1A)
• DS-KH1200 INTERNAL MONITOR:
• Brand: Hikvision
• Model : DS-KH1200
• Operating System: Integrated analog operating system
• Display Type: 7″ FT Color
• Screen resolution: 1024 x 600
• Operation mode: 6 touch buttons
• Inputs: 3 x 2-wire input (2 for external stations and 1 for monitor), 1 x analog camera input
• Audio: Two-way audio with built-in microphone and speaker
• Connection: 2 wire analog
• Power supply: DC 48V / 9A max.
• Operating temp.: -10º C ~ +50º C
• Dimensions: 187 (I) x 137 (W) x 25.4 (L) mm
• Weight: 335 grams
• Color: White
• DS-KV1101-ME2/Flush OUTDOOR STATION:
• Brand: Hikvision
• Model: DS-KV1101-ME2/Flush
• Operating System: Integrated analog operating system
• Optical Sensor: 2 Mpx Low Light CMOS with IR and White LEDs
• Viewing angle: H: 100º, V: 69º
• Audio: Two-way audio with microphone and speaker
• Keypad: Mechanical call button with LED customization label
• Outputs: 1 x monitor input, 2 x relay outputs (power supply for lock up to 12V / 1A)
• Inputs: 4 x alarm inputs, 2 x button, 2 x door sensor, 1x tamper
• Communication: 2 threads
• Power supply: DC 48 V / 500 mA max. (via 2-wire monitor)
• Degree of protection: Suitable for outdoor IP65 – Vandal-proof IK07
• Material: Aluminum alloy
• Operating temp.: -30º C ~ +60º C
• Dimensions: 150 (I) x 82 (W) x 23.5 (L) mm
• Weight: 345 grams

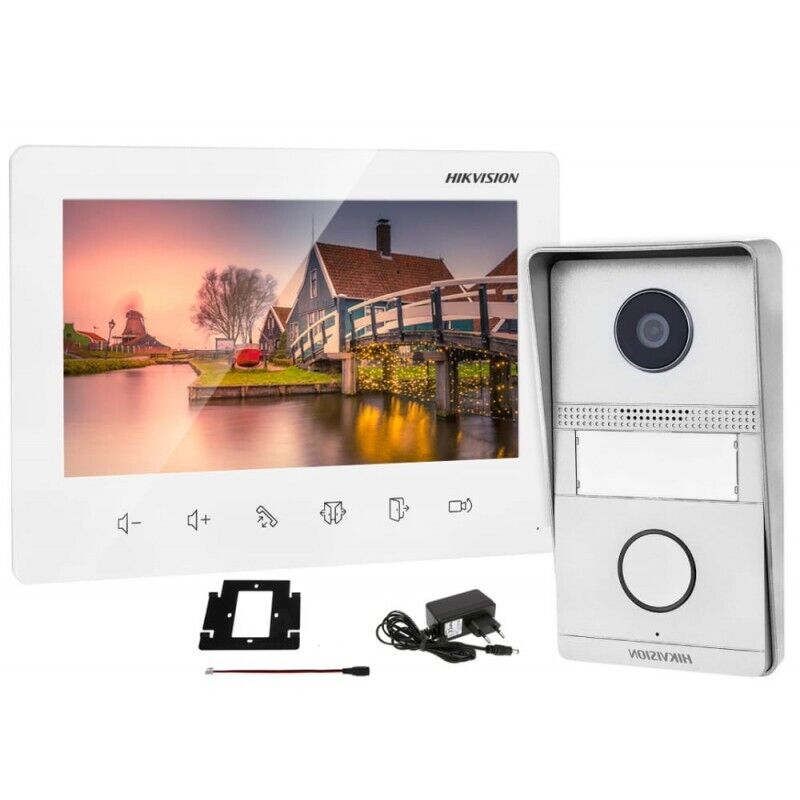

• PACKAGE CONTENTS:
• External station of the Hikvision flush-mounted video intercom
• Hikvision Monitors
• DC 48V Power Supply
