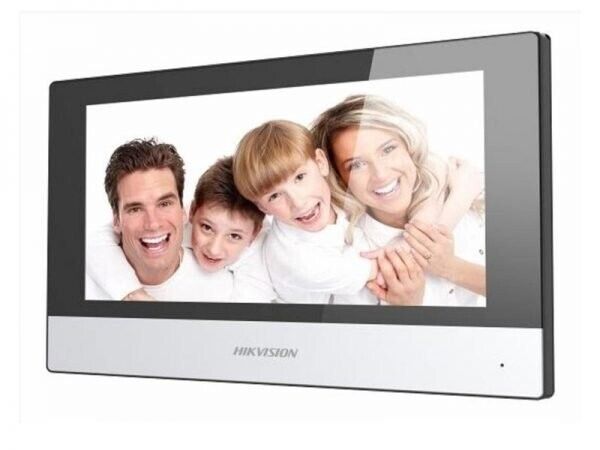

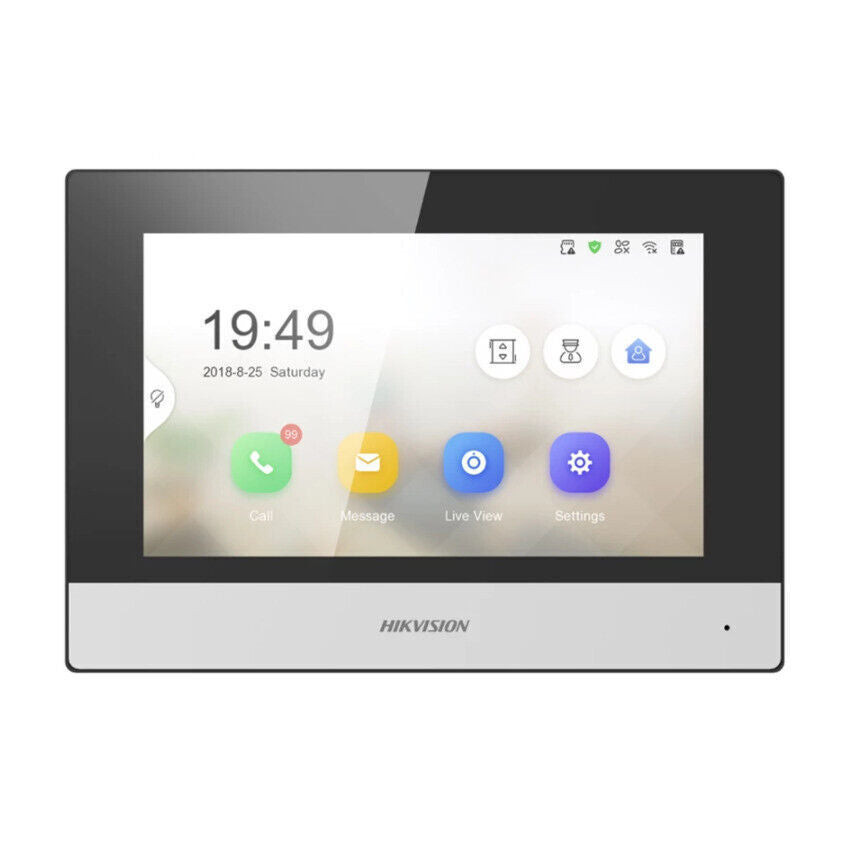

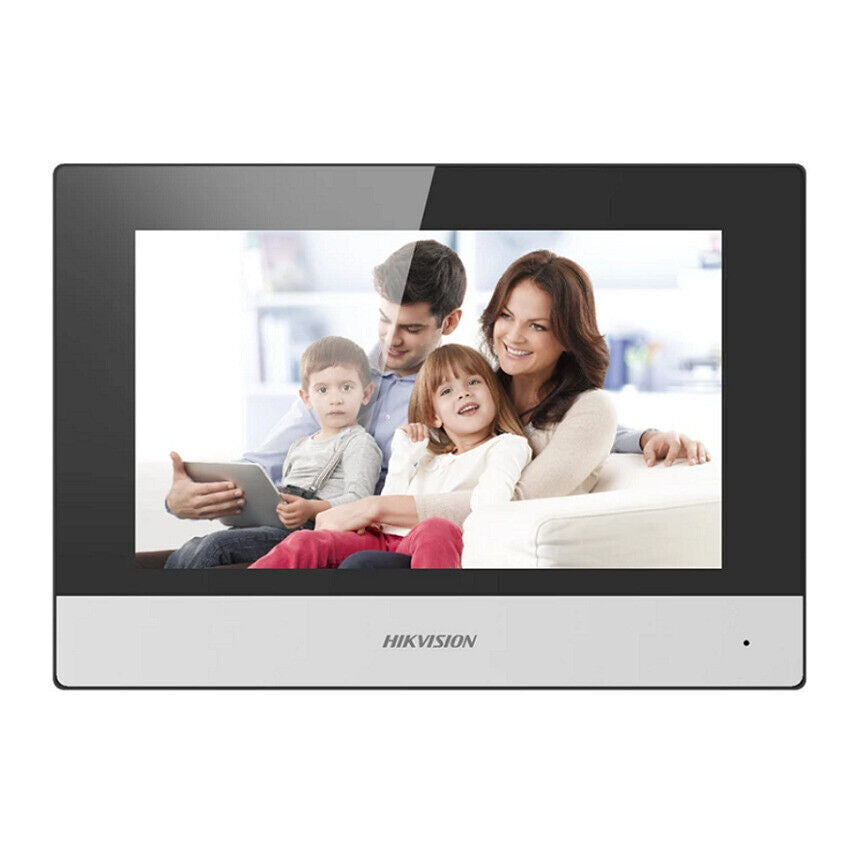

Hikvision DS-KH6320-WTE1G 7 Monitor Video Intercom Indoor Station

Hikvision DS-KH6320-WTE1 Intercom monitor indoor station WiFi/IP video intercom with 7“ TFT color LCD display with a resolution of 1024 x 600 pixels, controlled indoor station with UI v2.0 interface, built-in speakers and microphone, video monitoring of doors/gate stations and other IP cameras, clear sound thanks to echo and noise cancellation, management with the iVMS-4200 app, remote access and opening via iVMS-4200, Hik-Connect app, additional functions: intercom, voice messages, image saving, taking photos during the tenant's absence, built-in memory: 256 MB, support for microSD cards up to 32 GB, 8 alarm inputs and 2 alarm outputs, built-in 2.4 GHz Wi-Fi module (IEEE 802.11 b/g/n), Ethernet interface: 1 x RJ-45 10/100 Base-T, power supply: 12 VDC or PoE (802.3af) .

DS-KH6320-WTE1 is a modern touch monitor dedicated to Hikvision second generation IP video intercom systems. The monitor enables direct audio/video conversation with people at the outdoor station and intercom communication between other monitors (indoor stations) installed in the system. In this way, users/residents can communicate with each other without any cost. The system is managed using a transparent and intuitive graphical interface. The monitor allows the user to connect and view images from IP cameras and gate stations at any time. It also allows taking a photo during a video call and recording a short message if a call is missed. The monitor is equipped with an Ethernet port for network connection. The built-in 2.4 GHz (b/g/n) Wi-Fi module enables wireless connectivity. The monitor can be powered by a 12 V DC source or with the use of PoE (802.3af). The functionality and security of a system built on the basis of DS-KH6320-WTE1 panels can be increased by extending it with alarm functions. DS-KH6320-WTE1 HIKVISION Monitor is equipped with 8 alarm inputs and 2 alarm outputs that allow the connection of sensors. Information about the violation of a certain sensor can be transferred to the Hik-Connect mobile application. The system can be divided into zones and different arming modes, so it is easy to adapt the system to individual needs. Sensors connected to the system must be of NO / NC type. The type of response can be selected individually for each sensor: 24h alarm, instant alarm and delay alarm.

Hikvision second generation IP video intercom systems are characterized by aesthetic appearance and high functionality. The outdoor station has a modular structure, which means that its elements can be selected according to the installation requirements. It always includes a main module that allows powering other modules and optional expansion modules (max. 8).
