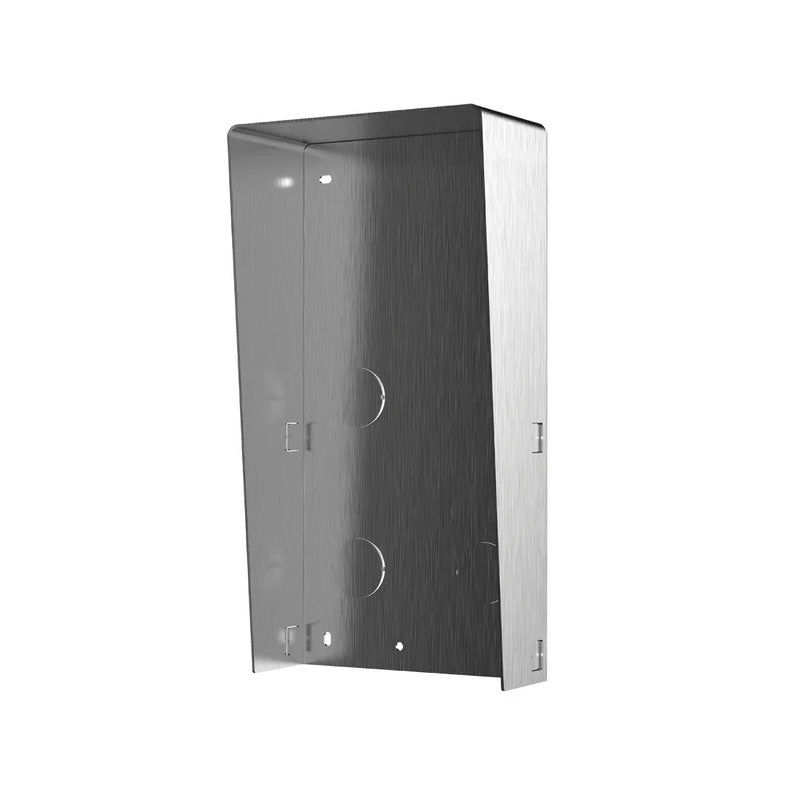

Hikvision Ds-Kabd8003-Rs2 Surface Rainproof Protective Canopy

Hikvision DS-KABD8003-RS2 Metal rainproof box, suitable for wall mounting of two modules with protective screen, weight 500 g

• Suitable for wall mounting of two modules with protective screen
• Working Temperature: -40 degrees C to +60 degrees C
• Working Humidity: 10% to 95%
• 500 g
• Dimensions 224x 116.4x58 mm

Installation

• 1. Paste the installation sticker 1 on the wall. Make sure the sticker is positioned level by measuring with the gradient.
• Chisel 4 holes with drill aligned with the screw holes on the sticker.
• The suggested hole size is 6 (diameter) x 25 (depth) mm.
• 2. Remove the adhesive and insert the expansion sleeves into the screw holes. Fix the mounting frame and the protective screen to the wall with 4 expansion bolts.
• Thread the module connection line through the threaded hole in the frame.
• Pass the connection lines of the main unit through the wire hole to the top grille.
• Connect the cables and connection line of the modules to the corresponding interfaces of the main unit, and then place the main unit into the upper grid.
• Connect the other end of the module connection line to the input interface of the sub-module.
• Organize the line with the cable tie in the package.
• 3. Insert the modules into the frame after wiring. The main unit should be placed in the upper grid.
• 4. Use the hex wrench in the package to fix the cover on the frame.
