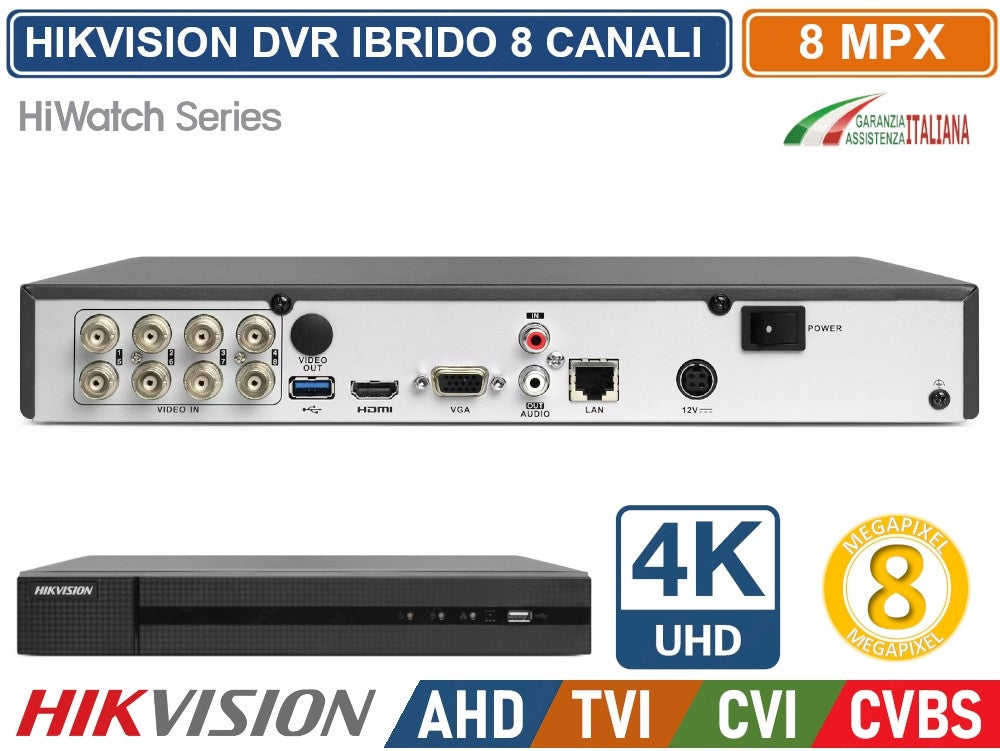

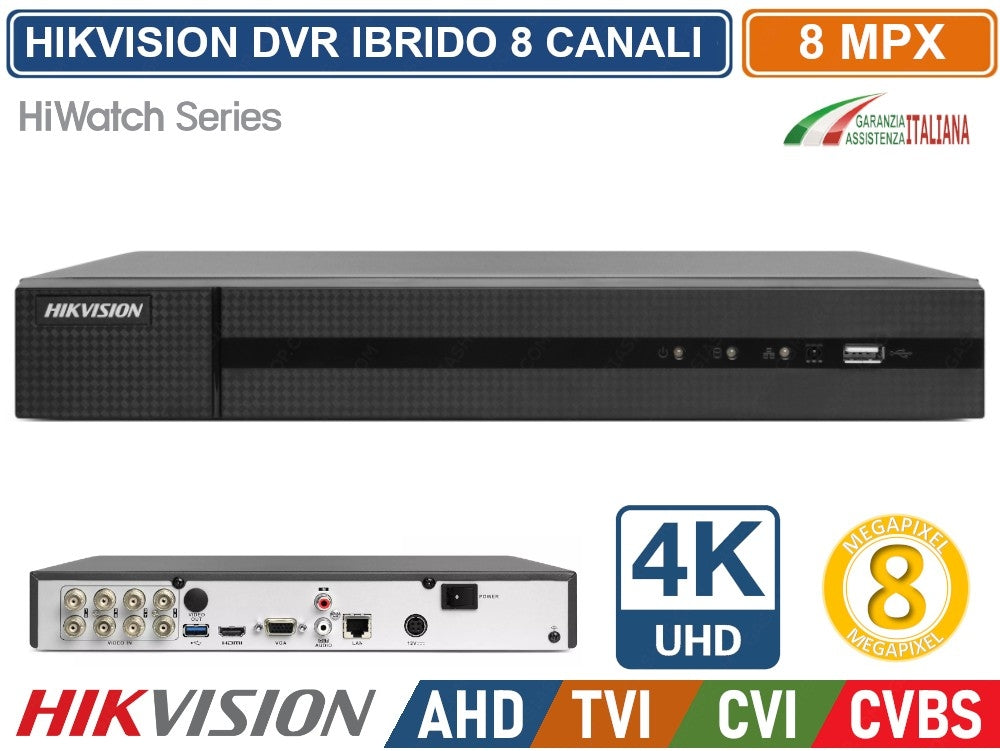

DVR Hikvision 8 Channels Hybrid IP Cloud 8 Mpx Ahd Hwd-7108Mh-G4

Hikvision 8-channel analog video recorder sku. HWD-7108MH-G4 Hiwatch series turbo Ultra HD 4K up to 8Mpx with 5IN1 hybrid technology multiple management CCTV standards: analog CVBS / HDCVI / HDTVI / AHD + IP @ 6Mpx. Ultra HD resolution in recording on all channels up to 8Mpx @ 8fps + 4 IP Camera. Thanks to the hybrid technology of the video recorder it is possible to update all old video surveillance systems, giving the possibility of installing cameras at higher resolutions using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. Video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Specifications

• Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@6Mpx, Onvif Standard
• Supported HD-TVI resolutions: 8Mpx@8fps, 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
• AHD resolution supported: 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
• HDCVI resolution supported: 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
• Supported CVBS resolution: 960H, 700TVL@25/30fps.
• Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
• Recording (REC & Live) on all channels in 4k ultra hd resolution 8Mpx@8fps
• H.265+/H.265/H.264+/H.264 dual-stream video compression.
• Simultaneous HDMI/VGA video output.
• Supports 1 SATA HDD up to 8TB, 2 USB (front and rear USB 2.0 port)
• Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
• Easy setup P2P QR scan with dedicated Hikvision Cloud service.
• Multilingual menu, including Italian.
