DVR Hikvision 8 Channels Hybrid Cloud Hdcvi Ahd TVi CVbs Ip Hwd-5108Mh-G4 2 Tb Hdd

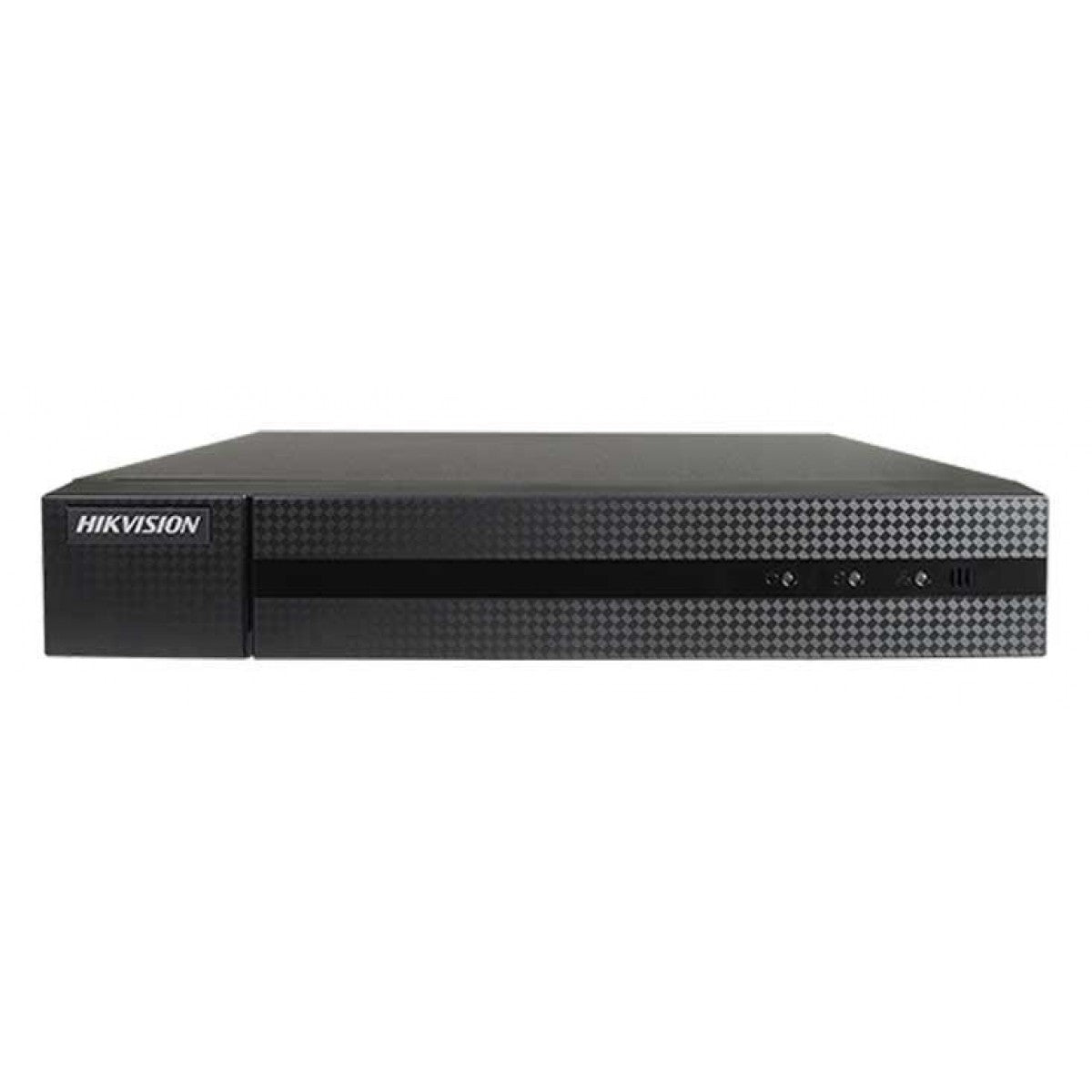

Hikvision HWD-5108MH-G4 XVR: Powerful and Flexible Surveillance

The Hikvision HWD-5108MH-G4 XVR DVR offers a complete surveillance solution for a wide range of needs. With 8 analog channels of 2 Megapixels and 2 IP channels up to 5 Megapixels, this device supports a variety of cameras and technologies, including IP cameras, HDCVI, HDTVI, AHD and analog CVBS. With recording resolutions up to 1080P and flexible streaming flows, it ensures clear and detailed image quality. The deep learning-based motion detection 2.0 function offers advanced security, reducing false alarms. With remote access and versatile connectivity, the Hikvision HWD-5108MH-G4 XVR DVR is a reliable choice for protecting your property or business.

• Standard : AHD, HD-CVI, HD-TVI, PAL
• Video Inputs : 8 BNC units - HD-TVI / AHD / HD-CVI / CVBS
• Video Outputs : 1x HDMI, 1x VGA
• Audio Inputs : 1 unit CINCH, RCA (2.0 Vp-p, 1 KΩ), 8 units BNC for audio via coaxial cable (HD-TVI only)
• Audio Outputs : 1 unit CINCH, RCA (Linear, 1 KΩ)
• Image Compression Method : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Number of Compression Levels : 6
• Recorded Image Resolutions :
  • 960 x 1080 - 1080N
  • 1280 x 720 - 720p
  • 960 x 576 - 960H
  • 704 x 576 - 4CIF
  • 640 x 480 - VGA
• Maximum Overall Recording Speed ​​:
  • 96fps @ 960 x 1080px
  • 96fps @ 1280 x 720px
  • 96fps @ 960 x 576px
  • 96fps @ 704 x 576px
  • 96fps @ 640 x 480px
• Recording Speed ​​Adjustment : From 1 to 12 fps for each resolution
• Mode of Operation :
  • 8 x 1080N max. 12 fps + 2 (5mpx) x IP
  • 8 x 720p max. 12 fps + 2 (5mpx) x IP
  • 8 x 720N max. 12 fps + 2 (5mpx) x IP
• Recording Mode : Manual, Motion Detection, Schedule
• Supported Hard Drives : 1 x 4TB SATA
• USB Interface : 2 x USB (Rear USB 2.0 ports)
• Storing Backup Copy on External Devices : USB Drive (Pendrive) Storage
• Recording Search and Playback : Search for recordings on the timeline or file list. Playback: forward, fast mode, slow mode. Playback from up to 8 cameras simultaneously
• Network Interface : 1 x RJ-45 - 10M/100M Ethernet self-adaptive
• Network Functions : Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
• Bitrate : From 32 Kbps to 4 Mbps
• Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

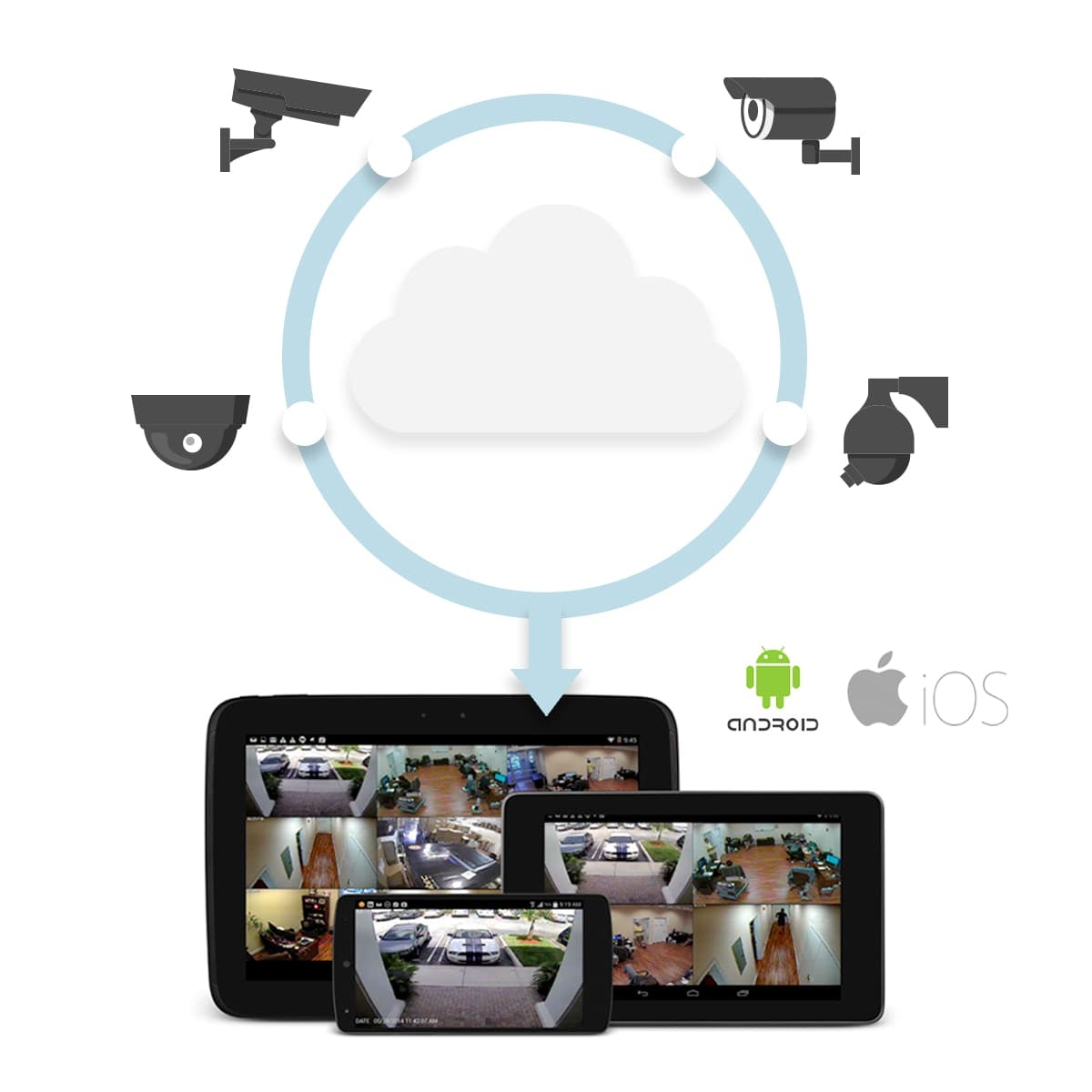

• Mobile Access : Port: 8000 or cloud access Android: Free iVMS-4500 or Hik-Connect App iOS (iPhone): Free iVMS-4500 or Hik-Connect App
• Remote Connections : 128 users
• Multi-operation : Pentaplex
• Alarm Inputs / Outputs : None
• PTZ Control : Hikvision HD-TVI coax compatible control
• Motion Detection : Screen division into zones: 22 x 18 detection fields
• Mouse Support : Yes
• IR Remote Control Supplied : None
• Power supply : 12 V DC / 1.5 A (power supply supplied)
• Color : Black
• Weight : 0.80 kg (1.8 lb)
• Dimensions : 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Supported Languages ​​: English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
• Manufacturer / Brand : HIKVISION
