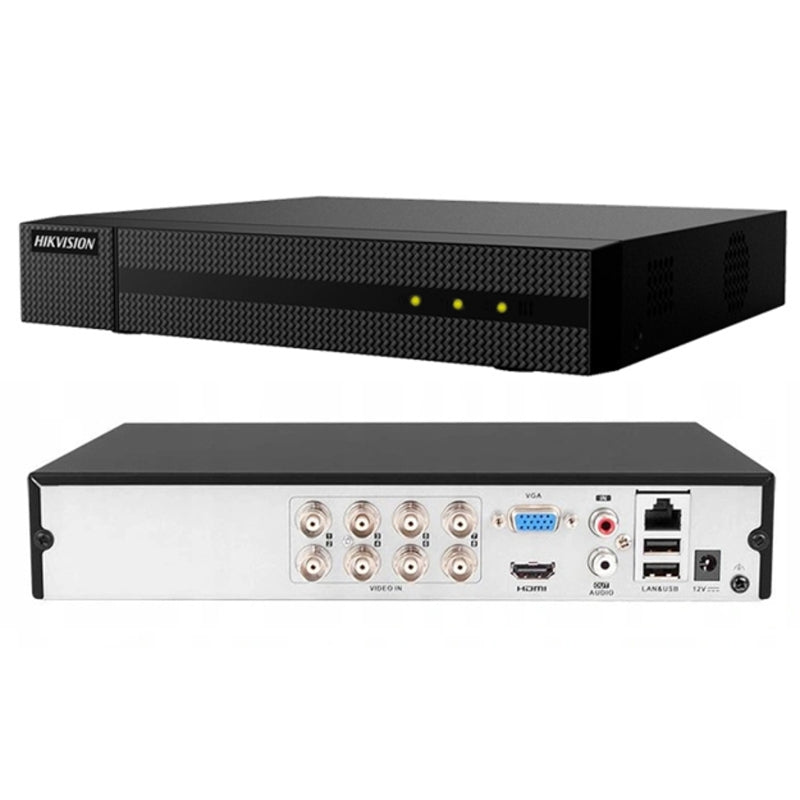

XVR 8 channels 5in1 HDTVI / AHD / CVI / CVBS / IP H.264 1080P | HIKVISION HWD-5108M

Video recorder sku. HWD-5108M Hikvision Hiwatch series turbo HD DVR, 1080P, 8 channels with 5IN1 hybrid technology: analog CVBS/HDCVI/HDTVI/AHD + IP@960p. FULL HD resolution in recording at 1080P 4CH@25fps + 1 IP Cameras up to 960p.

Thanks to the hybrid technology of the video recorder it is possible to update all the old video surveillance systems, giving the possibility of installing high resolution cameras using the traditional micro coaxial wiring used for the installation of analog CVBS cameras.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

• Standard : AHD, HD-CVI, HD-TVI, PAL
• Video Inputs : 8 BNC units - HD-TVI / AHD / HD-CVI / CVBS
• Video Outputs : 1x HDMI, 1x VGA
• Audio Inputs : 1 unit CINCH, RCA (2.0 Vp-p, 1 KΩ), 8 units BNC for audio via coaxial cable (HD-TVI only)
• Audio Outputs : 1 unit CINCH, RCA (Linear, 1 KΩ)
• Image Compression Method : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Number of Compression Levels : 6
• Recorded Image Resolutions :
  • 960 x 1080 - 1080N
  • 1280 x 720 - 720p
  • 960 x 576 - 960H
  • 704 x 576 - 4CIF
  • 640 x 480 - VGA
• Maximum Overall Recording Speed ​​:
  • 96fps @ 960 x 1080px
  • 96fps @ 1280 x 720px
  • 96fps @ 960 x 576px
  • 96fps @ 704 x 576px
  • 96fps @ 640 x 480px
• Recording Speed ​​Adjustment : From 1 to 12 fps for each resolution
• Mode of Operation :
  • 8 x 1080N max. 12 fps + 2 (5mpx) x IP
  • 8 x 720p max. 12 fps + 2 (5mpx) x IP
  • 8 x 720N max. 12 fps + 2 (5mpx) x IP
• Recording Mode : Manual, Motion Detection, Schedule
• Supported Hard Drives : 1 x 4TB SATA
• USB Interface : 2 x USB (Rear USB 2.0 ports)
• Storing Backup Copy on External Devices : USB Drive (Pendrive) Storage
• Recording Search and Playback : Search for recordings on the timeline or file list. Playback: forward, fast mode, slow mode. Playback from up to 8 cameras simultaneously
• Network Interface : 1 x RJ-45 - 10M/100M Ethernet self-adaptive
• Network Functions : Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
• Bitrate : From 32 Kbps to 4 Mbps
• Network Protocols : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
• Mobile Access : Port: 8000 or cloud access Android: Free iVMS-4500 or Hik-Connect App iOS (iPhone): Free iVMS-4500 or Hik-Connect App
• Remote Connections : 128 users
• Multi-operation : Pentaplex
• Alarm Inputs / Outputs : None
• PTZ Control : Hikvision HD-TVI coax compatible control
• Motion Detection : Screen division into zones: 22 x 18 detection fields
• Mouse Support : Yes
• IR Remote Control Supplied : None
• Power supply : 12 V DC / 1.5 A (power supply supplied)
• Color : Black
• Weight : 0.80 kg (1.8 lb)
• Dimensions : 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
• Supported Languages ​​: English, Bulgarian, Croatian, Czech, Danish, Estonian, Greek, Spanish, Dutch, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
• Manufacturer / Brand : HIKVISION
