DVR Dahua Video Recorder 8 Channels HDCVI Ahd TVI CVBS Ip Xvr1B08Hi

The XVR1B08H-I digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional tool used in surveillance systems.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings.

DAHUA Cooper series product is designed to minimize cost while maintaining high quality and ease of use.

TECHNICAL SPECIFICATIONS

System

Main Processor: Industrial-grade processor

Operating System: Embedded Linux

Operating Interface: Web; Local GUI

SMD Plus: SMD Plus by Recorder

8-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video: Analog Camera Input

8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.

Camera Input

1. CVI: 5MP, 4MP, 1080p@25/30fps, 720p@50/60fps, 720p@25/30fps.
2. TVI: 5MP, 4MP, 1080p@25/30fps, 720p@25/30fps.
3. AHD: 5MP, 4MP, 1080p@25/30fps, 720p@25/30fps.
4. CVBS: PAL/NTSC

IP Camera Input: Up to 12 channels of IPC access

4 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP channels are added beyond the existing channels, the AI ​​Function (SMD) will be disabled.

Encoding Capability

Main Stream: All channel 5M-N@(1 fps–10 fps); 4M-N/1080p@(1fps–15fps); 1080N/ 720p/960H/D1/CIF@(1 fps–25/30 fps)
Sub stream: D1/CIF (1 fps–15 fps)

Dual stream Yes

Video Bit Rate 32kbps–6144kbps

Audio Sampling: 8 kHz, 16 bit

Audio Bit Rate: 64kbps

Video Output: 1 HDMI, 1 VGA

HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen display

When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16

Third Party Camera Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

Standard Compression

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711a; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

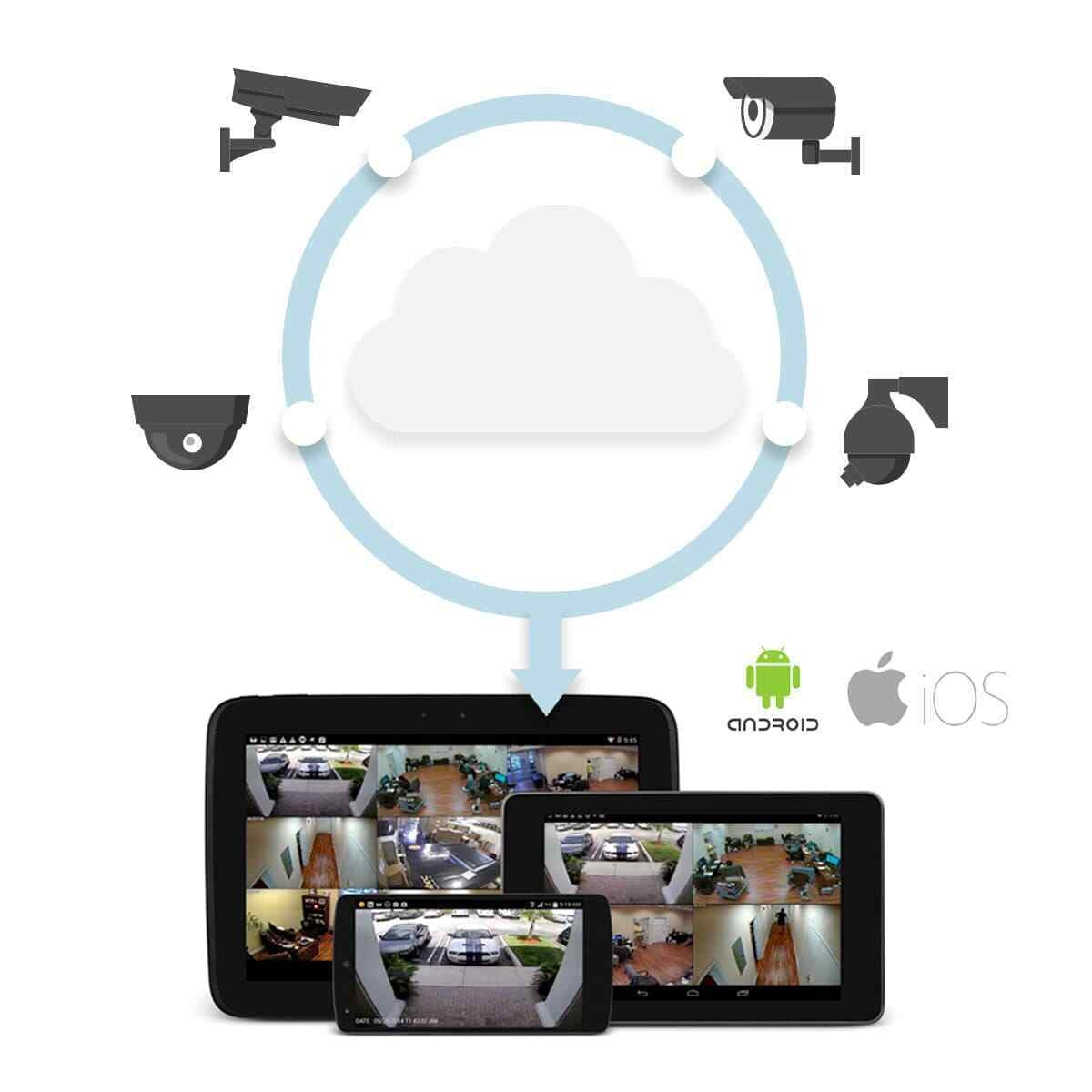

Mobile Phone Access

iOS, Android

Interoperability

ONVIF 21.06; CGI Conformant

Browser

Chrome
IE9 or later
Firefox

Network Mode

Single address mode

Recording Playback

Record Mode

General, motion detection, alarm, POS

Recording Playback

1/4/8/9

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback

Alarm

General Alarm

Motion detection, video loss, tampering

Anomaly Alarm

No disk, disk error, low space, offline, ip conflict, MAC conflict

Alarm Linkage

Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzers; log, preset; e-mail

Ports

Audio Input

1-channel RCA
8-channel BNC (Coaxial Audio)

Audio Output

1-channel RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.

USB

2 USB ports (USB 2.0)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply

12VDC, 1.5A

Power Consumption

<7W

Net Weight

0.57 kg (1.26 lb)

Gross Weight

1.05 kg (2.31 lb)

Product Dimensions

198.3mm × 203.4mm × 41.5mm
(7.81'' × 8.01'' × 1.63'') (W × D × H)

Packaging Dimensions

332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W× D × H)

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

0%–90% (RH)

Installation

Desktop

Certifications

FCC: Part 15 Subpart B
CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
