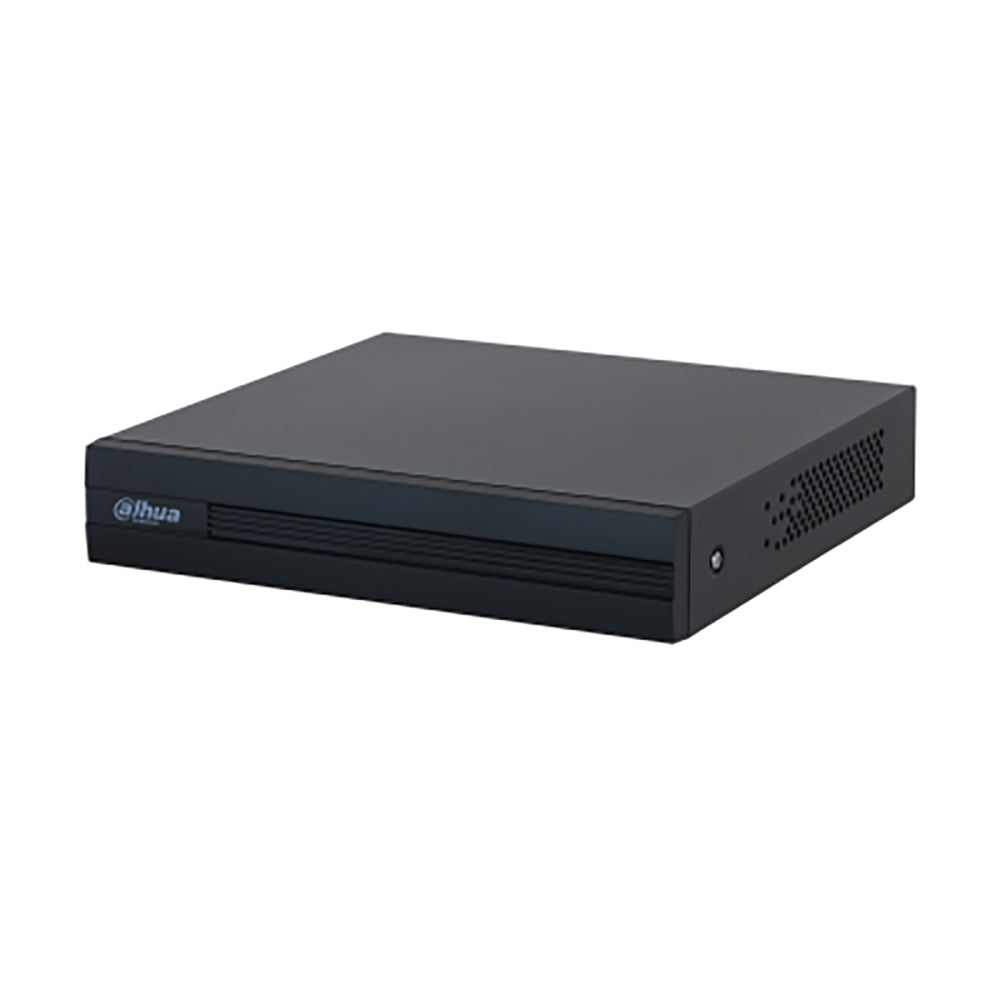

DVR Dahua Video Recorder 8 Channels HDCVI Ahd TVI CVBS IP HD 2Tb Xvr1B08Hi

DVR DAHUA VIDEO RECORDER 8 CHANNELS HDCVI AHD TVI CVBS IP HD 2TB XVR1B08HI

8 CHANNEL DVR WITH HD

The XVR1B08H-I digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional tool used in surveillance systems.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings.

DAHUA Cooper series product is designed to minimize cost while maintaining high quality and ease of use.

• Video inputs: 8 BNC units - AHD / HD-CVI / HD-TVI / CVBS
• Video Outputs: 1 HDMI unit 1 VGA unit
• Audio Inputs: 1 unit CINCH, 8 - Support for audio via coaxial cable, HD-CVI only
• Audio outputs: 1 unit CINCH
• Image Compression Method: AI Coding / H.265+ / H.265 / H.264+ / H.264
• Recorded image resolutions:
• AHD / HD-CVI / HD-TVI :
• 1080N - 960 x 1080 ,
• 720p - 1280 x 720 ,
• CVBS :
• 960H - 960 x 576 ,
• D1 - 720 x 576 ,
• IP :6 Mpx - 3072 x 2048
• Recording speed adjustment:
• 6 Mpx IP @ 1 ... 25 fps
• 1080N @ 1 ... 25 fps
• 720p @ 1 ... 25 fps
• 960H @ 1 ... 25 fps
• to be assigned to each channel
• Operation Mode: 8 x AHD / HD-CVI / HD-TVI / CVBS / IP + 2 x IP
• Recording Mode: Manual, Motion Detection, Schedule
• Supported Hard Drives: 1 x 6TB SATA
• Backup copy to external devices: Save single frames and entire recordings to USB drive
• Recording Search and Playback: Recording search by time + timeline with recording type. Playback: forward, fast mode, slow mode, step Advanced search (with one second accuracy)
• Network functions: Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
• Network interface: 1 x RJ-45 - 100BASE-TX
• Bitrate: 32 ... 4096 kbps
• Network protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, WiFi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search

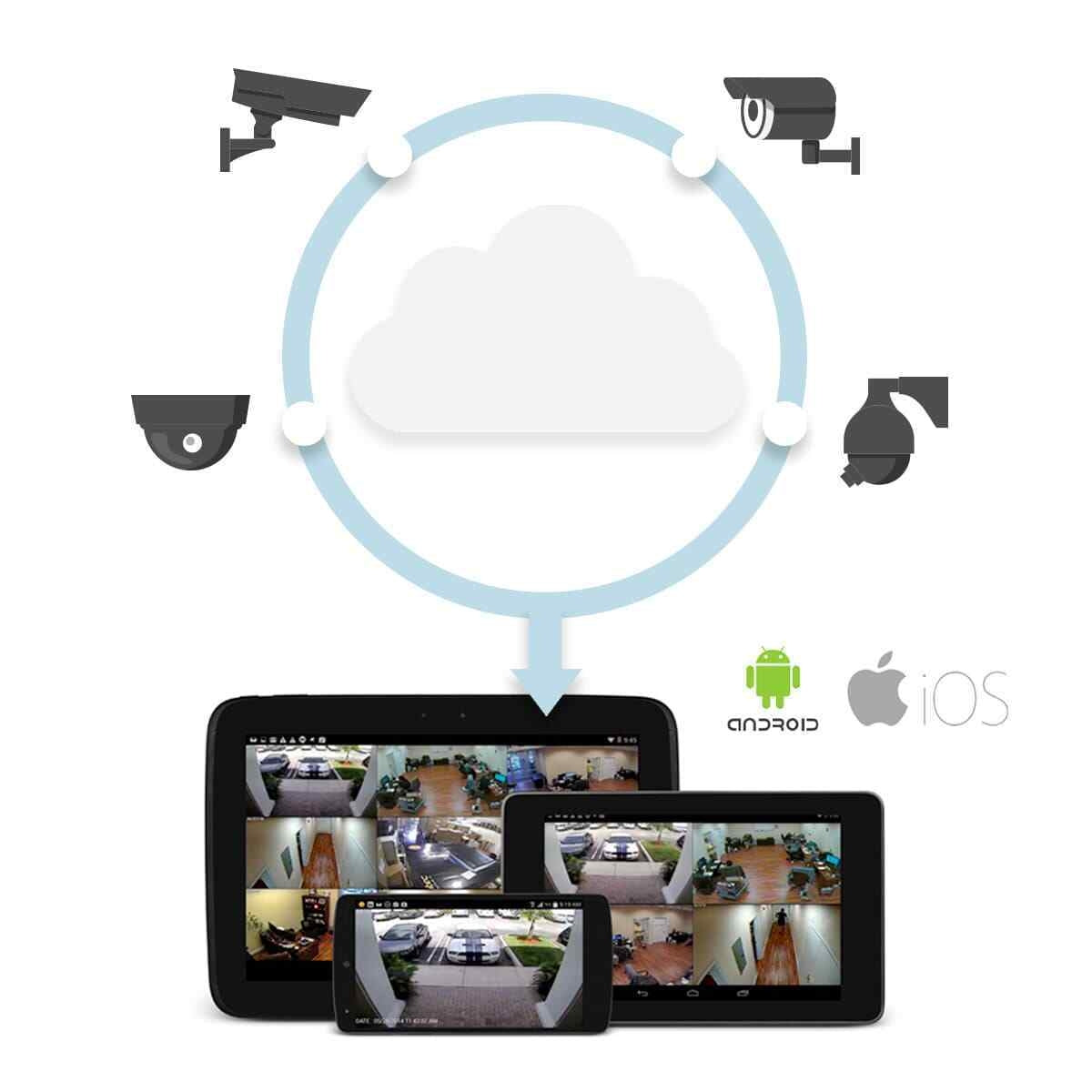

• Mobile Access: Port:
• 37777 or cloud access
• Android: Free DMSS App
• iOS (iPhone): Free DMSS App
• See how to configure the P2P function in Dahua recorders and how to activate the mobile application
• PTZ Control: Speed ​​Dome IP Cameras
• HD-CVI PTZ coax compatible control
• Motion detection: Screen division into zones: 22 x 18 detection fields
• USB: 2 x USB 2.0
• Selected features: SMD PLUS - search for an object classified as: person, motor vehicle, vehicle without engine
• Mouse Support: YES
• Power supply: 12 V DC / 1.5 A (power supply included)
• Color: Black
• Weight: 0.58 kg
• Dimensions: 198 x 203 x 42 mm
• Supported languages: Polish, English, Bulgarian, Czech, Finnish, Greek, Romanian, Serbian, Slovenian, Hungarian
• Country of origin: China
• Manufacturer / Brand: DAHUA
• Warranty: 3 years
