Dahua Hybrid DVR Ahd P2P 4 Channel 1080N H265+ Dh-Xvr4104Hs-X Hd 500 Gb

DH-XVR4104HS-X 5in1 Hybrid Video Recorder + 500GB HDD

Penta-brid video recorder (HDCVI / AHD / TVI / CVBS / IP), 4 channels (4x BNC + 1x IP) with 500 Gb Hard Disk

System

• Main processor: Embedded processor
• Operating System: Embedded LINUX

Video and audio

• Analog camera input: 4 channels, BNC
• HDCVI: 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD: 1080P@25/30, 720P@25/30fp
• TVI: 1080P@25/30, 720P@25/30fps
• CVBS: PAL / NTSC
• IP: 4+1, each channel up to 2MP
• Audio Input/Output: 1/1, RCA
• Two-way communication: reuse audio input/output, RCA

Registration

• Video Compression: H.265+/H.265/H.264+/H.264
• Resolution: 1080N, 720P, 960H, D1, CIF
• Record Rate: Main Stream: 1080N/720P/960H/D1/CIF (1~25/30fps); Sub stream:CIF (1~15fps)
• Video bit rate: 32Kbps ~ 4096Kbps per channel
• Recording Mode: Manual, Schedule (General, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Shutdown
• Record Interval: 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
• Audio compression: AAC (1st channel only), G.711A, G.711U, PCM
• Audio sampling rate: 8KHz, 16 bit per channel
• Audio bit rate: 64 Kbps per channel

Display

• Interface: 1 HDMI, 1 VGA
• Resolution: 1920×1080, 1280×1024, 1280×720
• Multi-screen display: When IP extension mode is not enabled: 1/4
• When IP extend mode is enabled: 1/4/6
• OSD: Camera title, time, video loss, camera lock, motion detection, recording

Net

• Interface: 1 RJ-45 port (100M)
• Network Function: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
• Max. User Access: 128 users
• Smart Phone: iPhone, iPad, Android
• Interoperability: ONVIF 16.12, CGI compliant

Video detection and alarm

• Trigger Events: Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zone: 396 (22 × 18), Video Loss, Tampering and Diagnosis
• Alarm Input: N/A
• Relay Output: N/A

Playback and backup

• Reproduction: 1/4
• Search Mode: Time/Date, Alarm, MD and Exact Search (Accurate to the Second)
• Playback function: play, pause, stop, rewind, fast play, slow play, next file, previous file, next camera, previous camera, full screen, repeat, random play, backup selection, digital zoom
• Backup mode: USB device / network

Memory

• HDD: 1 SATA port, capacity up to 6 TB (500 GB hard disk included)
• eSata: Not applicable

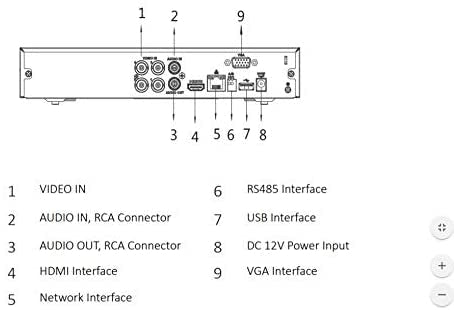

Auxiliary interface

• USB: 2 USB 2.0
• RS232: N/A
• RS485:1 port, for PTZ control

Electric

• Power supply: DC12V / 1.5A
• Power consumption (without HDD): <10W

Construction

• Dimensions: 260mm × 236mm × 48mm
• Net weight (without HDD): 0.9kg
• Installation: Desktop installation

Environmental

• Operating Conditions: -10°C~+45°C, 10~90%RH
• Storage conditions: -20°C~+70°C, 0~90%RH

Third party support

• Supports: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and others.

Certifications

• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1; CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
