Dahua DVR 4 Channel Video Recorder HDCVI Ahd TVI CVBS IP Model Ez-Xvr1B04-I

DAHUA DVR VIDEO RECORDER 4 CHANNELS HDCVI AHD TVI CVBS IP MODEL EZ-XVR1B04-I

The XVR1B04-I digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional tool used in surveillance systems.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings.

DAHUA Cooper series product is designed to minimize cost while maintaining high quality and ease of use.

• Main processor Embedded processor
• SMD Plus Embedded Linux Operating System
• 4 channel performance
• AI Research
• Search by target classification (Human, Vehicle)
• Video and audio Analog camera input
• 4 channels, BNC
• HDCVI camera input
• 1080p at 25/30 fps, 720p at 25/30/50/60 fps
• AHD camera input
• 1080p at 25/30 fps, 720p at 25/30 fps
• TVI camera input
• 1080p@25/30fps, 720p@25/30fps
• CVBS PAL/NTSC camera input
• IP camera input
• 4+1 channels, each channel up to 2MP
• Audio Input/Output 1/1, RCA
• Two-way conversation
• Reuse audio input/output, RCA
• Recording Compression
• AI/H.265+/H.265/H.264+/H.264 encoding
• Resolution 1080N; 720p; 960H; D1; CIF
• Main Current Registration Rate:
• All channels 1080N/720P/960H/D1/CIF/(1~25/30fps)
• Sub-stream: CIF (1~15 fps)
• Bit rate 32 kbps–4096 kbps per channel
• Registration mode
• Manual; Program (general, continuous); MD (Video
• detection: motion detection, video loss, tampering);
• Alarm; Stop
• Recording interval
• 1 min– 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
• Audio compression G.711A; G.711U; PCM
• Audio sampling rate
• 8 KHz, 16 bit per channel
• Audio bitrate 64 kbps per channel
• Display Interface 1 HDMI; 1 VGA
• Resolution 1920×1080, 1280×1024, 1280×720
• Multi-screen display When IP extension mode is not enabled : 1/4
• When IP extension mode is enabled : 1/4/6
• OSD
• Camera Title; Time; Video Loss; Camera Lock; Motion Detection; Recording
• Network Interface 1 RJ-45 port (100 Mbps)
• Network Protocol HTTP; HTTPS; TCP/IP; IPv4/IPv6; 3G/4G; UPnP; RTSP; UDP; smtp; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Support Dahua IP Camera, DVR, NVS, etc.)
• Maximum User Access 128 users

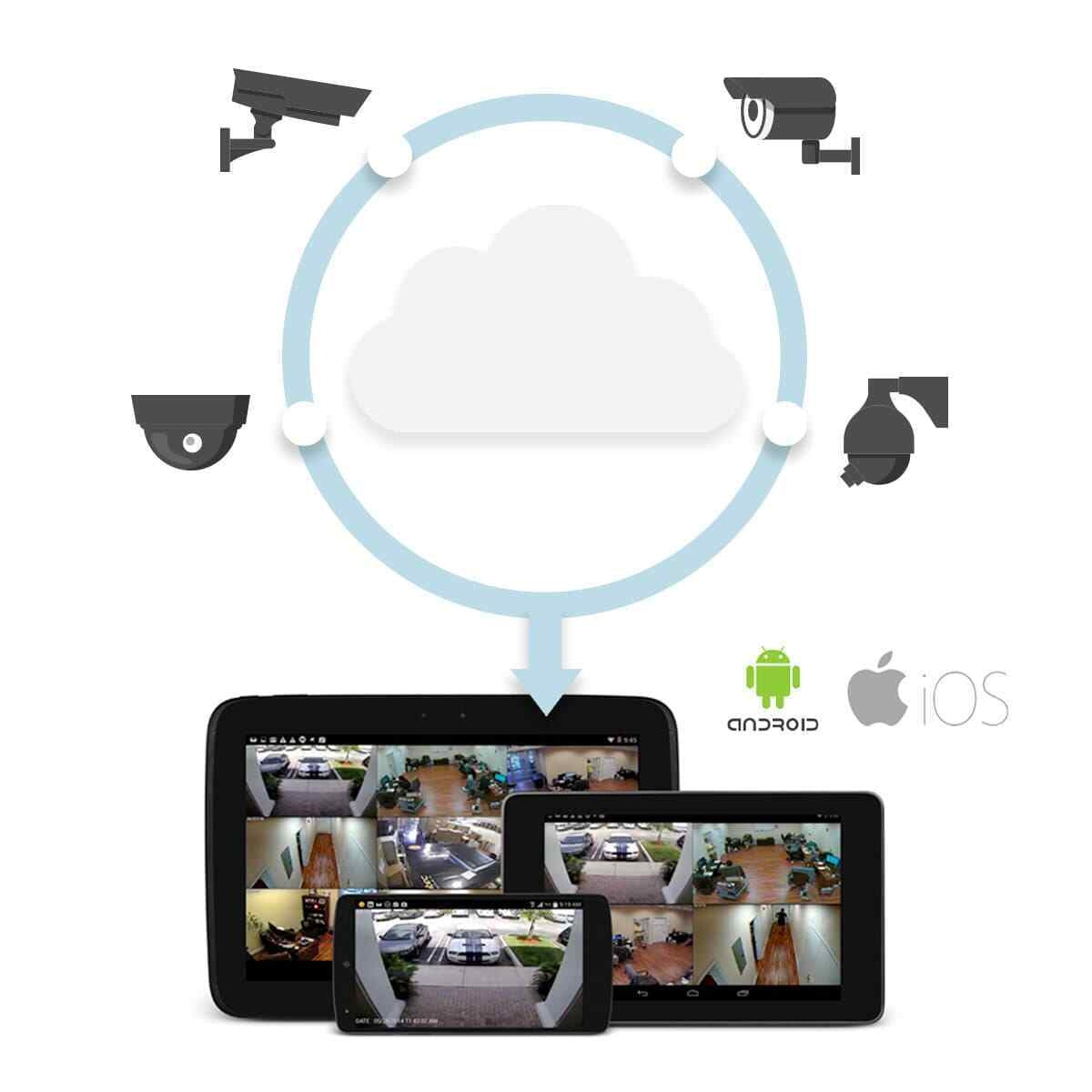

• Smartphones; iPad; Android
• ONVIF 16.12 interoperability, CGI compliant
• Video detection and alarm
• Trigger Events
• Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video detection
• Motion detection, MD zones: 396 (22 × 18), video loss, tampering and diagnosis
• Alarm input N/A
• N/A Relay Output
• Playback and backup
• Reproduction 1/4
• Search mode
• Appointment time; Alarm; MD and exact search (accurate to the second)
• Playback function
• Play; Pause; Stop; Rewind; Fast play; Slow play; Next file; Previous file; Next camera; Previous camera; Full screen; Repeat; Reorder; Backup selection; Digital zoom
• Backup Mode USB Device/Network
• Internal HDD Storage
• 1 SATA port, up to 6TB eSATA capacity
• N/A
• USB auxiliary interface
• 2 USB ports (USB 2.0) RS485 N/A
• RS232N/A
• Power supply DC 12V/1.5A
• Power Consumption (Without HDD) < 7 W
• Construction Dimensions
• Cooper 1U, 198mm × 202.9mm × 41.5mm
• Net weight (without hard drive) 0.57 kg (1.25 lbs)
• Gross weight 1.08 kg (2.38 lbs)
• Desktop installation
• Environmental
• Operating conditions
• –10°C to +45°C (+14°F to +113°F), 0%–90% (RH)
• Storage conditions
• –20°C to +70°C (–4°F to +158°F), 0%–90% (RH)
• Third party support
• Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek and others
• Certifications
• FCC: Part 15 Subpart B
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN 50130; EN 55024
