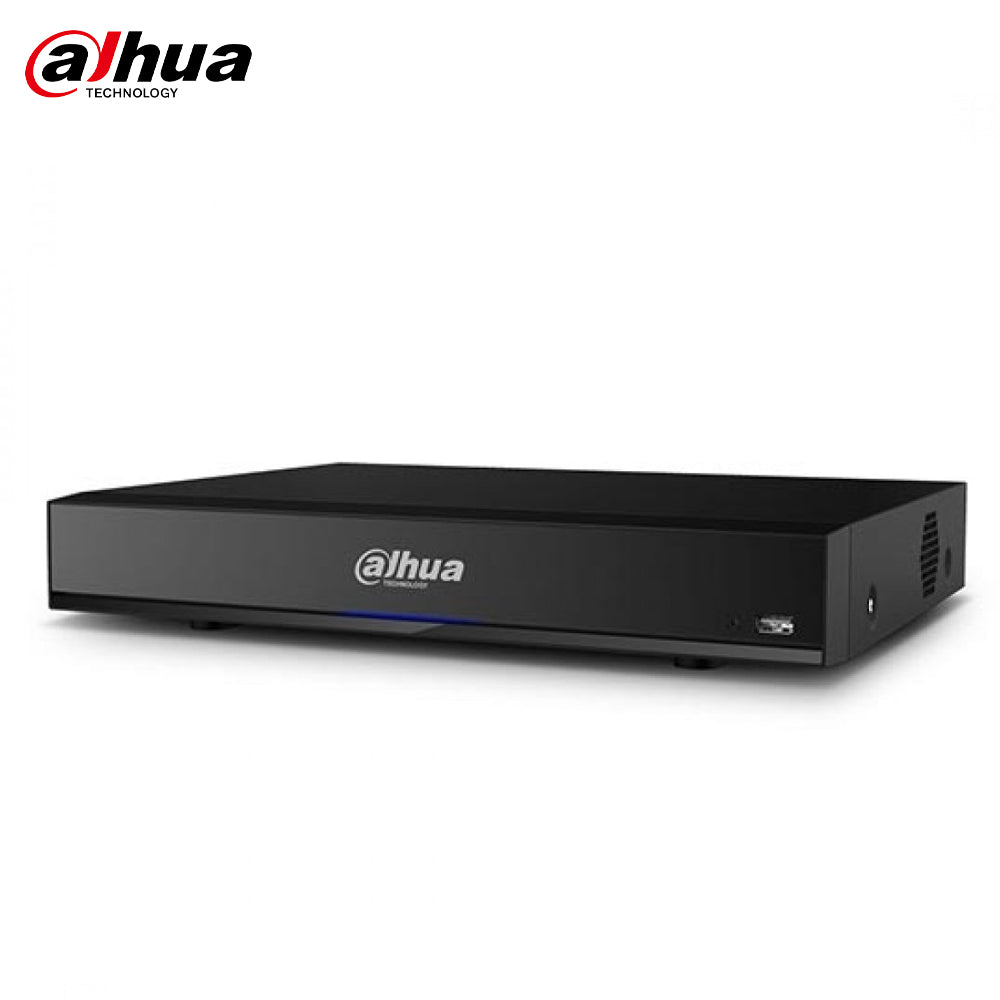

Dahua DVR 4 Channels 8 Mpx 4K Intelligent Analysis Xvr7104He-4Kl-X HD 1 TB

XVR (DVR/NVR) Penta-brid mini 1U 4CH 5IN1 multiple management CCTV standard: analog CVBS/HDCVI/HDTVI/AHD + IP - 4K Ultra-HD resolution in recording up to 8Mpx + 4 IP Cameras of 8mpx (32Mbps). Video Compression up to H.265+ / Video Analysis (IVS) / Connection to POS / IoT Technology / Smart Search / Smart Fan / Coax. Audio. / Alarm 8 (input) - 3 (output) / Cloud P2P. Dahua XVR7104HE-4KL-X

XVR is the most effective solution to upgrade all old CCTV video surveillance systems, as it allows to integrate all new analog CCTV standards "HDCVI / HDTVI / AHD" in high definition, giving the possibility to install cameras even at long distances (800-1000M) using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. UHD 4K video recording is processed by a new video compression system identified as H.265 codec. This technology allows to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

Note: It is also possible to use the UTP network cable associated with the Video Balun devices. Using the UTP network cable, the maximum video quality of the cameras is not guaranteed. Furthermore, as in HDCVI technology, it is possible to use the coaxial or UTP connection cable to manage all the camera parameters from the XVR such as: OSD settings, PTZ movement management and MOTOZOOM motorized lens control.

Thanks to this technology, Dahua guarantees private individuals and installers a simple, low-cost installation with surprising results and added value in the field of video surveillance. Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Specifications

• Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@8Mpx (Max. 4 IP) ONVIF 16.12, CGI Conformant
• Supported HDCVI resolutions: On all channels 8Mpx@(1fps-7fps); 4K-N@(1fps-7fps); 6Mpx@(1fps-10fps); 5Mpx@(1fps-12fps); 4Mpx@(1fps-15fps); 4M-N@(1fps-25fps); 3Mpx@(1fps-15fps); 1080P@(1fps-15fps); 1080N/720P/960H/D1/CIF@(1fps-25/30fps);
• Supported AHD resolution: 5Mpx@(1CH channel only, 1fps-12fps); 4Mpx@(1fps-15fps); 4M-N@(1fps-25fps); 3Mpx@(1fps-15fps); 1080P@(1fps-15fps); 1080N/720P/960H/D1/CIF@(1fps-25/30fps);
• HD-TVI resolution supported: 5Mpx@(1CH channel only, 1fps-12fps); 4Mpx@(1fps-15fps); 4M-N@(1fps-25fps); 3Mpx@(1fps-15fps); 1080P@(1fps-15fps); 1080N/720P/960H/D1/CIF@(1fps-25/30fps);
• Video signal transmission over long distances (800-1100M), using coaxial cable.
• Management from XVR via coax cable. OSD menu and PTZ movement of cameras.
• Recording (REC & Live) on all channels in 4K ULTRA HD resolution.
• H.265+/H.265/H.264+/H.264 dual-stream video compression.
• Simultaneous HDMI / VGA / SPOT video output configurable on one of the outputs.
• 1/4 channels (IP extension not active) or 1/4/6 (IP extension active), GRID interface and intelligent search
• Dahua PTZ Dome Camera 3D Intelligent Positioning - RS485 Port for Classic Analog PTZ.
• Supports 4 Inputs + 1 RCA Audio Output. Microphone input and output capability (Two-way talk).
• Supports 4 audio inputs (BNC) via coaxial cable, HD-CVI only.
• Supports 1 SATA HDD up to 10TB, 2 USB ports (USB 2.0, USB 3.0)
• Multiple network monitoring: Web viewer, CMS (DSS / Smart PSS) Smartphone (DMSS).
• New simplified and intelligent graphic interface (version 4.0); with Smart Fan / Coax. Audio functions.
• Support 8 inputs + 3 relay alarm outputs.
• Support and programming of IVS video analysis functions: Tripwire & Intrusion (on all channels), Abandoned/Missing, Face Detection. (Crossing lines | Intrusion in area | Abandoned object | Face detection). Programmable on all BNC video channels. Face Detection (only on the first channel) and Smart Search (Smart Search).
• IoT (Internet of Things) Technology: Possibility to connect external wireless sensors, such as panic buttons, via USB gateway or cameras with gateway.
• Possibility to connect POS devices, obtaining all the information overlayed on the channel. Possibility to search POS by date or transaction.
• Easy setup P2P QR scan with dedicated Dahua Cloud service.
• ONVIF Version 16.12 Compliant, CGI Conformant
