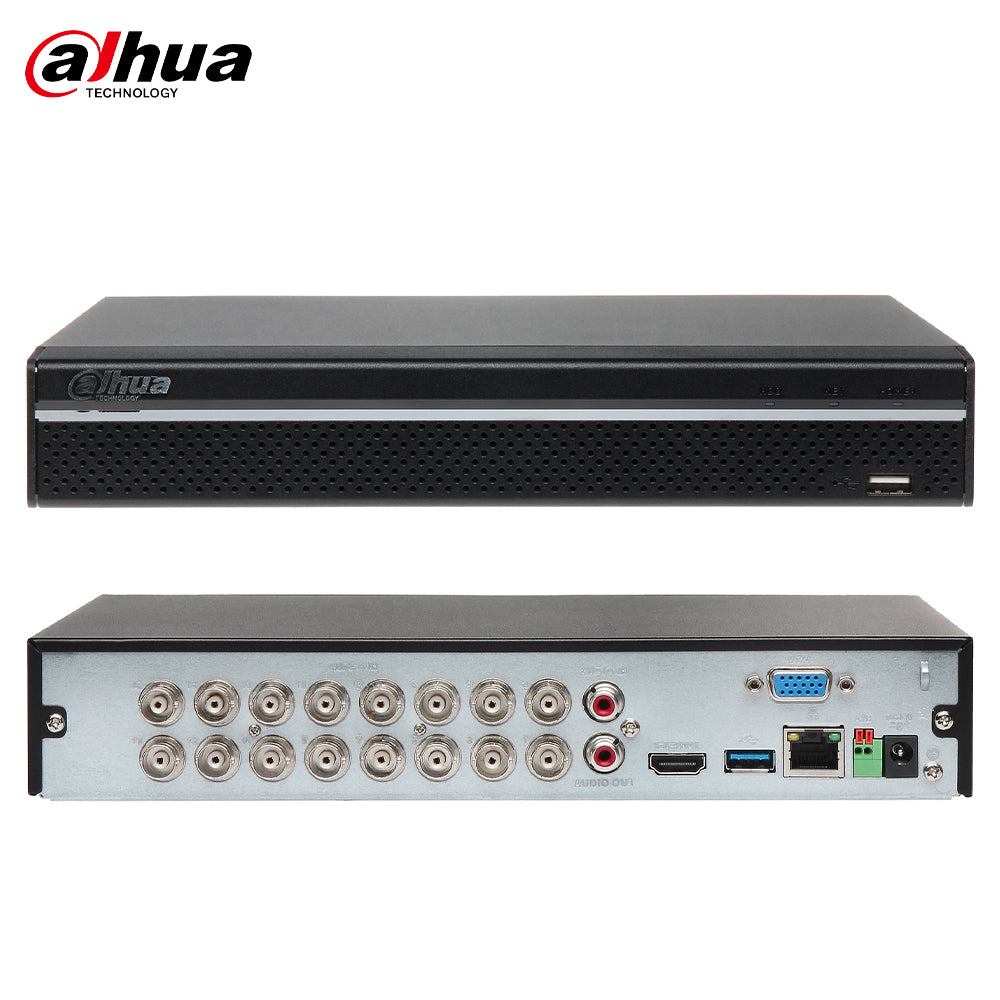

Dahua XVR5116HS-X hybrid video recorder with 2 TB hard disk

XVR5116HS-X digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional tool used in surveillance systems.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings.

Technical specifications

Model: XVR5116HS-X

Standard:
AHD, HD-CVI, HD-TVI, CVBS, TCP/IP

Video Inputs:
16 BNC units

Video Outputs:
1 HDMI unit, 1 VGA unit

Audio inputs:
1 unit - CINCH;
16 - Support for audio via coaxial cable, HD-CVI only

Audio Outputs:
1 CINCH unit

Image compression method:
H.265 / H.265+ / H.264 / H.264+

Number of compression levels:
6

Recorded image resolutions:
AHD / HD-CVI / HD-TVI: 4M-N - 1280 x 1440 ; 1080p - 1920 x 1080; 1080N - 960 x 1080; 720p - 1280 x 720;
CVBS: 960H - 960 x 576;
IP: max. 6 Mpx - 3072 x 2048

Recording speed adjustment:
6 Mpx IP @ 1 ... 25 fps
4M-N @ 1 ... 15 fps
1080p @ 1 ... 15 fps
1080N @ 1 ... 25 fps
720p @ 1 ... 25 fps
960H @ 1 ... 25 fps
to be assigned to each channel

Operation mode:
16 x AHD / HD-CVI / HD-TVI / CVBS @ 4M-N / IP + 8 x IP

Registration mode:
Manual, motion detection, programming

Supported Hard Drives:
1 x 10TB SATA; 2TB Hard Disk Included

Storing backup copy on external devices:
Save single frames and entire recordings to USB drive

Searching and playing recordings:
Search for recordings by time + timeline with recording type.
Playback: forward, fast mode, slow mode, step
Advanced search (with one-second precision)

Network functions:
Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters

Mobile access:
Port: 37777 or cloud access
Android: Free gDMSS Lite App
iOS (iPhone): Free iDMSS Lite App
There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus

Alarm inputs/outputs:
No

PTZ Control:
Speed ​​Dome IP Cameras
HD-CVI PTZ coax compatible control
RS-485 - PELCO-D/P

Motion Detection:
Screen division into zones: 22 x 18 detection fields

Selected Features:
Intelligent Image Analysis: Line crossing (snap trap), Line crossing (snap trap), Abandoned/Missing object, Face detection

Mouse Support:
Yes

IR remote control supplied:
No

Diet:
12 V DC / 2 A (power supply included)

Color:
Black

Weight and Dimensions:
1.01 kg - 260 x 236 x 48 mm

Supported languages:
Italian, Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian,

Country of origin:
China

Manufacturer / Brand:
DAHUA

Warranty:
3 years
