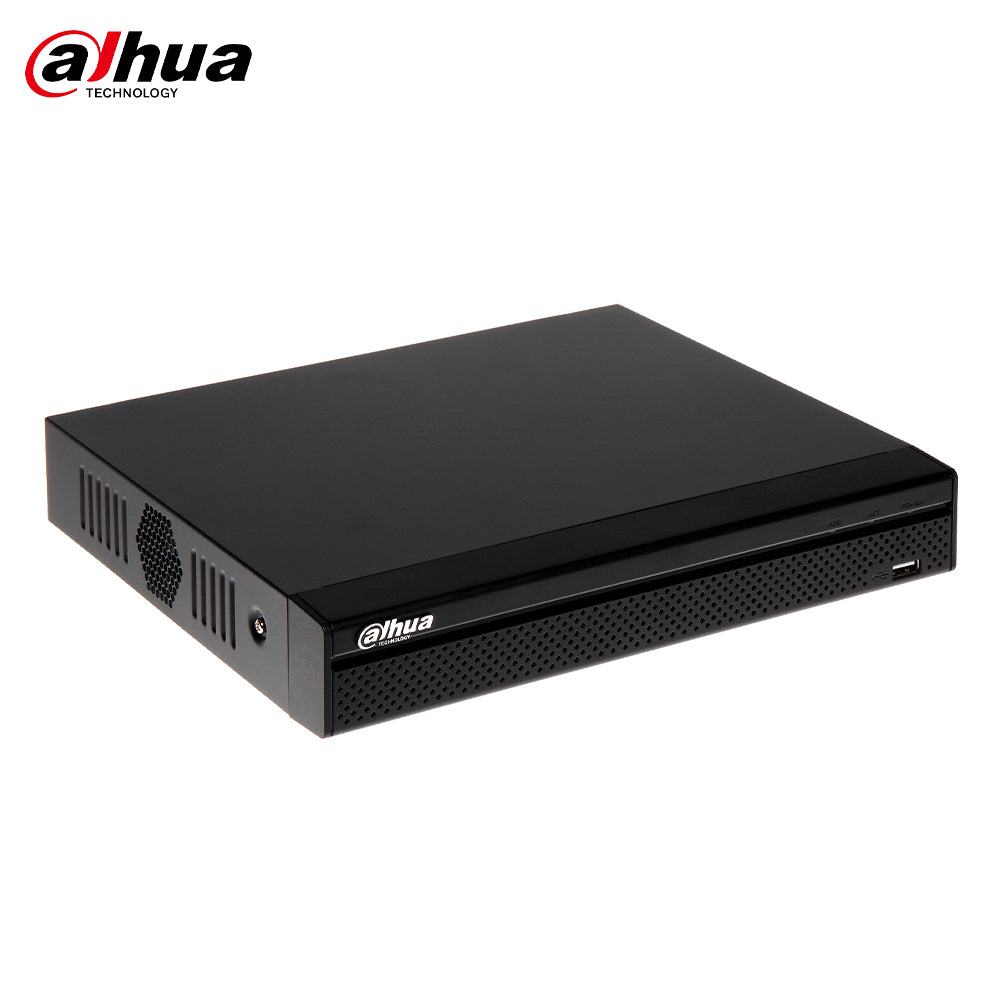

Dahua DVR 16 Channels Ahd Cvi TVi CVbs IP Hybrid Cloud 5 Mpx Xvr5116Hs-X

The new version of Dahua 5IN1 XVR video recorders is designed to simultaneously support all analog CCTV standards, present on the market today, and to manage Dahua or other manufacturers' IP digital cameras (Onvif 2.4.1 protocol) with resolutions up to 5Mpx. The recognition of the CCTV standard of the camera occurs automatically, ensuring all the simplicity of system configuration even for less experienced users.
XVR is the most effective solution to upgrade all old CCTV video surveillance systems, as it allows to integrate all new analog CCTV standards "HDCVI/HDTVI/AHD" in high definition, giving the possibility to install cameras even at long distances (800-1000M) using the traditional micro coaxial wiring used for the installation of analog CVBS cameras.

MODEL	XVR5116HS-X
Standard :	AHD , HD-CVI , HD-TVI , CVBS , TCP/IP
Video inputs :	16 units BNC
Video Outputs :	1 unit HDMI 1 unit VGA
Audio inputs :	1 unit - CINCH 16 - Support for audio via coaxial cable, HD-CVI only
Audio Outputs :	1 unit CINCH
Image compression method :	H.265 / H.265+ / H.264 / H.264+
Number of compression levels :	6
Recorded image resolutions :	AHD / HD-CVI / HD-TVI : 4M-N - 1280 x 1440 , 1080p - 1920 x 1080 , 1080N - 960 x 1080 , 720p - 1280 x 720 , CVBS : 960H - 960 x 576 IP : max. 6 Mpx - 3072 x 2048
Recording speed adjustment :	6 Mpx IP @ 1 ... 25 fps 4M-N @ 1 ... 15 fps 1080p @ 1 ... 15 fps 1080N @ 1 ... 25 fps 720p @ 1 ... 25 fps 960H @ 1 ... 25 fps to be assigned to each channel
Mode of operation :	16 x AHD / HD-CVI / HD-TVI / CVBS @ 4M-N / IP + 8 x IP
Registration mode :	Manual, motion detection, programming
Supported Hard Drives :	1 x 10TB SATA
Storing backup copy on external devices :	Save single frames and entire recordings to USB drive
Searching and playing recordings :	Recording search by time + timeline with recording type. Playback: forward, fast mode, slow mode, step Advanced search (with one-second precision)
Network functions :	Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
Mobile access :	Port: 37777 or cloud access Android: Free App gDMSS Lite iOS (iPhone): Free App iDMSS Lite There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus
Alarm inputs / outputs :
PTZ Control :	Speed ​​Dome IP Cameras HD-CVI PTZ coax compatible control RS-485 - PELCO-D/P
Motion Detection :	Screen division into zones: 22 x 18 detection fields
Selected Features :	Intelligent Image Analysis : line crossing (snap trap) , line crossing (snap trap), abandoned/missing item , face detection
Mouse Support :
IR remote control supplied :
Diet :	12V A.D / 2 A (power supply supplied)
Color :	Black
Weight :	1.01 kg
Dimensions :	260 x 236 x 48 mm
Supported languages ​​:	Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian
Country of origin :	China
Manufacturer / Brand :	DAHUA
Warranty :	3 years
