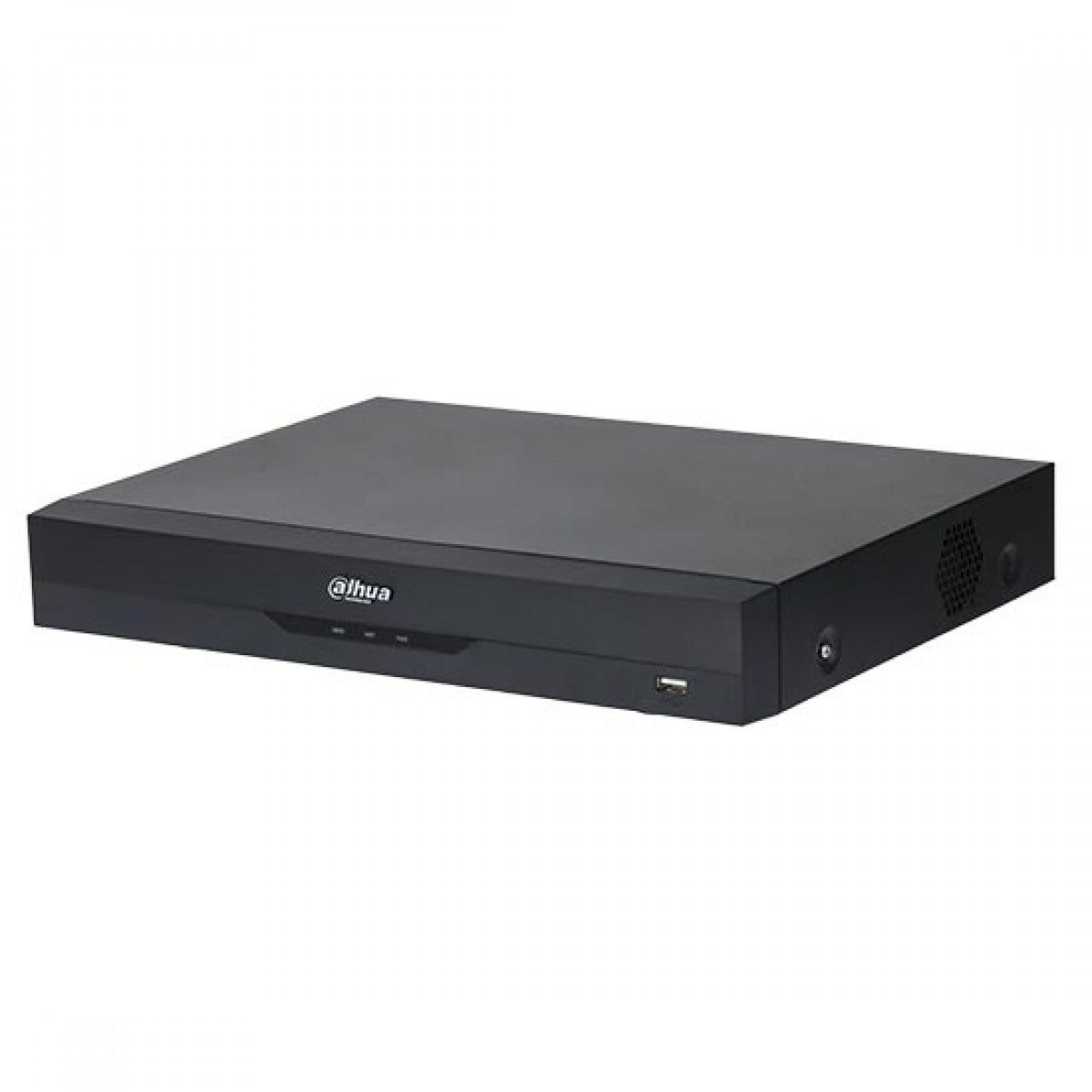

Dahua DVR 16 Channels 4K I3 8 Mpx Hybrid Cloud Ahd IP Wizsense HD 2 TB

DAHUA DVR 16 CHANNELS 4K 8 MPX HYBRID CLOUD AHD IP XVR5116HE-4KL-I3

Dahua XVR5116HE-4KL-I3 16-channel 4K HDCVI Analog 5IN1 XVR Video Recorder multiple CCTV standard management (HDCVI / AHD / HDTVI / PAL / IP) with resolution up to 4K ULTRA-HD UHD @8.0 Megapixel and AI-Coding / H.265 + video compression. 1 HDMI (up to 4k), 1 VGA, 2 USB, RS485, support for 1 HDD SATA 3.5" Audio / Video (max 10TB). Video Analysis (IVS) / AI Technology - Artificial Intelligence / Connection to POS / Perimeter Protection - SMD Plus / Smart Search / Smart Fan / Coax. Audio. / Alarm 16 (input) - 3 (output) / Cloud P2P.

XVR is the most effective solution to upgrade all old CCTV video surveillance systems, as it allows to integrate all new analog CCTV standards "HDCVI/HDTVI/AHD" in high definition, giving the possibility to install cameras even at long distances (800-1000M) using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. Video recording is processed by a new video compression system identified as AI-Coding. Compared to H.265, the AI ​​codec can reduce up to 50% in bit rate and storage requirements without loss of decoding compatibility, providing clear details of objects, people and vehicles in the recording files.

WizSense is Dahua's revolutionary series of solutions powered by AI technologies such as independent chips and deep learning algorithms. WizSense devices accurately distinguish human and vehicle figures in the scene, focusing on the real targets of interest to eliminate false alarms and raise the level of intelligence. WizSense is based on AI chips and deep learning algorithm. It provides various functions that realize accurate alarms for people and vehicles, as well as rapid target search, maximizing resources to increase overall efficiency. It offers easy configuration, especially for SMD Plus which can be enabled with a single button. It facilitates customers' daily work and also empowers them to make better business decisions.

SMD Plus Technology, is the new evolutionary stage of Smart Motion Detection, a function that allows the XVR to distinguish human silhouettes and moving vehicles by effectively filtering insects, animals, rain, lights and foliage movement. SMD Plus uses an independent AI chip with deep-learning technology that gives it 95% accuracy. This video recorder supports Artificial Intelligence functions!

Thanks to this technology, Dahua guarantees private individuals and installers a simple, low-cost installation with surprising results and added value in the field of video surveillance. Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Specifications

• Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@ 8Mpx (Max. 16 IP - 128Mbps) ONVIF 16.12, CGI Conformant
• Supported HDCVI resolutions: On all channels 4K@(1fps-7fps); 6MP/5MP@(1fps-10fps); 4K-N/4MP/3MP@(1fps-15fps); 4M-N/1080P/720P/960H/D1/CIF@(1fps-25/30fps);
• AHD resolution supported: On all channels 4K@(1fps-7fps); 5MP@(1fps-12fps); 4K-N/4MP/3MP@(1fps-15fps); 4M-N/1080P/720P/960H/D1/CIF@(1fps-25/30fps);
• Supported HD-TVI resolutions: On all channels 4K@(1fps-7fps); 5MP@(1fps-12fps); 4K-N/4MP/3MP@(1fps-15fps); 4M-N/1080P/720P/960H/D1/CIF@(1fps-25/30fps);
• Video signal transmission over long distances (800-1100M), using coaxial cable.
• Management from XVR via coax cable. OSD menu and PTZ movement of cameras.
• AI-Coding/H.265+/H.265/H.264+/H.264 dual-stream video compression.
• HDMI (4K) / VGA simultaneous video output
• 1/4/8/9/16 channels (IP extension not active) or 1/4/8/9/16/25/36 (IP extension active), GRID interface and smart search
• Dahua PTZ Dome Camera 3D Intelligent Positioning - RS485 Port for Classic Analog PTZ.
• Supports 16 Inputs + 1 RCA Audio Output. Microphone input and output capability (Two-way talk).
• Supports 16 audio inputs (BNC) via coaxial cable, HD-CVI only.
• Support 16 inputs + 3 relay alarm outputs.
• Supports 1 SATA HDD up to 10TB, 2 UBS ports (1xUSB 2.0, 1xUSB 3.0)
• Multiple network monitoring: Web viewer, CMS (DSS / Smart PSS) Smartphone (DMSS).
• New simplified and intelligent GUI (HDCVI 5.0 version); with Smart Fan / Coax. Audio / AI / Perimeter Protection and SMD Plus functions
• Support and program AI functions: SMD Plus perimeter protection, Metadata, Face recognition, AI search, False Alarm FIlter, Unknown Mode, Face Management Database.
• Support and programming of SMART & Video analytics IVS functions: Tripwire, Intrusion, Abandoned/Missing, Face Detection. (Crossing lines | Intrusion in area | Abandoned object | Face detection).
• AI & IVS function programming on channels - 2Ch perimeter protection channels with up to 10 IVS rules for each channel - 2Ch face recognition channels (analog cameras only), up to 12 photos processed per second; up to 8 face photos searchable at the same time; up to 20 face databases with 20,000 face images in total.
• Possibility to connect POS devices, obtaining all the information overlayed on the channel. Possibility to search POS by date or transaction.
• Easy setup P2P QR scan with dedicated Dahua Cloud service.
• ONVIF Compliant Onvif Version 16.12, CGI Conformant
