Hybrid DVR 5in1 AHD / HD-CVI / HD-TVI / CVBS / TCP-IP | APTI-XB0801-S33

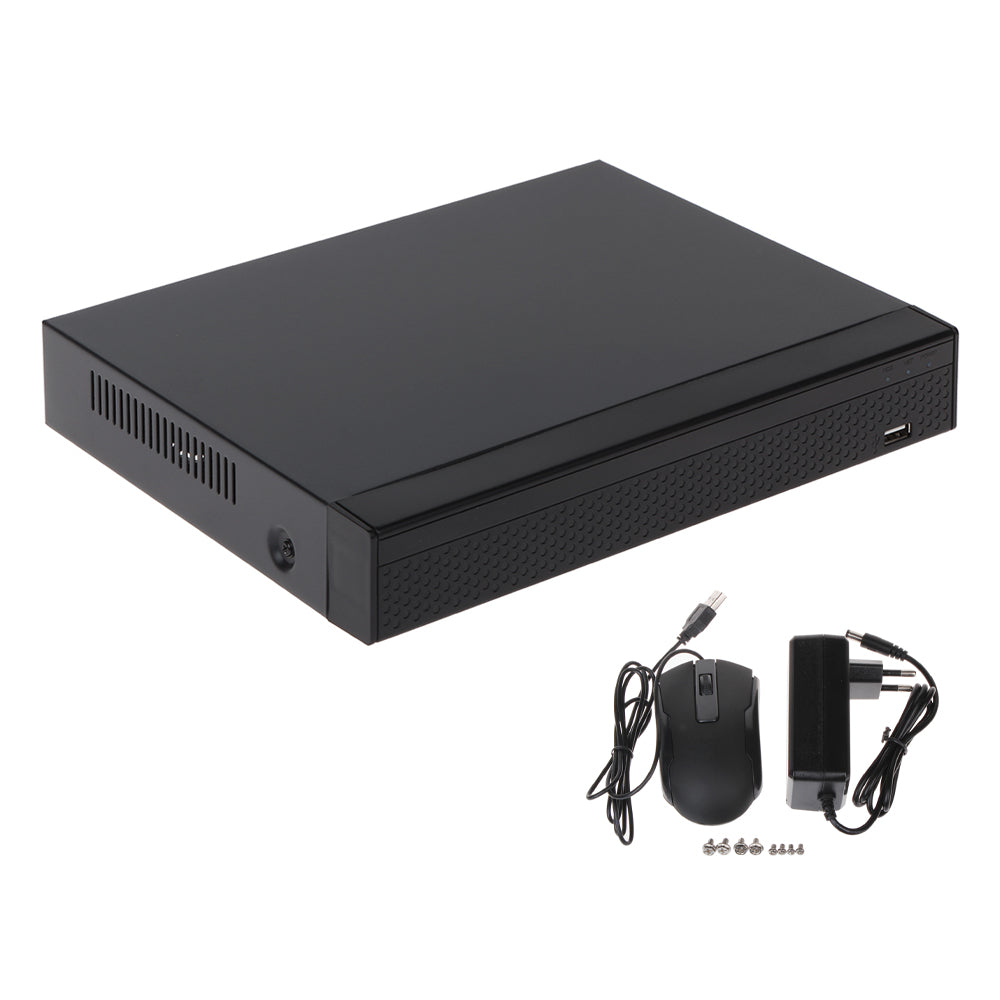

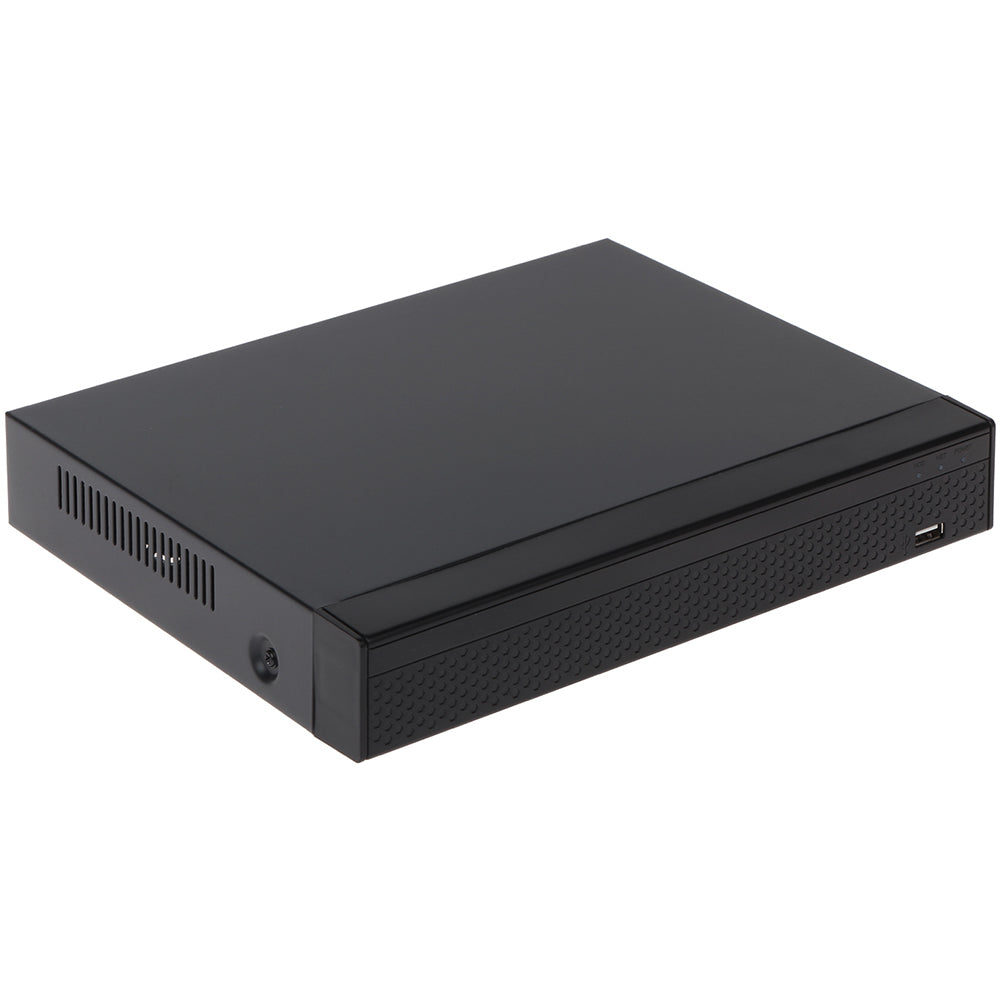

APTI-XB0801-S33 XVR digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional tool used in surveillance systems.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings.

Note! APTI-XBxxxx series recorders are supported by the new BitVision and IVMS320 applications. The device does not support the FREEIP application.

Specifications

• Standard: AHD, HD-CVI, HD-TVI, CVBS, TCP/IP

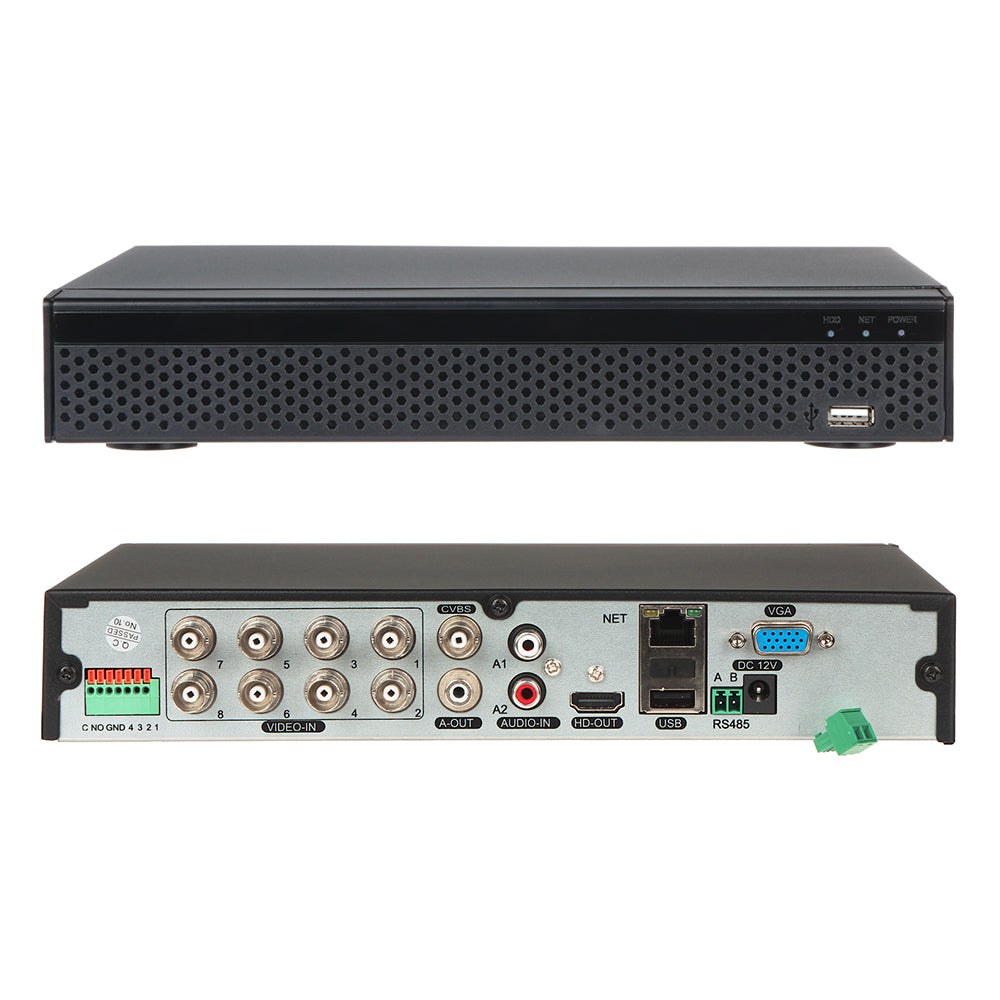

• Video inputs: 8 units BNC
• Video Outputs: 1x HDMI; 1x VGA; 1x CVBS
• Audio inputs: 2 units CINCH
• Audio outputs: 1 unit CINCH
• Image Compression Method: H.265+ / H.265 / H.264+ / H.264
• Recorded image resolutions: AHD / HD-CVI / HD-TVI 5M-N - 1296 x 1944 px, 4M-N - 1280 x 1440 px, 3M-N - 1024 x 1536 px, 1080N - 960 x 1080 px, 720p - 1280 x 720 px; HD-CVI 4M-N - 1280 x 1440 px, 1080N 960 x 1080 px, 720p 1280 x 720 px; CVBS 960H - 960 x 576 px; IP max. 5 Mpx - 2592 x 1944 px
• Recording speed adjustment: 5Mpx IP @ 1...25 fps, 5M-N @ 1...6 fps, 4M-N @ 1...8 fps, 3M-N @ 1...10 fps, 1080N @ 1...15 fps, 720p @ 1...15 fps, 960H @ 1...25 fps - to be assigned to each channel
• Operation Mode: 8 x AHD / HD-CVI / HD-TVI / CVBS; 2 x AHD / HD-CVI / HD-TVI / CVBS + 7 x IP; 4 x AHD / HD-CVI / HD-TVI / CVBS + 5 x IP; 6 x AHD / HD-CVI / HD-TVI / CVBS + 3 x IP; 12 x IP - All modes allow any combination of AHD, HD-CVI, HD-TVI, CVBS cameras
• Recording Mode: Motion Detection, Schedule
• Supported Hard Drives: 1 x 8TB SATA; Hard Drive Not Included
• Backup copy storage on external devices: Storage of recordings in (.avi) format on USB drives (pendrives)
• Recording Search and Playback: Search for recordings on the timeline or file list; Playback: forward, backward, fast mode, slow mode; Simultaneous playback of recordings from up to 8 cameras
• Network Functions: Client software (iVMS320): live preview, playback and recording backup; IE browser: live preview, playback and recording backup, recorder parameter configuration
• Mobile Access: Port: 6000 or Cloud Access. Android: Free BitVision App, Android: Free iVMS320 App; iOS (iPhone): Free BitVision App, iOS: Free iVMS320 App
• Default IP address: 192.168.1.88
• Default administrator username / default password: admin / 12345
• Browser access ports: 80, 5000, 554
• PC application access ports: 80, 5000, 554
• Access ports via mobile application: 80, 5000, 6000
• Alarm inputs / outputs: 4 / 1
• PTZ Control: RS-485 Interface: Pelco-D, Pelco-P
• Motion detection: Screen division into zones: 22 x 18 detection fields
• USB: 2 USB 2.0 drives

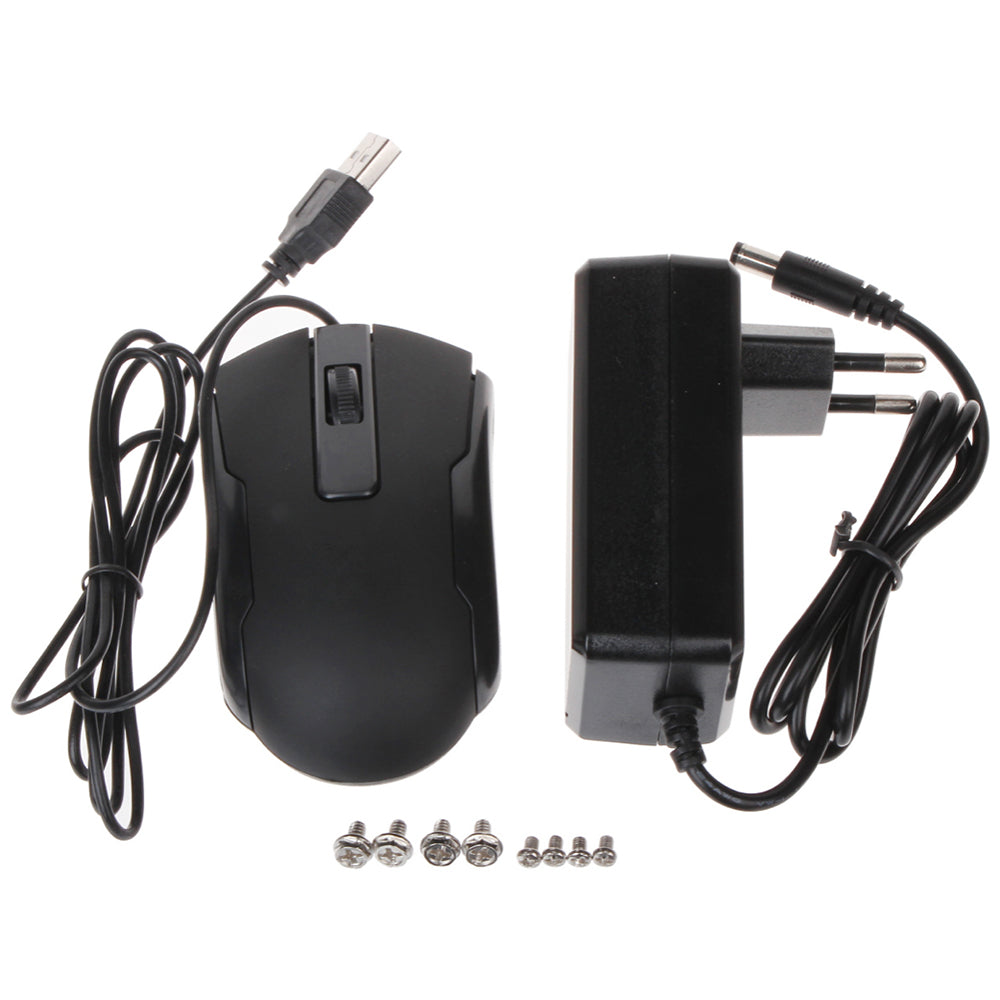

• Mouse Support: Yes
• IR Remote Control Supplied: No
• Power supply: 12 V DC / 2 A (power supply included)
• Color: Black
• Weight: 0.76 kg
• Dimensions: 260 x 226 x 46 mm
• Supported languages: Italian, Polish, English, Bulgarian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Turkish, Hungarian
• Country of origin: China
• Manufacturer / Brand: APTI
• Warranty: 2 years
