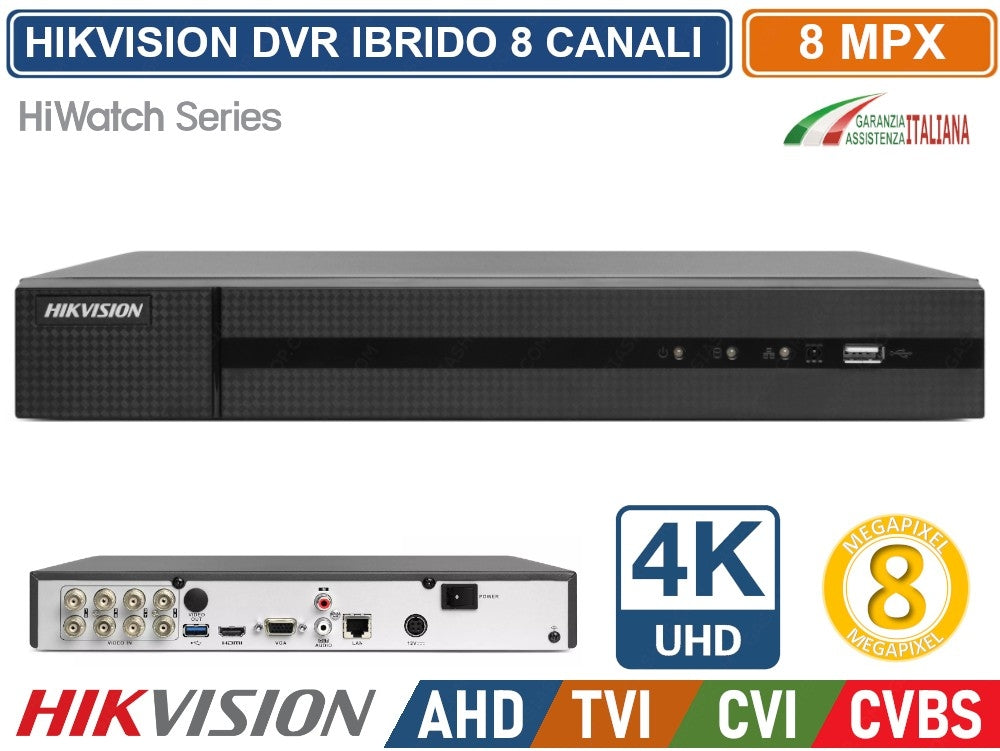

5in1 DVR 8 channels H.265+ 8MP 4K with 2 TB Hard Disk | Hikvision HWD-7100MH-G2

Main features

Video input and transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Input for IP cameras up to 8/16-ch 8 MP for HWD-7104 / 7108MH-G2
• 8MP / 5MP / 4MP HDTVI video input and live view
• Defog function enabled for supported analog cameras
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and recording

• H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 encoding for main stream and H.265 / H.264 for sub-stream of analog cameras
• H.265+/H.265/H.264+/H.264 for IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Recording at up to 8MP resolution

Video output

• Simultaneous HDMI/VGA output
• HDMI output with resolution up to 4K (3840 × 2160)

Storage and playback

• 1 SATA interface (up to 10TB capacity per HDD) - 2TB HDD included
• 4/8-ch synchronous playback
• Smart search for efficient playback
• Support third-party cloud storage (Dropbox / Google Drive / Microsoft OneDrive)

Smart Functions

• Supports multiple VCA (Video Content Analytics) events for analog cameras and smart IP cameras
• Support line crossing detection and all-channel intrusion detection and 2-channel sudden scene change detection
• VCA information overlay in live view and smart playback
• VQD (Video Quality Diagnostics)

Networking

• Hik-Connect and DDNS (Dynamic Domain Name System) for easy network management
• 1 x RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Ethernet interface for HWD-7108MH-G2
• Configurable outgoing bandwidth limit

Technical specifications

Video/Audio input
Video Compression: H.265+/H.265/H.264+/H.264
Analog Video Inputs: 8 channels
HDTVI input: 8MP, 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
AHD input: 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input: 4MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input: PAL/NTSC
IP video input: 4 channels
Audio compression: G.711u

Video/Audio output
HDMI/VGA output: VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Resolution: 8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Main stream Frame rate: 8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream Frame Rate: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bitrate: 32 Kbps to 10 Mbps
Audio output: 1 channel, RCA (Linear, 1 KΩ)
Audio Bitrate: 64Kbps
Dual stream: Supported
Stream Type: Video, Video & Audio
Synchro playback: 4 channels

Network Management
Remote connections: 32
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard disk
SATA Interface: 1 SATA interface (2TB Hard Disk supplied)
Hard Disk Capacity: Up to 8TB

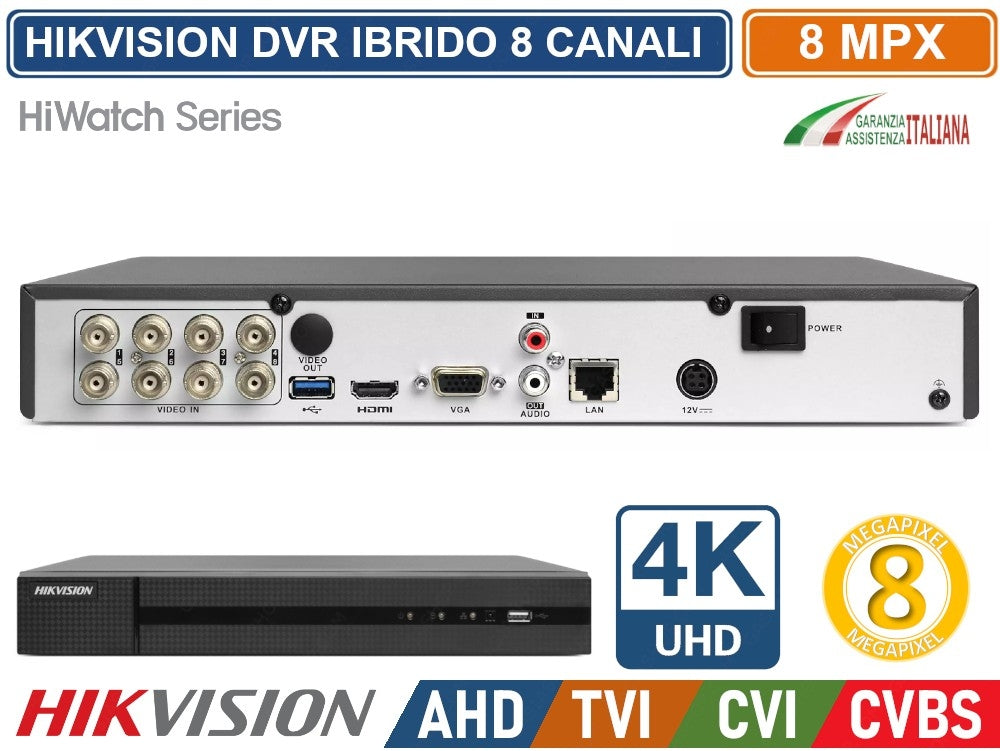

External interface
Bidirectional audio input: 1 channel, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Network interface: 1, RJ45 10M/100M/1000M self-adaptive
USB: 2 × USB 2.0

General
Power supply: 12 VDC
Power consumption (without HDD) ≤ 20 W
Operating temperature: -10 ºC to +55 ºC (+14 ºF to +131 ºF)
Humidity: 10% to 90%
Dimensions: 315 × 242 × 45 mm
Weight (without HDD) ≤1 kg
