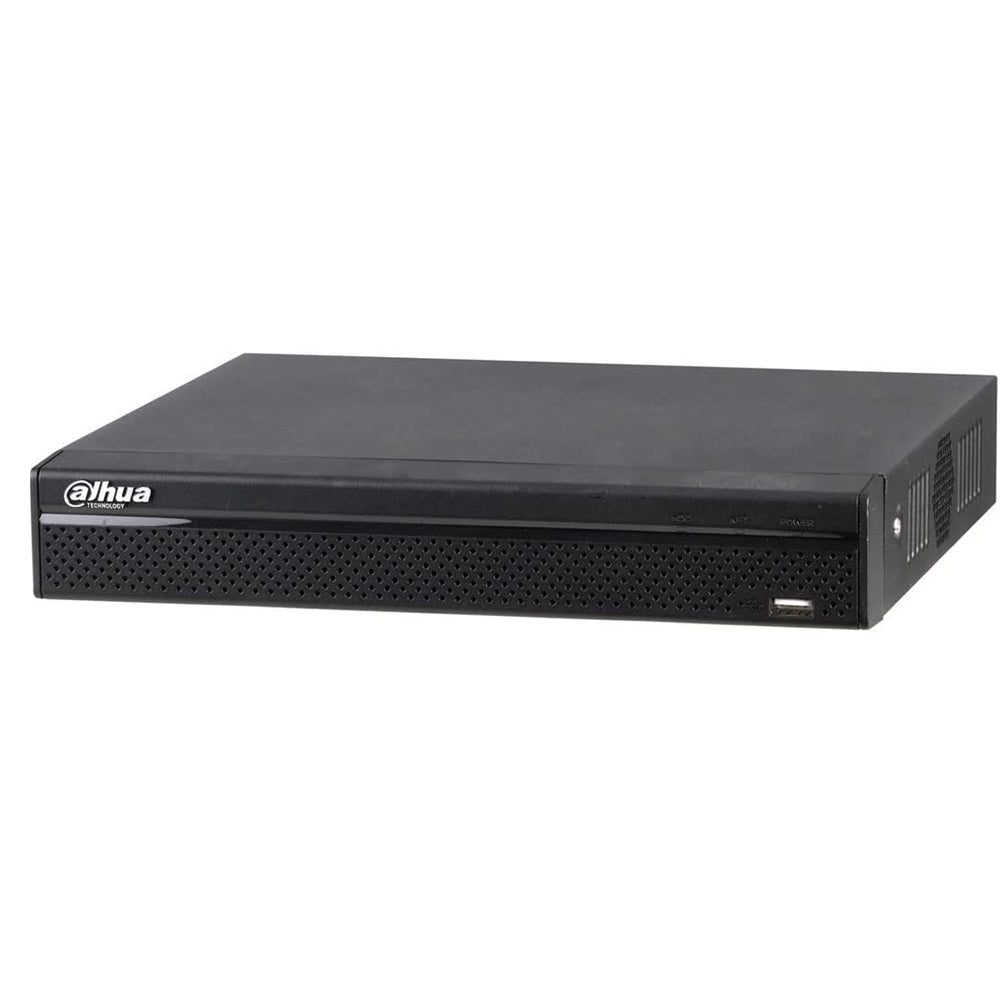

DVR 4 Channels Dahua Hybrid Cloud IP CVI TVI CVBS Full HD 5 Mpx HD 1 TB

Penta-hybrid DVR that supports up to 4 analog, HDCVI, TVI, AHD and/or IP cameras. In addition, 2 extra IP cameras can be added.

The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.

With built-in intelligent video analytics, XVR has the ability to detect and analyze moving objects for better video surveillance. XVR provides optional standard edge intelligence that enables multi-object behavior detection such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.

System

• Main processor Integrated processor
• Embedded LINUX operating system
• Video and audio

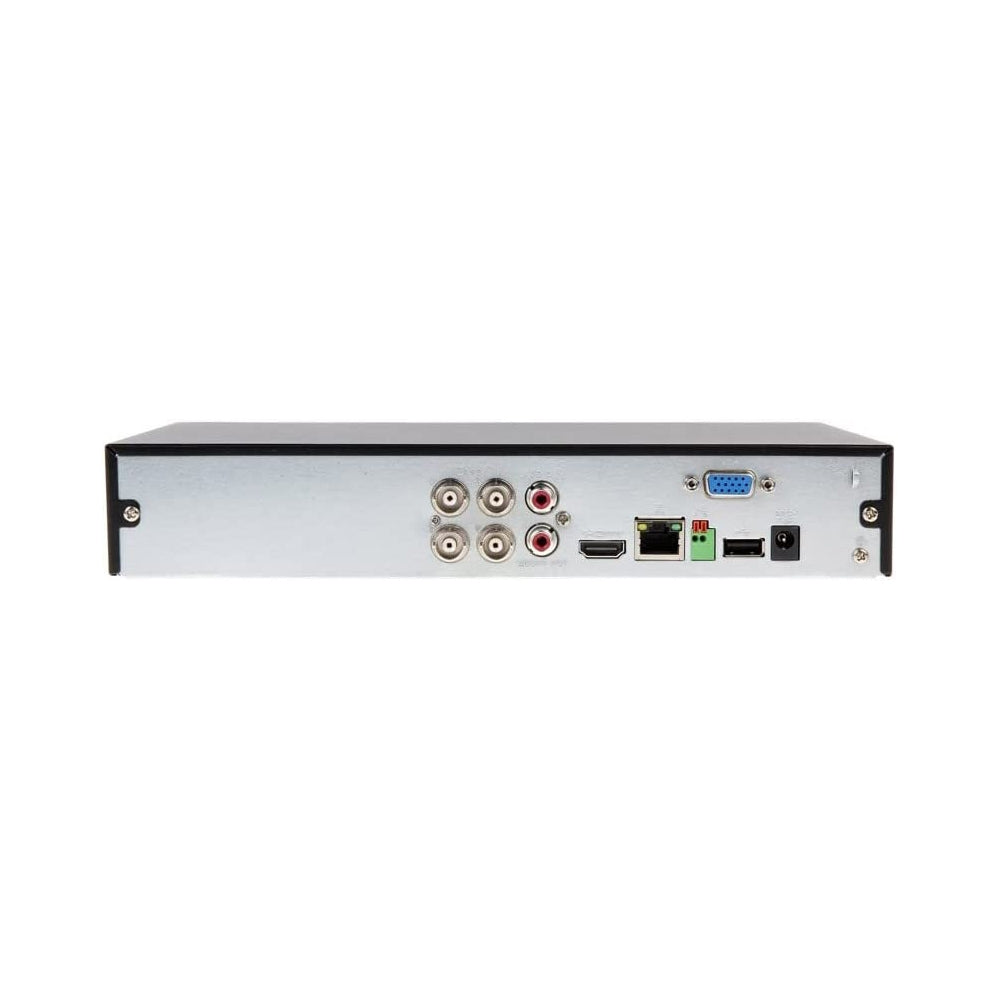

• 4-channel analog camera input, BNC
• HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• CVBS PAL / NTSC Camera
• 4+2 channel IP camera input, each channel up to 6MP
• Audio input/output 1/1, RCA
• Two-way conversation Reuse audio input/output, RCA

Registration

• Compression H.265 + / H.265 / H.264 + / H.264
• Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
• Recording speed
• Main stream: 5M-N (1 ~ 10fps), 4M-N / 1080P (1 ~ 15fps), 1080N / 720P / 960H / D1 / CIF (1 ~ 25 / 30fps)
• Sub-Flow: D1/CIF (1~15fps)
• Bit rate 32 Kbps ~ 6144 Kbps per channel
• Manual Recording Mode, Schedule (General, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Recording interval 1~60min(default:60min), Pre-record:1~30sec, Postrecord:10~300sec
• Audio compression AAC (1st channel only), G.711A, G.711U, PCM
• Audio sampling rate 8KHz, 16 bit per channel
• Audio transmission rate 64 Kbps per channel

Display

• Interface 1 HDMI, 1 VGA
• Resolution 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen display When IP extension mode is not enabled: 1/4
• When IP extension mode is enabled: 1/4/6
• Camera Title OSD, Time, Video Loss, Camera Lock, Motion Detection, Recording

Net

• Interface 1 RJ-45 port (100M)
• Network function
• HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP lookup (support Dahua IP camera, DVR, NVS, etc.)
• Max. User Access 128 users
• Smart Phone iPhone, iPad, Android
• ONVIF 16.12 interoperability, CGI compliant

Video detection and alarm

• Enable event recording, PTZ, Tour, Video push, Email, FTP, Snapshot, Buzzer and screen prompts
• Motion Detection Video Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering & Diagnosis
• Alarm input N/A
• N/A Relay Output
• Playback and backup
• Reproduction 1/4
• Time/Date, Alarm, MD and Exact Search (accurate to the second) search modes

Playback function

• Play, Pause, Stop, Rewind, Fast Play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Select, Digital Zoom
• Backup Mode USB Device / Network

Conservation

• Internal SATA HDD port 1, up to 6TB capacity
• eSATA N/A

Auxiliary interface

• USB 2 USB 2.0
• RS232 N/A
• RS485 1 port, for PTZ control

Electric

• Power supply DC12V / 1.5A
• Power consumption (without HDD) <10W.
