Dvr 4 Canali Ahd Hikvision 4 Mpx 6104M Hd 500 Gb App Cellulare
Dvr 4 Canali Ahd Hikvision 4 Mpx 6104M Hd 500 Gb App Cellulare
  • DVR NVR XVR
  • NVR HIKVISION

SKU: HWD-6104MH-G_500GB

DVR 4 Channels Ahd Hikvision 4 Mpx 6104M HD 500 Gb Mobile App

Prezzo regolare
€96,00
Prezzo di vendita
€96,00
Prezzo regolare
€150,00
Tasse incluse
Free shipping
Dedicated assistance
Payment by installments
Mark

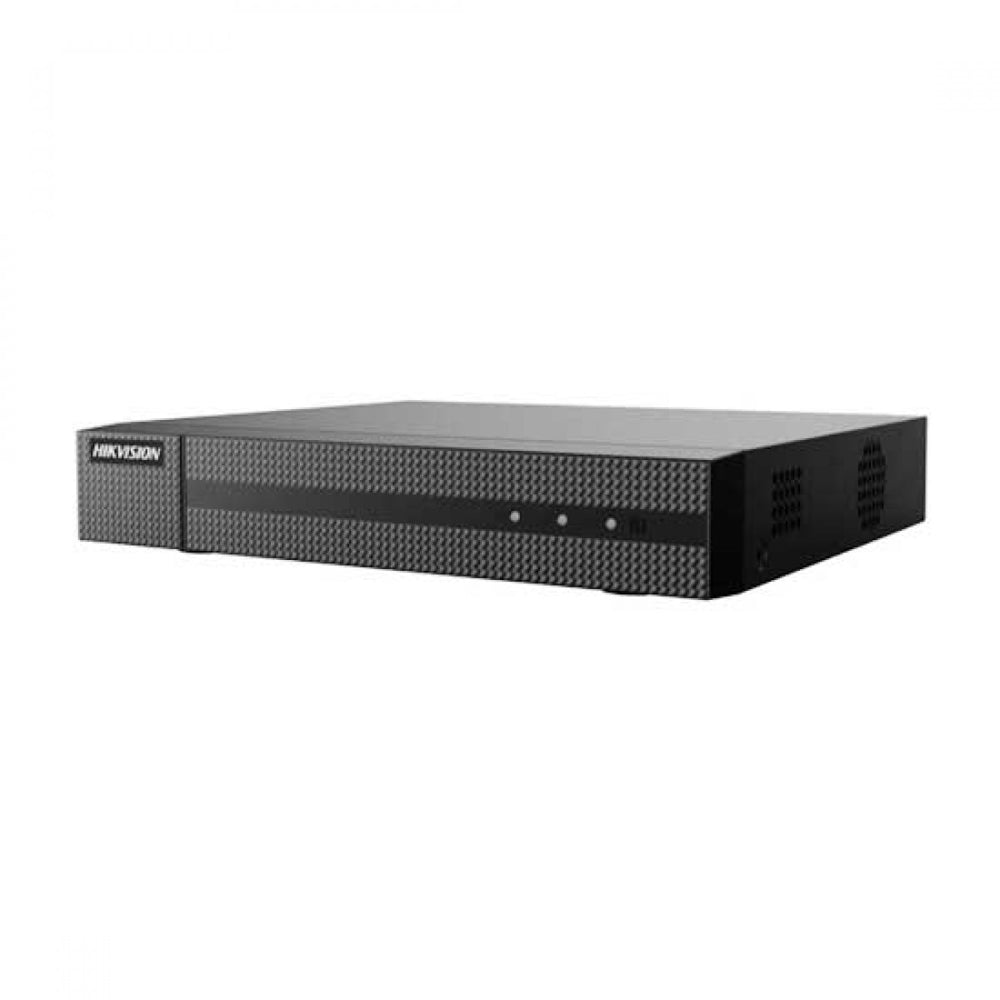

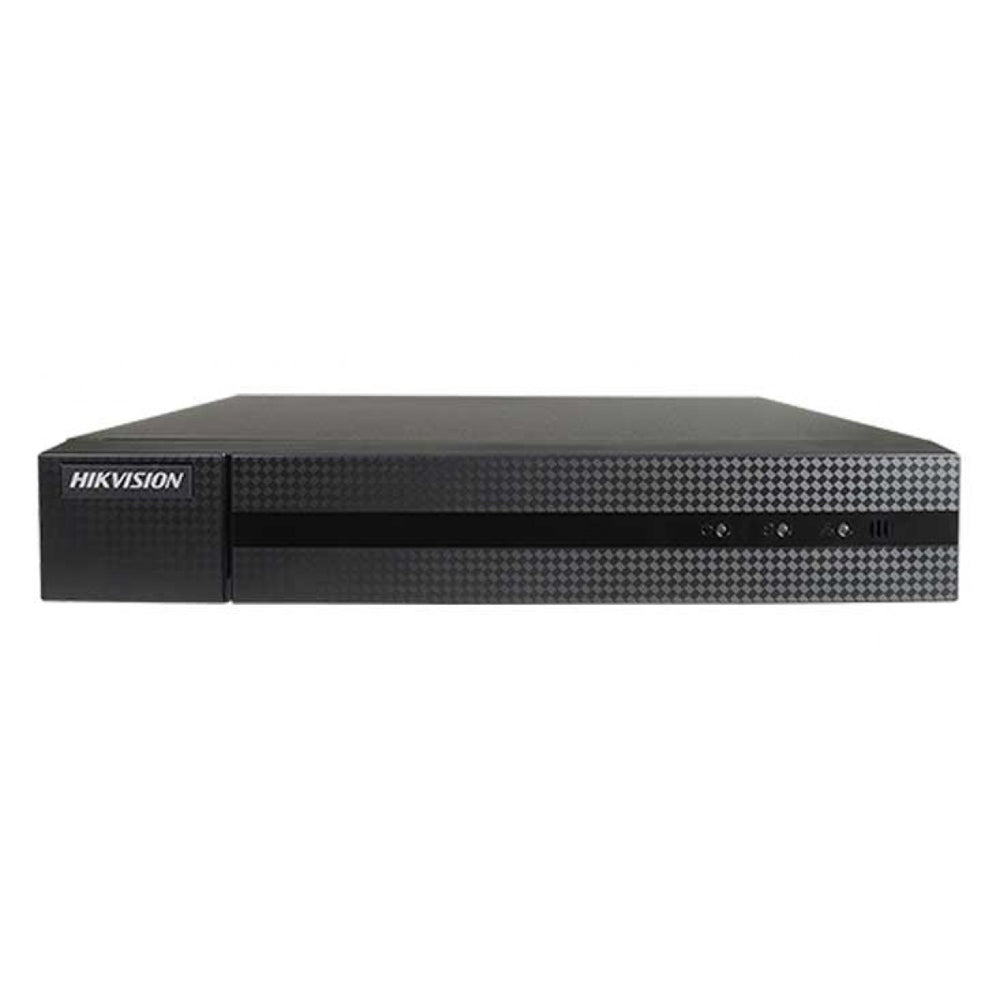

HIKVISION HWD-6104MH-G 5in1 video recorder + 500GB HDD

Hikvision 4-channel analog video recorder sku. HWD-6104MH-G2 Hiwatch series turbo Ultra HD 2K 4Mpx with 5IN1 hybrid technology multiple management CCTV standards: analog CVBS / HDCVI / HDTVI / AHD + IP @ 4Mpx . Ultra HD resolution in recording on all channels up to 4Mpx @ 8fps or 4M-N @ 15fps + 1 IP Camera.

Thanks to the hybrid technology of the video recorder, it is possible to update all old video surveillance systems, giving the possibility of installing high resolution cameras using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. Video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Main features

  • Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@4Mpx, Onvif Standard
  • Supported HD-TVI resolutions: 4Mpx@8fps, 4M-N@15fps, 1080P@25/30fps, 720P@25/30fps.
  • Supported AHD resolution 1080P@25/30fps, 1080N@25/30fps, 720P@25/30fps.
  • HDCVI resolution supported: 1080P@25/30fps, 1080N@25/30fps, 720P@25/30fps.
  • Supported CVBS resolution: 960H, 700TVL@25/30fps.
  • Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
  • Recording (REC & Live) on all channels in 2k ultra hd resolution 4Mpx@8fps / 4M-N@15fps.
  • H.265+/H.265/H.264+/H.264 dual-stream video compression.
  • Simultaneous HDMI/VGA video output.
  • Supports 1 SATA HDD up to 6TB ( 500Gb HDD included ), 2 USB2.0
  • Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
  • Easy setup P2P QR scan with dedicated Hikvision Cloud service.
  • Multilingual menu, including Italian.

Technical specifications

SKU HWD-6104MH-G2
Hikvision Brand
HiWatch Series Range
HDTVI / HDCVI / AHD / CVBS / IP Video Formats
Video Inputs 4 Channels BNC, (HDTVI / HDCVI / AHD / CVBS)
Hybrid Configuration 4 BNC channels and 1 IP channel (up to 4Mpx)
Video Output 1 HDMI Full HD, 1 VGA
Two-way Audio 1 input / 1 RCA output
Compression Audio/Video H.265+/H.265/H.264+/H.264 /G.711u
Display Resolution 1920x1080, 1280x1024, 1280x720, 1024x768
Total bandwidth 32 Kbps at 4 Mbps
Recording Resolution 4 Mpx (HDTVI)/ 4Mpx Lite (HDTVI)/ 3Mpx (HDTVI) / 1080p (HDTVI, HDCVI, AHD)/ 720p (HDTVI, HDCVI, AHD) / WD1 / 4CIF / VGA / CIF
Main Stream 4 MP (1~8 FPS) / 4 MP Lite (1~15 FPS) /1080p / 720p / WD1 / 4CIF / VGA / CIF (1~25 FPS)
Secondary Stream WD1 / 4CIF / 2CIF (1~25 FPS)
Pentaplex Simultaneous Multitasking : Live, Recording, Playback, Backup and Remote Access
Alarms Not available
Recording method Manual, programmed, motion detection
USB Backup (Memory, HDD, CD-RW, DVR-RW) / Network
Internal storage 1 HDD SATA 3.5" of up to 6TB ( 500GB HDD included )
Communication 2 x USB 2.0 (Mouse and backup) / RJ45 10/100 (Ethernet)
Remote Access Web Browser, Smartphone App IVMS 4500 and PC Software IVMS 4200
Power supply DC 12V / 1A
Dimensions / Weight 45 (H) x 260 (W) x 222 (D) mm / 0.8 Kg
