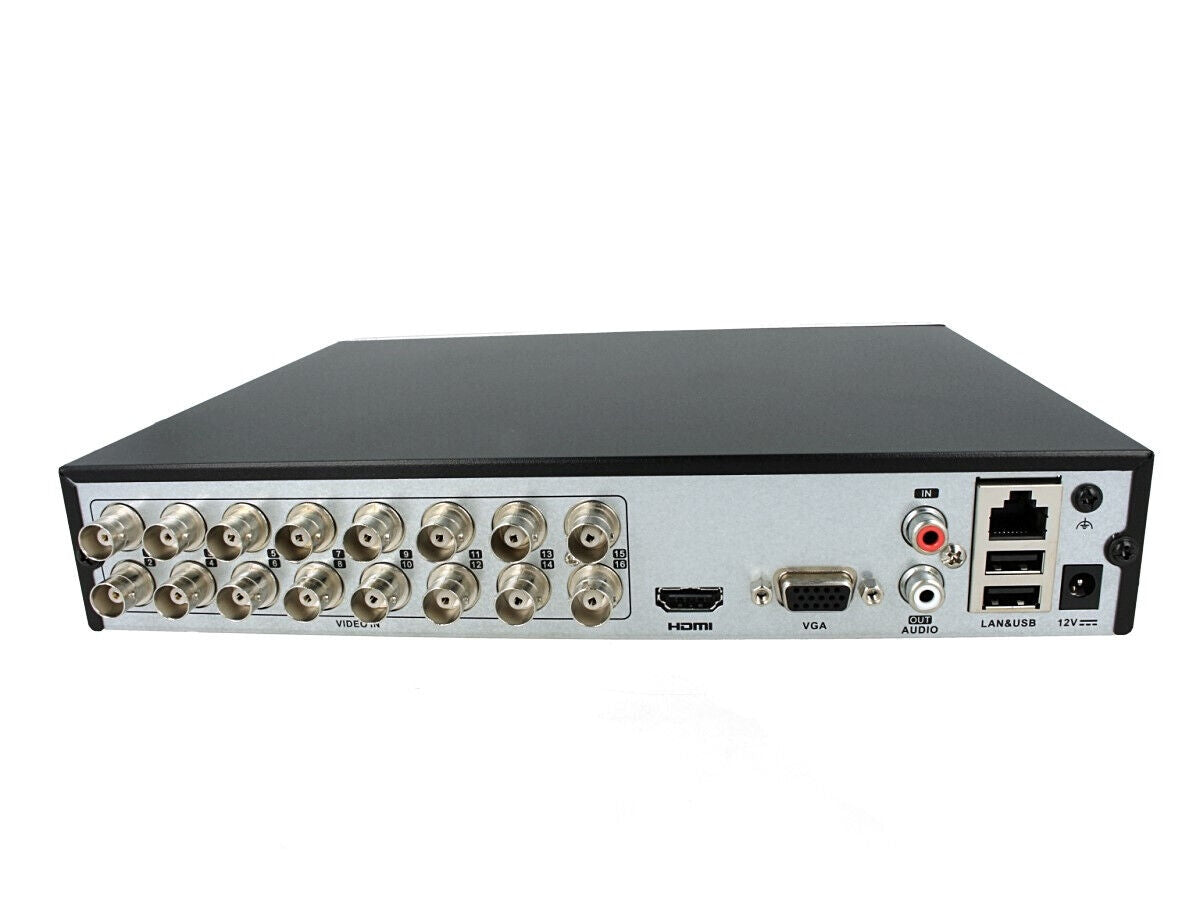

DVR 16 Channels Hikvision Hybrid Cloud 4 Mpx IP Hwd-6116Mh-G4 HD 500Gb

Hikvision 16-channel analog video recorder sku. HWD-6216MH-G4 Hiwatch series turbo Ultra HD 2K 4Mpx with 5IN1 hybrid technology multiple management CCTV standards: analog CVBS / HDCVI / HDTVI / AHD + IP @ 6Mpx. Ultra HD resolution in recording on all channels up to 4Mpx @ 8fps or 4M-N @ 15fps. Thanks to the hybrid technology of the video recorder it is possible to update all old video surveillance systems, giving the possibility of installing cameras at higher resolutions using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. Video recording is processed by a new video compression system identified as H.265 Pro + codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Specifications

• Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@ 6Mpx (Max. 8 IP - 128Mbps total bandwidth) ONVIF , Onvif Standard
• IP camera inputs up to 24 channels (@6MP) - By connecting only IP cameras to the video recorder.
• Supported HD-TVI resolutions: 4Mpx@8fps, 4M-N/1080P/720P@15fps, 1080N/720N/WD1/4CIF@25/30fps.
• AHD resolution supported 4Mpx@8fps, 4M-N/1080P/720P@15fps, 1080N/720N/WD1/4CIF@25/30fps.
• HDCVI resolution supported: 4Mpx@8fps, 4M-N/1080P/720P@15fps, 1080N/720N/WD1/4CIF@25/30fps.
• Supported CVBS resolution: 960H/WD1/4CIF/CIF@25/30fps.
• Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
• Supports 16 audio inputs (BNC) via coaxial cable, HD-TVI only.
• Recording (REC & Live) on all channels in 2k ultra hd resolution 4Mpx@8fps / 4M-N@15fps.
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 dual-stream video compression.
• Simultaneous HDMI (4K) / VGA video output.
• Supports 2 SATA HDD up to 10TB, 2 x USB (front USB 2.0, rear USB 3.0).
• Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
• Easy setup P2P QR scan with dedicated Hikvision Cloud service.
• Multilingual menu, including Italian.
