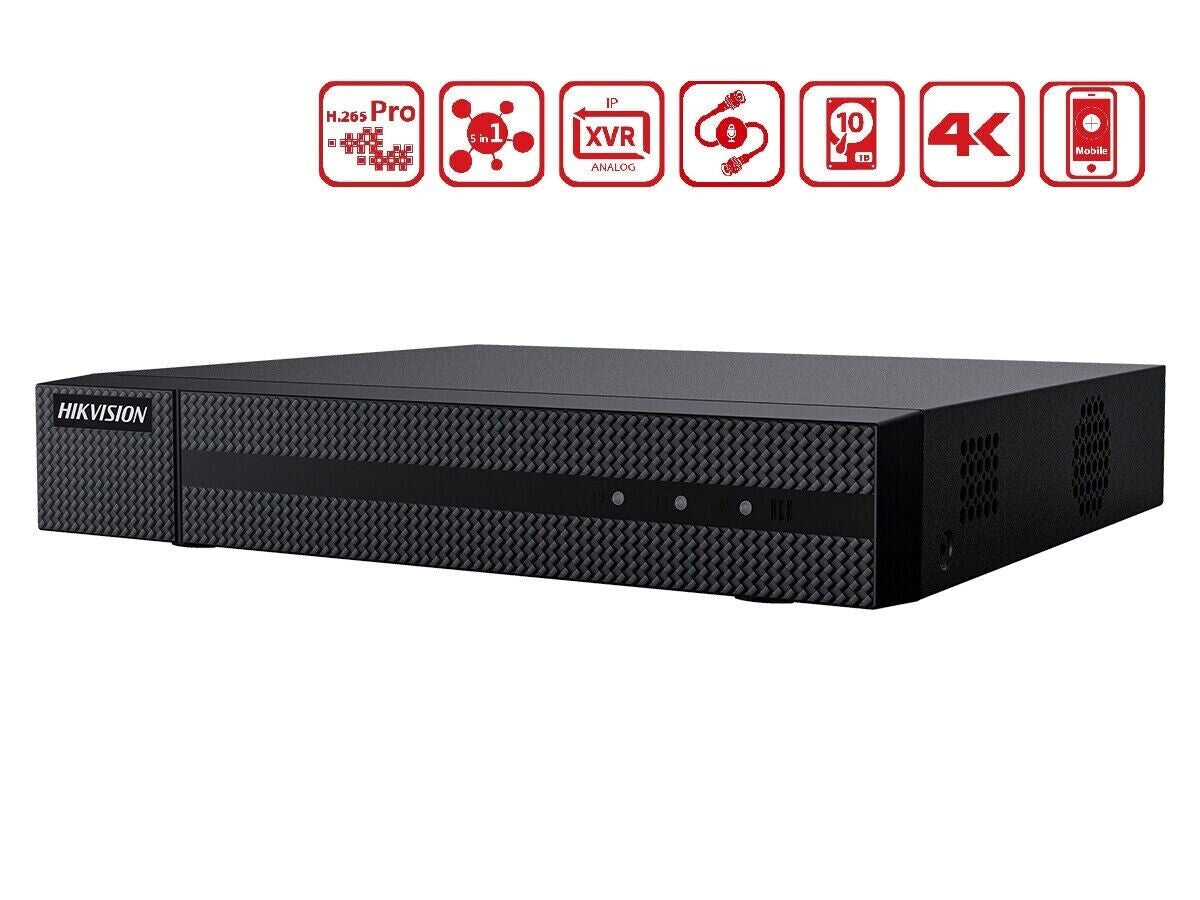

DVR 16 Channels Cloud IP P2P 8Mpx 4K Hikvision HD 2 TB Hwd-7216Mh-G2

Hikvision 16-channel analog video recorder sku. HWD-7216MH-G2 Hiwatch series turbo Ultra HD 4K up to 8Mpx with 5IN1 hybrid technology multiple management CCTV standards: analog CVBS / HDCVI / HDTVI / AHD + IP @ 6Mpx. Ultra HD resolution in recording on all channels up to 8Mpx @ 8fps + 6 IP Camera. Thanks to the hybrid technology of the video recorder it is possible to update all old video surveillance systems, giving the possibility of installing cameras at higher resolutions using the traditional micro coaxial wiring used for the installation of analog CVBS cameras. Video recording is processed by a new video compression system identified as H.265 codec. This technology allows you to save up to 50% on storage space and data traffic consumption in remote viewing, compared to the previous H.264 compression.

The menu is designed to allow anyone, even novice users, to navigate and make changes to the recorder settings. The DVR offers connectivity from any device including apps for Windows, Mac, iPhone and Android.

Video security system ideal for a wide range of applications: from companies to public administrations, from parks to institutional offices, from museums to airports, from villas to small condominiums etc...

Specifications

• Supported CCTV Technological Standards: CVBS/HDCVI/HDTVI/AHD + IP@6Mpx, Onvif Standard
• Supported HD-TVI resolutions: 8Mpx@8fps, 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
• AHD resolution supported: 5Mpx@12fps, 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
• HDCVI resolution supported: 4Mpx@15fps, 3Mpx@18fps,1080P@25/30fps, 720P@25/30fps.
• Supported CVBS resolution: 960H, 700TVL@25/30fps.
• Video signal transmission over long distances (800-1100M), using coaxial or UTP cable.
• Recording (REC & Live) on all channels in 4k ultra hd resolution 8Mpx@8fps
• H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 dual-stream video compression.
• Simultaneous HDMI/VGA video output.

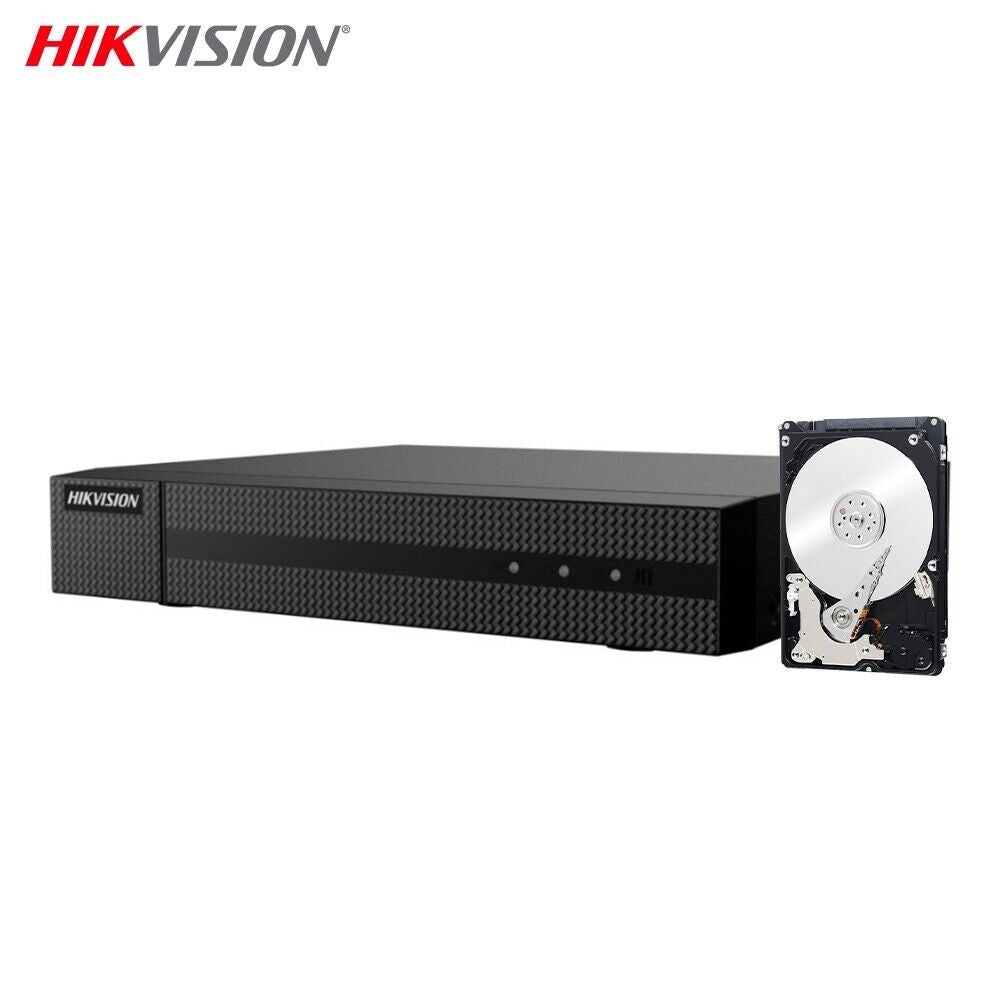

• Supports 2 SATA HDD up to 10TB, 2 USB (Front USB 2.0 port - Rear USB 3.0 port).

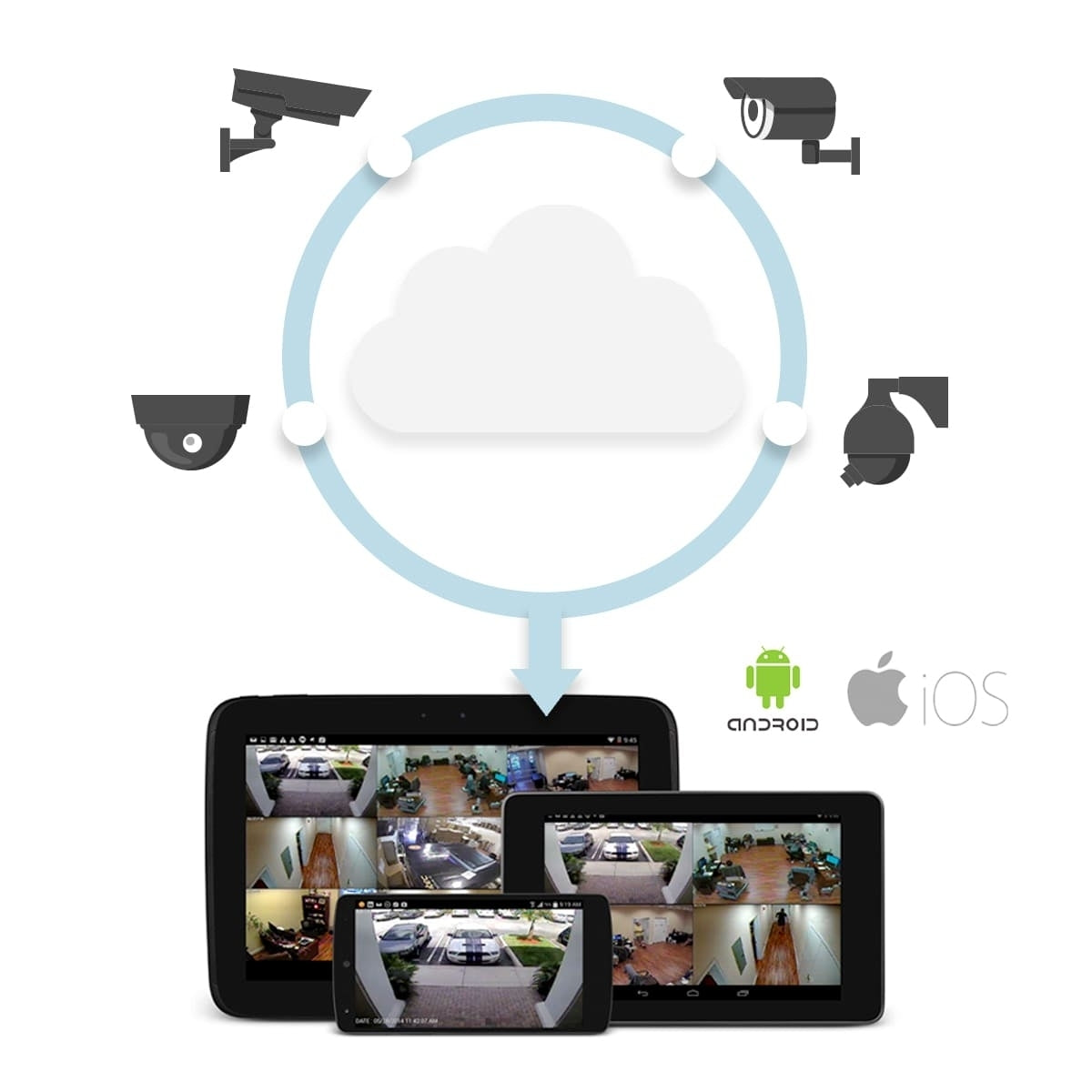

• Multiple network monitoring: Web viewer, CMS, Smartphone through iVMS-4200, Hik-Connect and iVMS-5200 applications
• Easy setup P2P QR scan with dedicated Hikvision Cloud service.
• Multilingual menu, including Italian.
• STANDARD: AHD, HD-CVI, HD-TVI, PAL

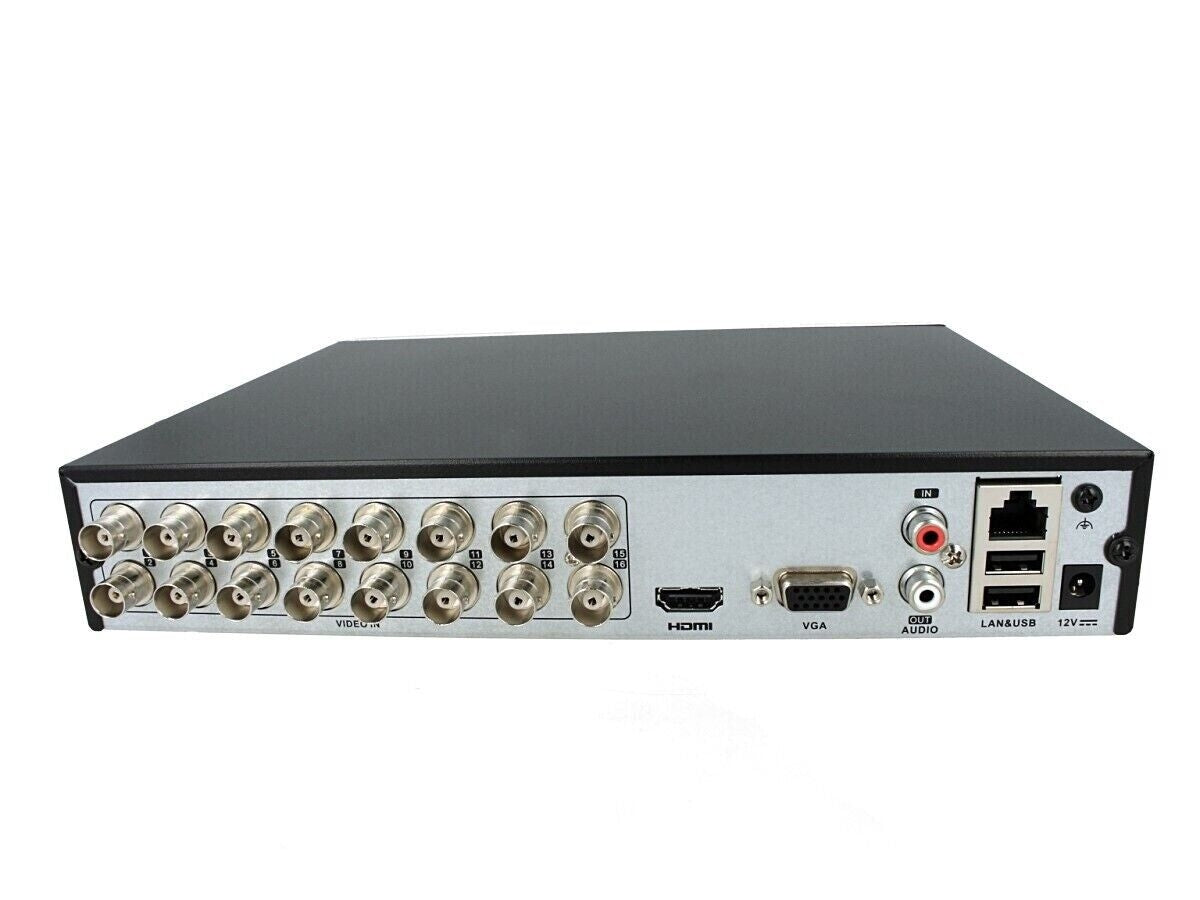

• VIDEO INPUTS: 16 BNC units - HD-TVI / AHD / HD-CVI / CVBS
• VIDEO OUTPUTS:
• 1 HDMI unit
• 1 VGA unit
• AUDIO INPUTS: 1 unit CINCH
• AUDIO OUTPUTS: 1 unit CINCH
• IMAGE COMPRESSION METHOD: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• NUMBER OF COMPRESSION LEVELS: 6
• RECORDED IMAGE RESOLUTIONS:
• 3840 x 2160 - 8Mpx
• 2592 x 1944 - 5Mpx
• 2560 x 1440 - 4Mpx
• 1920 x 1536 - 3Mpx
• 1920 x 1080 - 1080P
• 1280 x 720 - 720p
• 960 x 576 - 960H
• 704 x 576 - 4CIF
• 640 x 480 - VGA
• MAXIMUM OVERALL RECORDING SPEED:
• 128 fps @ 3840 x 2160 px,
• 192 fps @ 2592 x 1944 px,
• 240 fps @ 2560 x 1440 px,
• 288 fps @ 1920 x 1536 px,
• 400 fps @ 1920 x 1080 px,
• 400 fps @ 960 x 1080 px,
• 400 fps @ 1280 x 720 px,
• 400fps @ 960 x 576px
• 400fps @ 704 x 576px
• 400fps @ 640 x 480px
• RECORDING SPEED ADJUSTMENT:
• 1 ..... 8 fps @ 3840 x 2160 px,
• 1 ... 12 fps @ 2592 x 1944 px,
• 1 ... 15 fps @ 2560 x 1440 px,
• 1 ... 25 fps @ 1920 x 1080 px
• 1 ... 25 fps @ 960 x 1080 px
• 1 ... 25 fps @ 1280 x 720 px
• 1 ... 25 fps @ 960 x 576
• 1 ... 25 fps @ 704 x 576
• 1 ... 25 fps @ 640 x 480 px
• to be assigned to each channel
• MODE OF OPERATION:
• 16 x 8Mpx max. 8fps + 8 (6mpx) x IP
• 16 x 5Mpx max. 12 fps + 8 (6mpx) x IP
• 16 x 4Mpx max. 15 fps + 8 (6mpx) x IP
• 16 x 2Mpx max. 25 fps + 8 (6mpx) x IP
• All modes allow any combination of AHD-H, HD-CVI, HD-TVI, CVBS cameras
• RECORDING MODE: Manual, motion detection, schedule
• SUPPORTED HARD DRIVES: 2 x 10TB SATA
• STORING THE BACKUP COPY ON EXTERNAL DEVICES: Storage on USB drives (pendrives)
• SEARCH AND PLAYBACK OF RECORDINGS: Search for recordings on the timeline or file list. Playback: forward, fast mode, slow mode.
• Playback from up to 16 cameras simultaneously
• NETWORK INTERFACE: 1 x RJ-45 - 10/100/1000 Base-T
• NETWORK FUNCTIONS: Client software and IE browser: live preview, recording playback and backup, partial configuration of recorder parameters
• BITRATE: 32Kbps to 10Mbps
• NETWORK PROTOCOLS: TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• MOBILE ACCESS: Port: 8000 or cloud access
• Android: Free iVMS-4500 or Hik-Connect App
• iOS (iPhone): Free iVMS-4500 or Hik-Connect app
• MULTI-OPERATION: Pentaplex
• ALARM INPUTS / OUTPUTS: No
• PTZ CONTROL: Hikvision HD-TVI coax compatible control
• MOTION DETECTION: Screen division into zones: 22 x 18 detection fields
• MOUSE SUPPORT: Yes
• IR REMOTE CONTROL SUPPLIED: No
• POWER SUPPLY: 12 V DC / 3 A (power supply included)
• COLOR: Black
• WEIGHT: 2,000 kg
• DIMENSIONS: 380 x 320 x 45 mm
• SUPPORTED LANGUAGES: English, Bulgarian, Croatian, Czech, Danish, Dutch, Estonian, Greek, Spanish, German, Norwegian, Polish, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Swedish, Turkish, Hungarian, Italian
• MANUFACTURER / BRAND: HIKVISION
