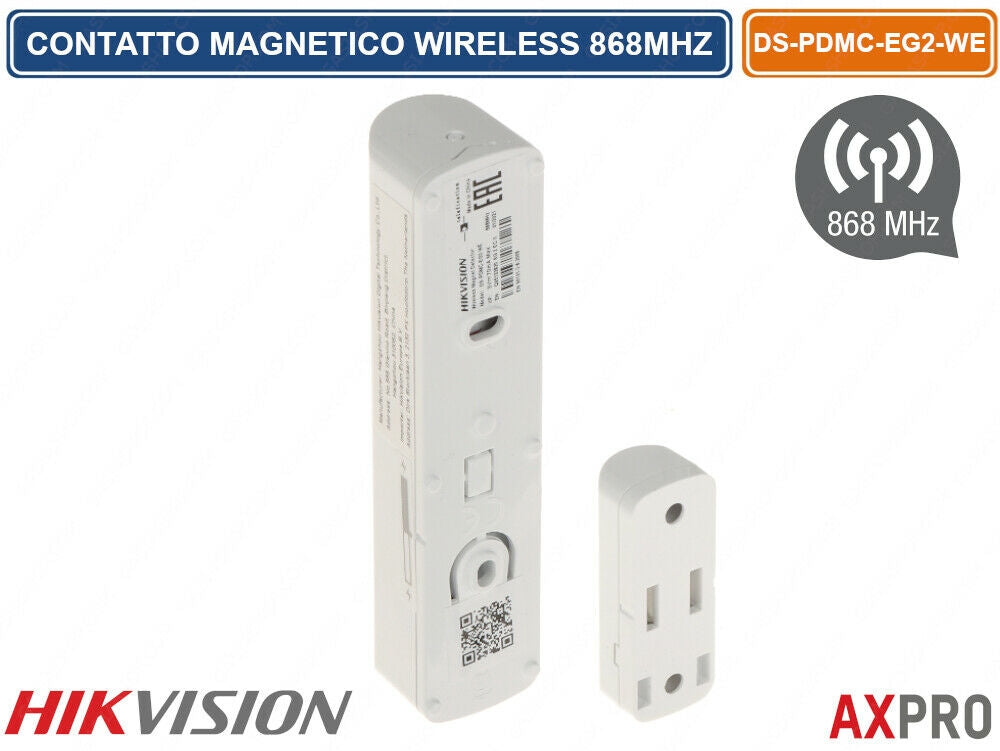

Hikvision Ax Pro Wireless Door and Window Protection Magnetic Sensor Contact

DS-PDMC-EG2-WE Hikvision wireless magnetic contact. Slim design for minimally invasive installation, remotely configurable via app, easy installation.
Tri-X Wireless technology, two-way transmission at 868MHz up to 1.6Km

• Peripheral Characteristics:
• Range : Hikvision Alarm / AX-PRO Series
• Slim design for discreet (unnoticeable) installation
• Fully configurable remotely via App
• Multiple recording methods and easy installation design
• Frequency hopping against interference for reliable transmission

DESCRIPTION

DS-PDMC-EG2-WE AXPro Hikvision wireless magnetic contact. Slim design for minimally invasive installation, remotely configurable via app, easy installation. Tri-X Wireless technology, two-way transmission at 868MHz up to 1.6Km.

• Peripheral Characteristics:
• Range : Hikvision Alarm / AX-PRO Series
• Slim design for discreet (unnoticeable) installation
• Fully configurable remotely via App
• Multiple recording methods and easy installation design
• Frequency hopping against interference for reliable transmission
• Detection method : Contact opening
• Transmission Technology: Tri-X Wireless
• Frequency : 868MHz

• Model DS-PDMC-EG2-WE
• Compatibility: HIKVISION AX PRO
• Detection: Opening a door or window
• Opening distance of reed contacts: ~ 43 mm
• Alarm reporting: Signal to the alarm control unit
• Frequency Range: 868 MHz - Tri-X Wireless
• Radio communication range (in open area): max. 1600 m
• Alarm inputs: -

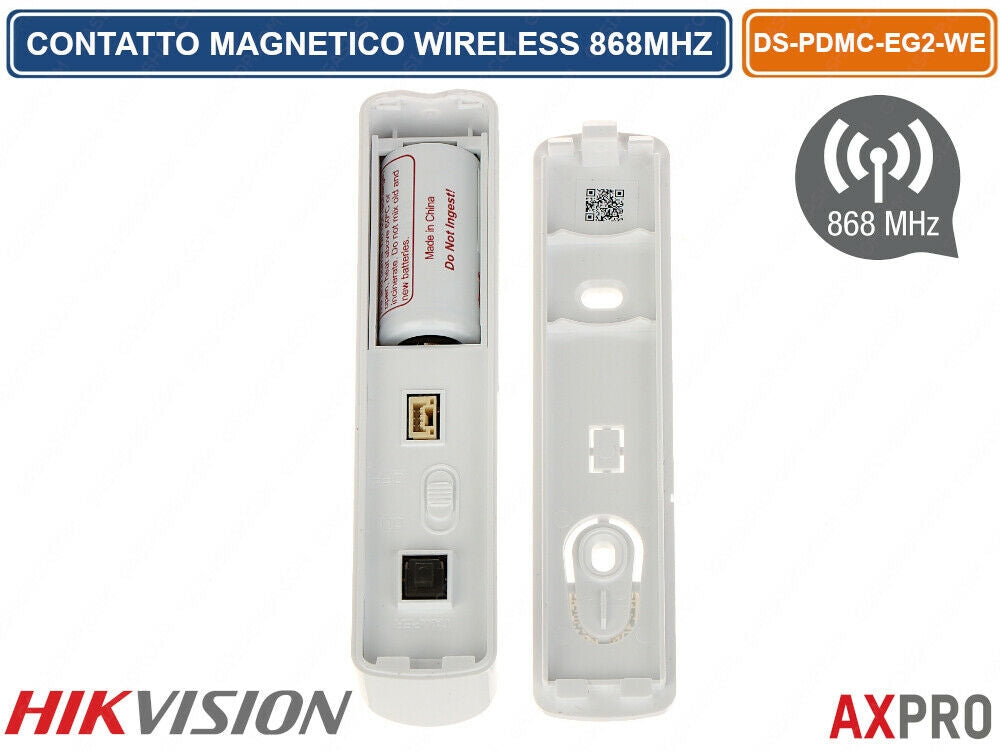

• Battery: 1 x CR2450 3V (included)
• Battery life: ~3 years
• Some features:
• Tamper protection
• Signal indicator
• Transmission Encryption - 128-bit AES Encryption
• Operating temperature: -10 °C ... 55 °C
• Color: White
• Weight:
• 0.048 kg - Transmitter
• 0.012 kg - Magnet
• Dimensions:
• Reed contact: 23 x 103 x 10 mm
• Magnet: 13 x 34 x 11 mm
