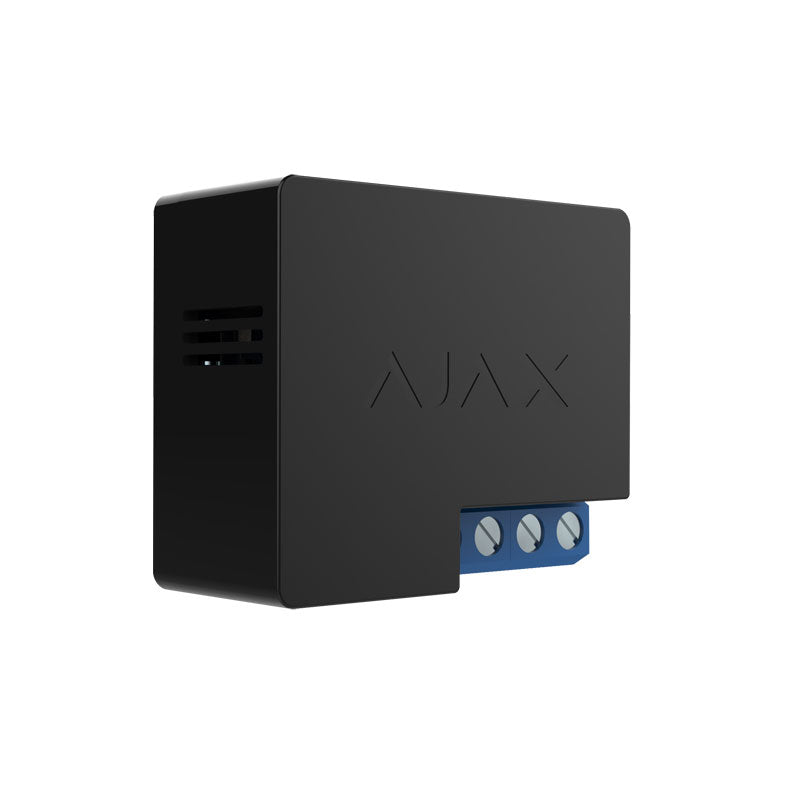

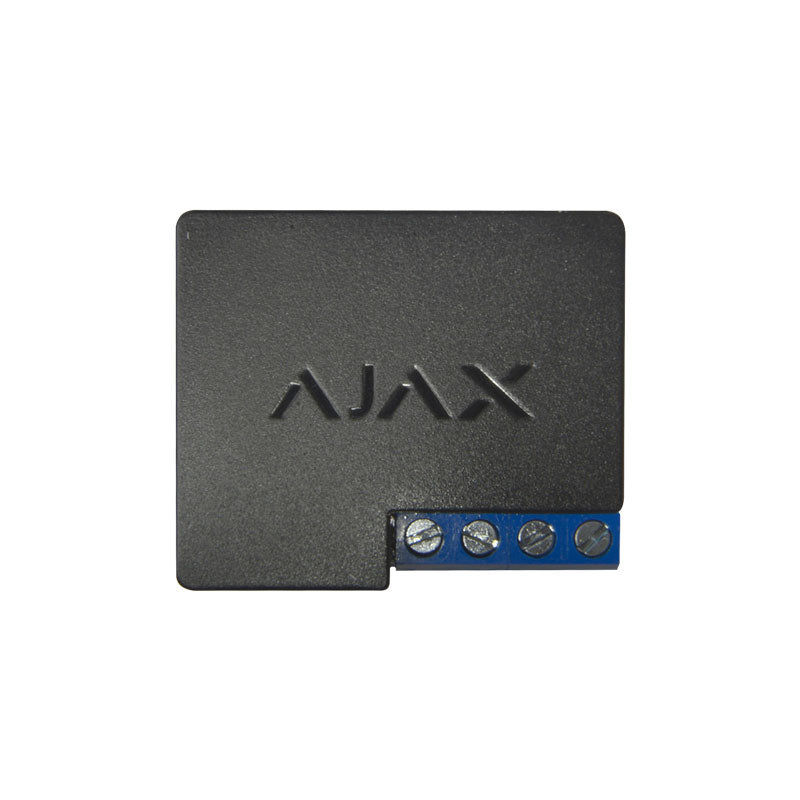

Ajax 38204 Relay Low Power Relay For Remote Control Of Wireless Equipment

Low power relay for remote control of equipment Versatility of configuration and low power consumption make Relay a universal tool for equipment control. The dry contact is not galvanically connected to the power circuit of the device: it can be used in low and high voltage networks. Bistable and pulse modes are available. The relay can be easily powered by a power supply combined with a backup battery.

• Classification: Radio Relay Module
• Device Type: Radio Controlled
• Installation: In electrical panels, junction boxes
• Compatibility: Works only with Ajax hubs and signal repeaters
• Actuating device: Electromagnetic relay
• Overvoltage protection: Max – 36.5V; Min – 6.5V
• Device lifespan: 200,000 Power Ons
• Maximum load current: 5A at 36V DC, 13A at 230V AC
• Maximum overcurrent protection: No
• Maximum protection against overheating: >65°C at the installation location
• Electricity meter function: No
• Check power consumption parameters: Voltage
• Alarm signal receiving time: 0.15s
• Power supply: 7-24V (DC only)
• Operating mode: Pulse – Bistable
• Contact state: Normally open – Normally closed
• Pulse duration: 0.5 – 255 s
• Operating temperature: From 0°С to +64°С
• Operating Humidity: Up to 75%
• Protection class: IP20
• Tamper-proof system: Anti-counterfeit protection, inhibition detection
• Remote setup and testing: +
• Dimensions: 39 x 33 x 18 mm
• Service life: 10 years
